| Frequency Range (-10dB) |
38 Hz – 17 kHz |
| Power Capacity |
500 W continuous program power; 250 W continuous pink noise |
| Transformer Taps |
70V: 150 W, 75 W, 38 W, 19 W
100V: 150 W, 75 W, 38 W
Thru position: 4 ohms nominal |
| Frequency Response (±3dB) |
40 Hz – 16 kHz |
| Maximum SPL (1m) |
Short-term: 123 dB
Long-term: 117 dB |
| Sensitivity |
93 dB, 1W @ 1m (3.3 ft) |
| Coverage Angle |
120° H x 110° V |
| Directivity Factor (Q) |
5.2 dB, averaged 500 Hz to 10 kHz |
| Directivity Index (DI) |
7.1 dB, averaged 500 Hz to 10 kHz |
| Impedance |
4 ohms |
| Crossover Network |
3rd order low-pass LF, 2nd order high-pass/3rd order low-pass MF, 3rd order high-pass HF, plus conjugate shaping circuitry |
| Drivers |
LF: 250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet
MF: 125 mm (5 in) anodized aluminum cone with EPDM rubber (terpolymer of ethylene and propylene) surround, 25 mm (1 in) voice coil on fiberglass former
HF: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround |
| Enclosure |
High Impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold |
| Grille |
Thermoset composite coated steel, WeatherMax multi-layer foam |
| Overload Protection |
SonicGuard full-range power limiting to protect network and transducers |
| Outdoor Capability |
IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. |
| Input Connectors |
Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug. |
| Safety Agency |
Transformer is listed per UL1876 |
| Colors |

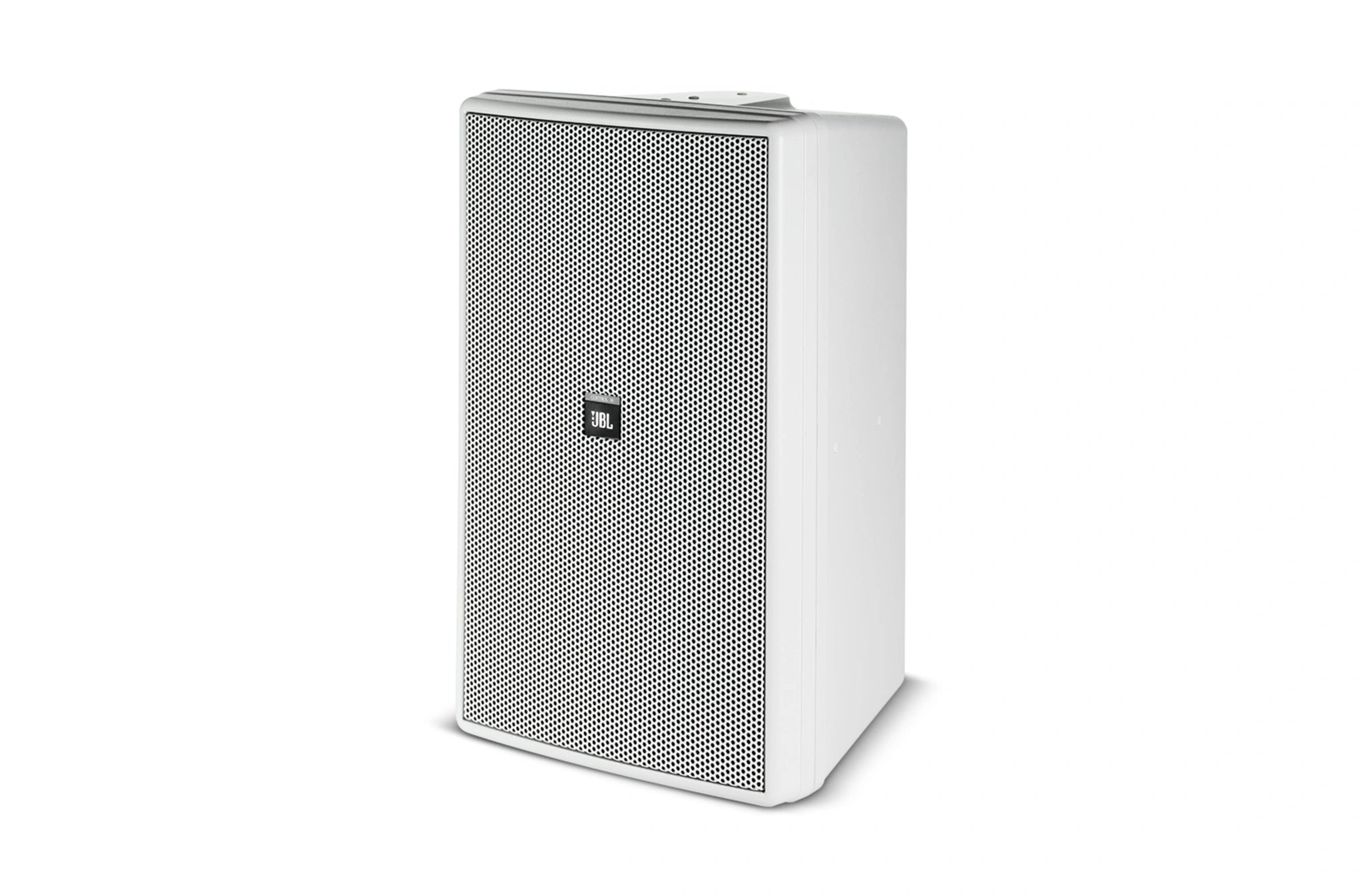

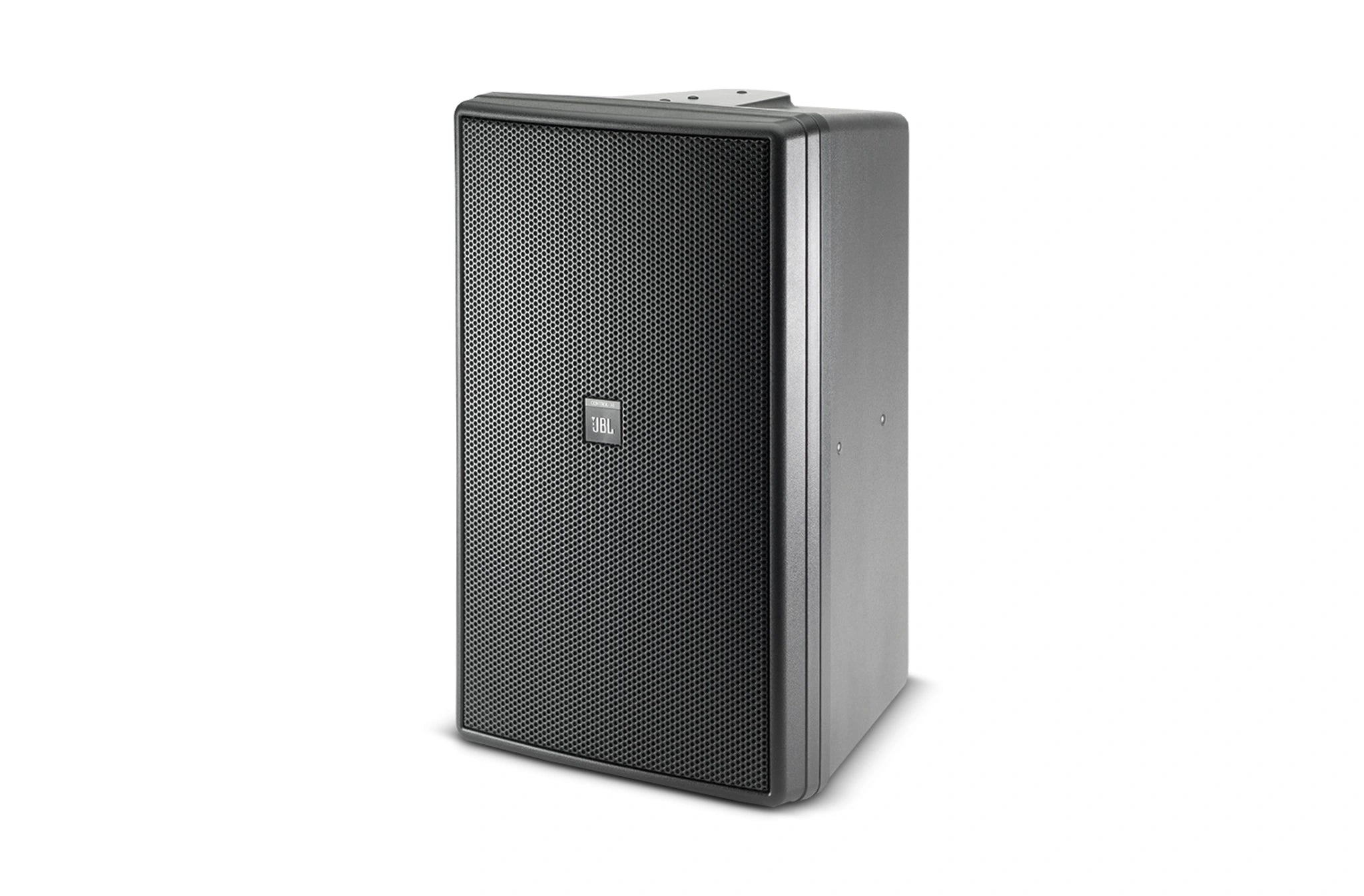

Black or white (-WH) |
| Dimensions (H x W x D) |
593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in) |
| Net Weight (each) |
18.9 kg (42 lb) |
| Shipping Weight (each) |
20.3 kg (45 lb) |
| Included Accessories |
1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall hex wrench |
| Optional Accessories |
MTC-30CM (-WH) to install speaker down from the ceiling
MTC-30UB (-WH) U-bracket |
| Mounting Hardware |
InvisiBall™ aimable wall-mounting system included. Optional U-bracket. |
