- Extended bandwidth, extremely smooth frequency response.
- Fully outdoor-capable design, featuring WeatherMax™.
- 120° x 110° HF coverage.
- 150 W transformer for 70 V or 100 V lines, with 8 thru.
- SonicGuard® overload protection.
- 250 mm (10 in) fiberglass / Kevlar® cone LF woofer, with neodymium magnet coaxial 125 mm (5 in) anodized aluminum cone MR, and 25 mm (1 in) titanium diaphragm compression driver.
- Includes InvisiBall® mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
- Sealed input panel cover and screw-down input terminals.
Description

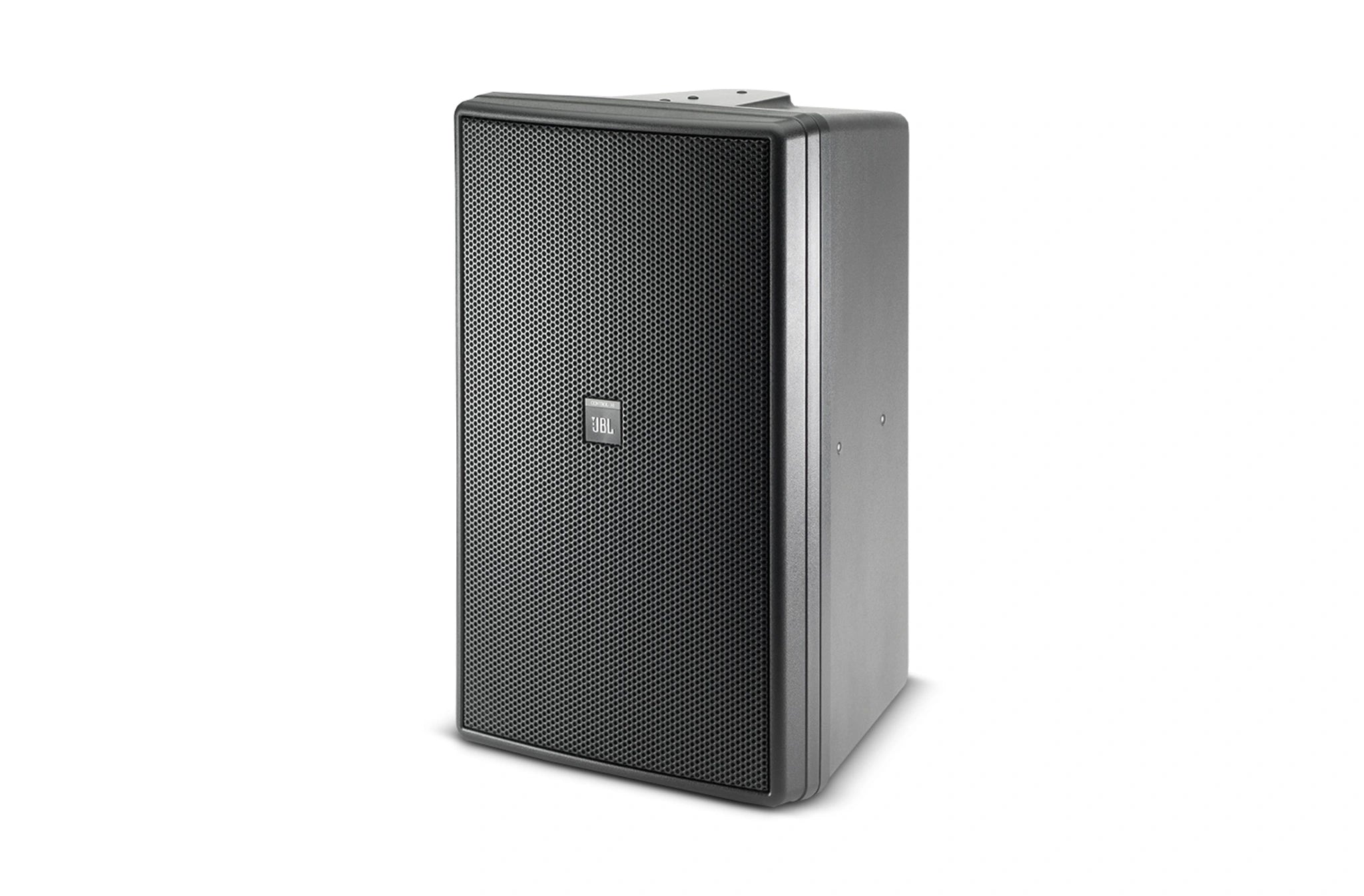

JBL Control 30 Indoor Outdoor Monitor Speaker is a premium three-way commercial loudspeaker engineered for demanding indoor and outdoor sound reinforcement applications. Designed to deliver exceptional music clarity, powerful output, and outstanding speech intelligibility, the JBL Control 30 Indoor Outdoor Monitor Speaker is ideal for stadiums, sports venues, hotels, theme parks, houses of worship, educational institutions, retail centers, and large commercial facilities. Its rugged weather-resistant enclosure and advanced driver design ensure reliable performance in challenging environments.
The JBL Control 30 Indoor Outdoor Monitor Speaker features a high-performance 10-inch fiberglass and Kevlar low-frequency woofer, a 5-inch anodized aluminum midrange driver, and a 1-inch titanium diaphragm compression driver for accurate full-range sound reproduction. Wide 120° × 110° coverage provides consistent audio throughout large listening areas while reducing the number of speakers required. The speaker also includes a built-in 150 W transformer for both 70 V and 100 V distributed audio systems with a 4-ohm bypass option for flexible commercial installations.
Built for professional applications, the JBL Control 30 Indoor Outdoor Monitor Speaker includes WeatherMax outdoor protection, SonicGuard overload protection, a sealed input panel, and JBL's InvisiBall mounting system for secure installation and precise aiming. Optional U-bracket and ceiling-mount accessories provide additional installation flexibility. Whether installed indoors or outdoors, the JBL Control 30 Three Way High Output Indoor Outdoor Monitor Speaker delivers powerful JBL sound, excellent durability, and dependable long-term performance.
Features
| Specification | Details |
|---|---|
| Frequency Range (-10dB) | 38 Hz – 17 kHz |
| Power Capacity | 500 W continuous program power; 250 W continuous pink noise |
| Transformer Taps | 70V: 150 W, 75 W, 38 W, 19 W 100V: 150 W, 75 W, 38 W Thru position: 4 ohms nominal |
| Frequency Response (±3dB) | 40 Hz – 16 kHz |
| Maximum SPL (1m) | Short-term: 123 dB Long-term: 117 dB |
| Sensitivity | 93 dB, 1W @ 1m (3.3 ft) |
| Coverage Angle | 120° H x 110° V |
| Directivity Factor (Q) | 5.2 dB, averaged 500 Hz to 10 kHz |
| Directivity Index (DI) | 7.1 dB, averaged 500 Hz to 10 kHz |
| Impedance | 4 ohms |
| Crossover Network | 3rd order low-pass LF, 2nd order high-pass/3rd order low-pass MF, 3rd order high-pass HF, plus conjugate shaping circuitry |
| Drivers | LF: 250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet MF: 125 mm (5 in) anodized aluminum cone with EPDM rubber (terpolymer of ethylene and propylene) surround, 25 mm (1 in) voice coil on fiberglass former HF: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround |
| Enclosure | High Impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold |
| Grille | Thermoset composite coated steel, WeatherMax multi-layer foam |
| Overload Protection | SonicGuard full-range power limiting to protect network and transducers |
| Outdoor Capability | IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. |
| Input Connectors | Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug. |
| Safety Agency | Transformer is listed per UL1876 |

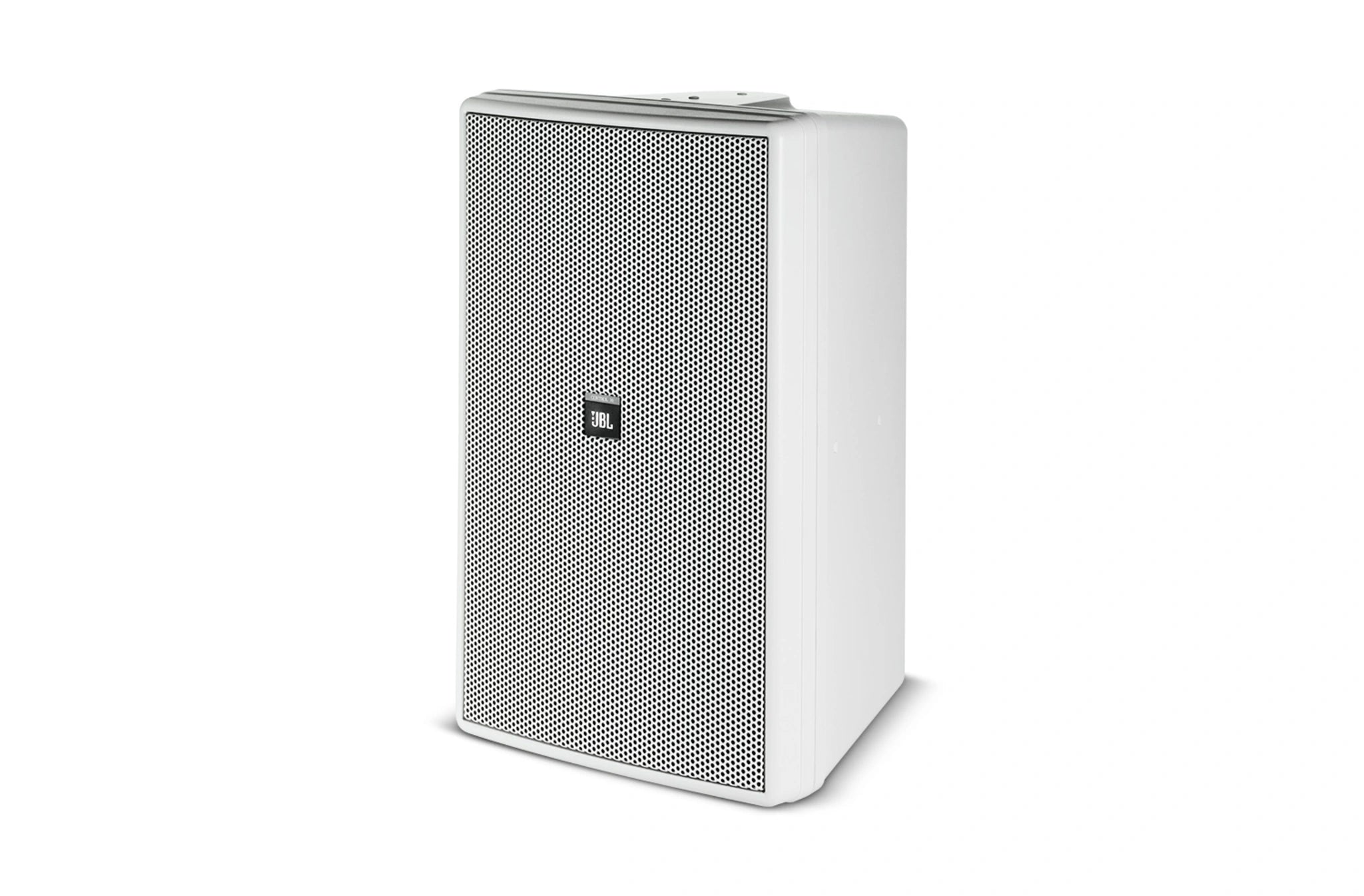

| Colors | Black or white (-WH) |
| Dimensions (H x W x D) | 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in) |
| Net Weight (each) | 18.9 kg (42 lb) |
| Shipping Weight (each) | 20.3 kg (45 lb) |
| Included Accessories | 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall hex wrench |
| Optional Accessories | MTC-30CM (-WH) to install speaker down from the ceiling MTC-30UB (-WH) U-bracket |
| Mounting Hardware | InvisiBall™ aimable wall-mounting system included. Optional U-bracket. |
