| Frequency Range |
80 Hz – 20 kHz |
| Power Rating |
IEC system long-term ratings (low-Z direct):
150 W continuous program power
75 W continuous pink noise (300 W peak), 100 hrs |
| Transformer Taps |
60 W, 30 W, 15 W (& 7.5 W @ 70V) |
| Coverage Angle |
110° conical |
| Directivity Index (DI) |
4.6 averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) |
107 dB (top 70V/100V tap) |

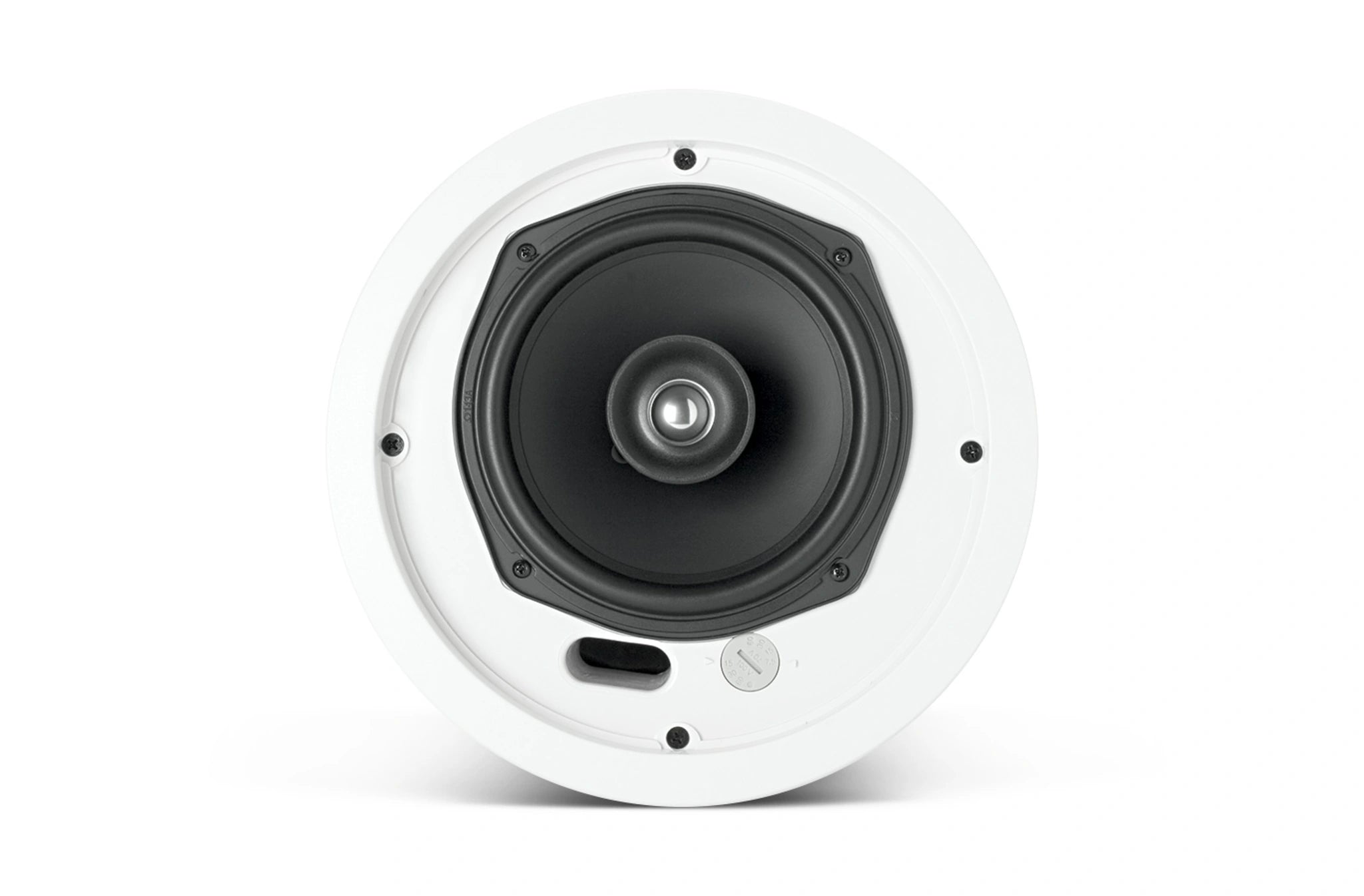

| Drivers |
LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (0.75 in) |
| Input Connectors |
Removable locking connector with screw-down terminals |
| Outside Dimensions (H x Dia) |
210 x 252 mm (8.3 x 9.9 in)
190 mm (7.5 in) front of ceiling tile to back of backcan |
| Net Weight (each) |
4.2 kg (10 lb) |
| Shipping Weight (pair) |
9.7 kg (21 lb) |
| Sensitivity |
89 dB (100 Hz – 10 kHz) |
| Color |
White |
| Safety Agency |
UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan |
Formed steel (included, "blind-mount") |
| Baffle/Rim |
Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size |
220 mm (8.75 in) diameter (cardboard cutout template included) |
| Included Accessories |
C-shaped support backing plate, 2 tile support rails (fits both 2x4 ft or 600x1200 mm tiles), cutout template, paint shield, removable locking wiring connector – Euroblock |
| Plenum Usage |
Yes, backcan included |
