- Video shielded for use near video monitors.
- Extremely smooth frequency response.
- Stainless steel grill for harsh environments.
- 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
- SonicGuard™ overload protection.
- 130 mm (5.25 in) polypropylene coated woofer, 20 mm (.75 in) titanium coated horn-loaded tweeter.
- Includes InvisiBall® mounting hardware and sealed input panel cover.
- Screw-down input terminals.
- 100° x 100° high frequency horn.
Description

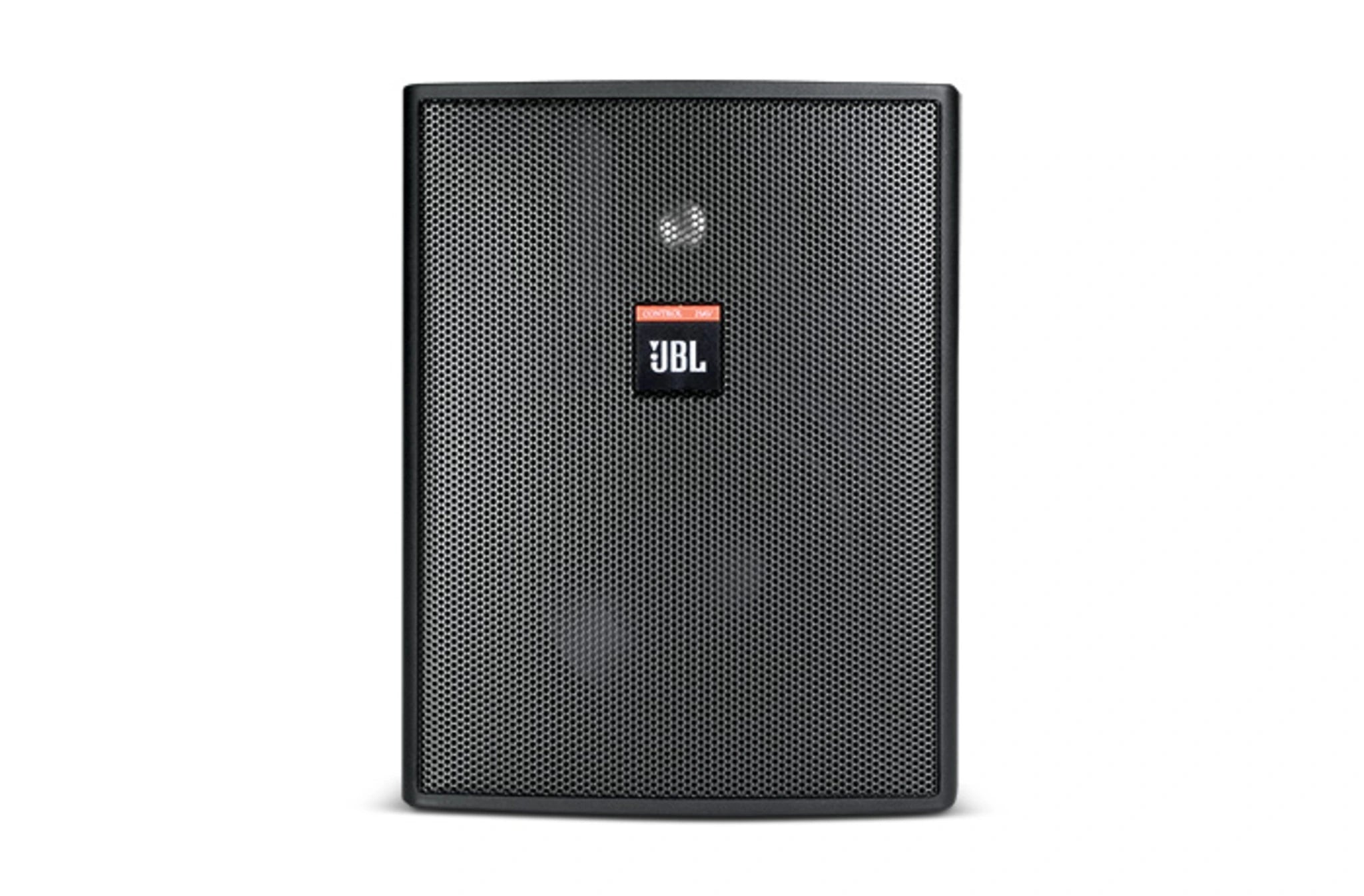

JBL Control 25AV Compact Indoor Outdoor Speaker is a high-performance commercial loudspeaker designed for both indoor and outdoor audio applications. Built for background and foreground music systems, the JBL Control 25AV Compact Indoor Outdoor Speaker delivers clear sound, excellent speech intelligibility, and reliable performance in restaurants, hotels, retail stores, schools, offices, houses of worship, and other commercial environments. Its weather-resistant enclosure and durable construction ensure dependable operation even in demanding outdoor installations.
The JBL Control 25AV Compact Indoor Outdoor Speaker features a 5.25-inch polypropylene-coated woofer and a 0.75-inch titanium-coated horn-loaded tweeter that provide balanced audio with smooth frequency response from 70 Hz to 23 kHz. A wide 100° × 100° coverage pattern ensures consistent sound distribution throughout the listening area. The speaker includes a built-in 60 W transformer for both 70 V and 100 V distributed audio systems with an 8-ohm bypass option, making it suitable for a wide range of commercial sound installations.
Designed for easy installation, the JBL Control 25AV Compact Indoor Outdoor Speaker includes the JBL InvisiBall mounting system, sealed input panel cover, and screw-down input terminals for secure connections. SonicGuard overload protection safeguards the drivers during high-output operation, while the painted stainless-steel grille and weather-resistant cabinet provide long-lasting durability. Whether installed indoors or outdoors, the JBL Control 25AV Compact Indoor Outdoor Speaker offers professional JBL sound quality, flexible installation, and reliable long-term performance.
JBL Control 25AV Compact Indoor Outdoor Speaker Features
| Specification | Details |
|---|---|
| Frequency Range (-10dB) | 70 Hz – 23 kHz |
| Power Capacity | 200 W continuous program power; 100 W continuous pink noise |
| Transformer Taps | 70V: 60 W, 30 W, 15 W, 7.5 W 100V: 60 W, 30 W, 15 W |
| Sensitivity | 87 dB SPL, 1W @ 1m (3.3 ft) |
| Midrange (±1.5dB, typical) | 130 Hz – 14 kHz |
| Coverage Angle | 100° H x 100° V |
| Maximum SPL (1m) | 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech |
| Directivity Factor (Q) | 4.9 dB, averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 6.9 dB, averaged 500 Hz to 4 kHz |
| Impedance | 8 ohms |
| Minimum Impedance | 6.7 ohms at 230 Hz |
| Crossover Network | Second order low-pass, second order high-pass, complex optimization for maximally flat response |
| Drivers | LF: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voice coil on Kapton former HF: 20 mm (0.75 in) titanium-coated PEI |
| Enclosure | High impact polystyrene |
| Grille | Painted stainless steel, black or white to match cabinet, paintable |
| Overload Protection | Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition. |
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating. |
| Input Connectors | Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8, or #10), plus bare wire (up to 12 AWG). |
| Safety Agency | Transformer is listed per UL1876 |

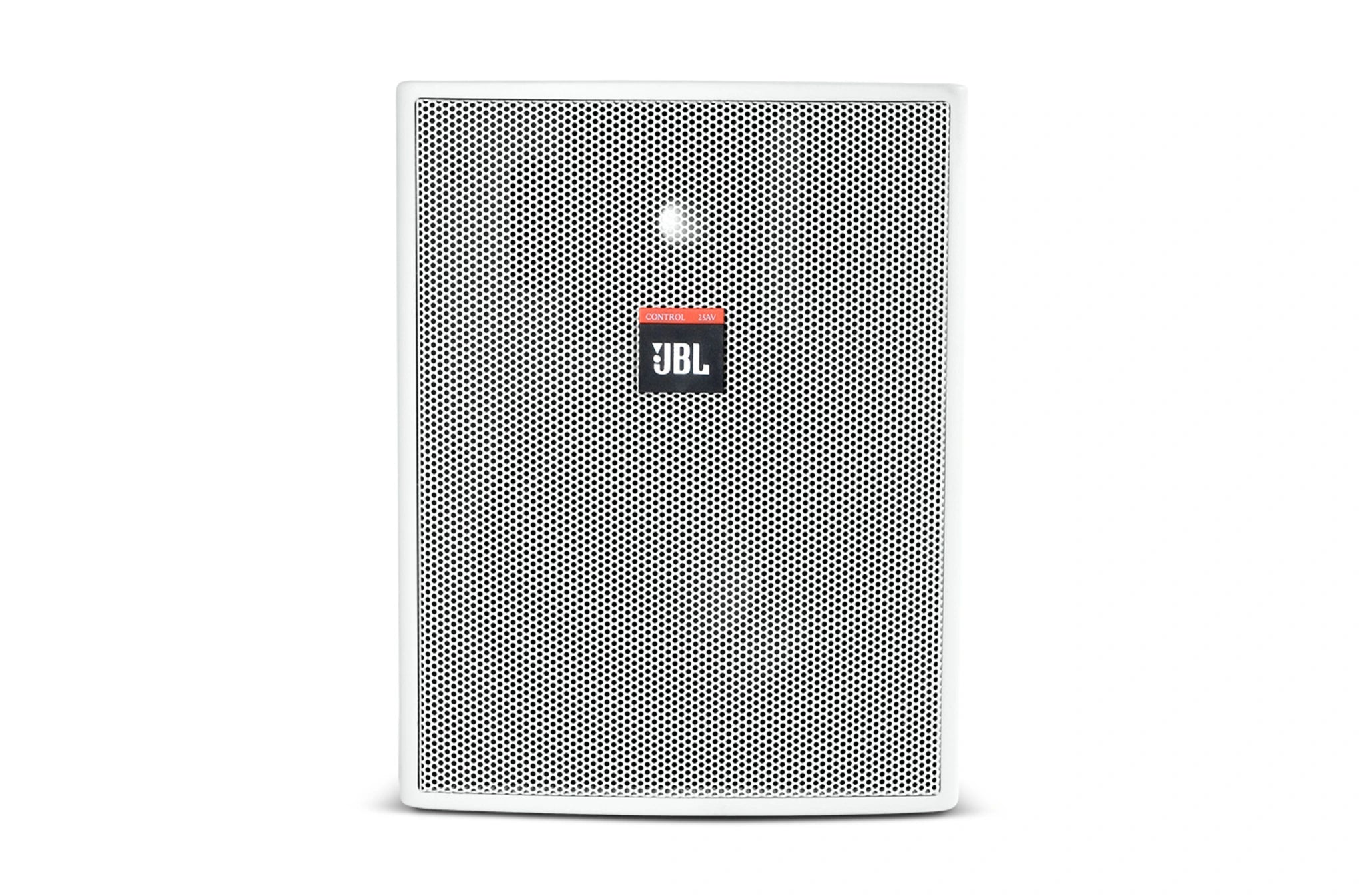

| Colors | Black or white (-WH) |
| Rotation | Against wall on InvisiBall base: 37° vertical, 44° horizontal On bracket: 44° all directions |
| Dimensions (H x W x D) | 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) |
| Net Weight (each) | 4.0 kg (9 lb) |
| Shipping Weight | 9.0 kg (20 lb) per pair |
| Included Accessories | 1 pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench |
| Optional Accessories | MTC-25V: for vertical columnar orientation of up to 3 loudspeakers, extension of the woofer surround MTC-25/23H: for horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: ceiling-mount adapter |
| Mounting Hardware | InvisiBall™ aimable wall-mounting system included |
