| Frequency Range (-10dB) |
70 Hz – 23 kHz |
| Power Capacity |
200 W continuous program power; 100 W continuous pink noise |
| Transformer Taps |
70V: 60 W, 30 W, 15 W, 7.5 W
100V: 60 W, 30 W, 15 W |
| Sensitivity |
87 dB SPL, 1W @ 1m (3.3 ft) |
| Midrange (±1.5dB, typical) |
130 Hz – 14 kHz |
| Coverage Angle |
100° H x 100° V |
| Maximum SPL (1m) |
113 dB continuous peak pink noise
107 dB continuous average pink noise
103 dB continuous average music or speech |
| Directivity Factor (Q) |
4.9 dB, averaged 500 Hz to 4 kHz |
| Directivity Index (DI) |
6.9 dB, averaged 500 Hz to 4 kHz |
| Impedance |
8 ohms |
| Minimum Impedance |
6.7 ohms at 230 Hz |
| Crossover Network |
Second order low-pass, second order high-pass, complex optimization for maximally flat response |
| Drivers |
LF: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voice coil on Kapton former
HF: 20 mm (0.75 in) titanium-coated PEI |
| Enclosure |
High impact polystyrene |
| Grille |
Painted stainless steel, black or white to match cabinet, paintable |
| Overload Protection |
Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition. |
| Outdoor Capability |
Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating. |
| Input Connectors |
Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8, or #10), plus bare wire (up to 12 AWG). |
| Safety Agency |
Transformer is listed per UL1876 |

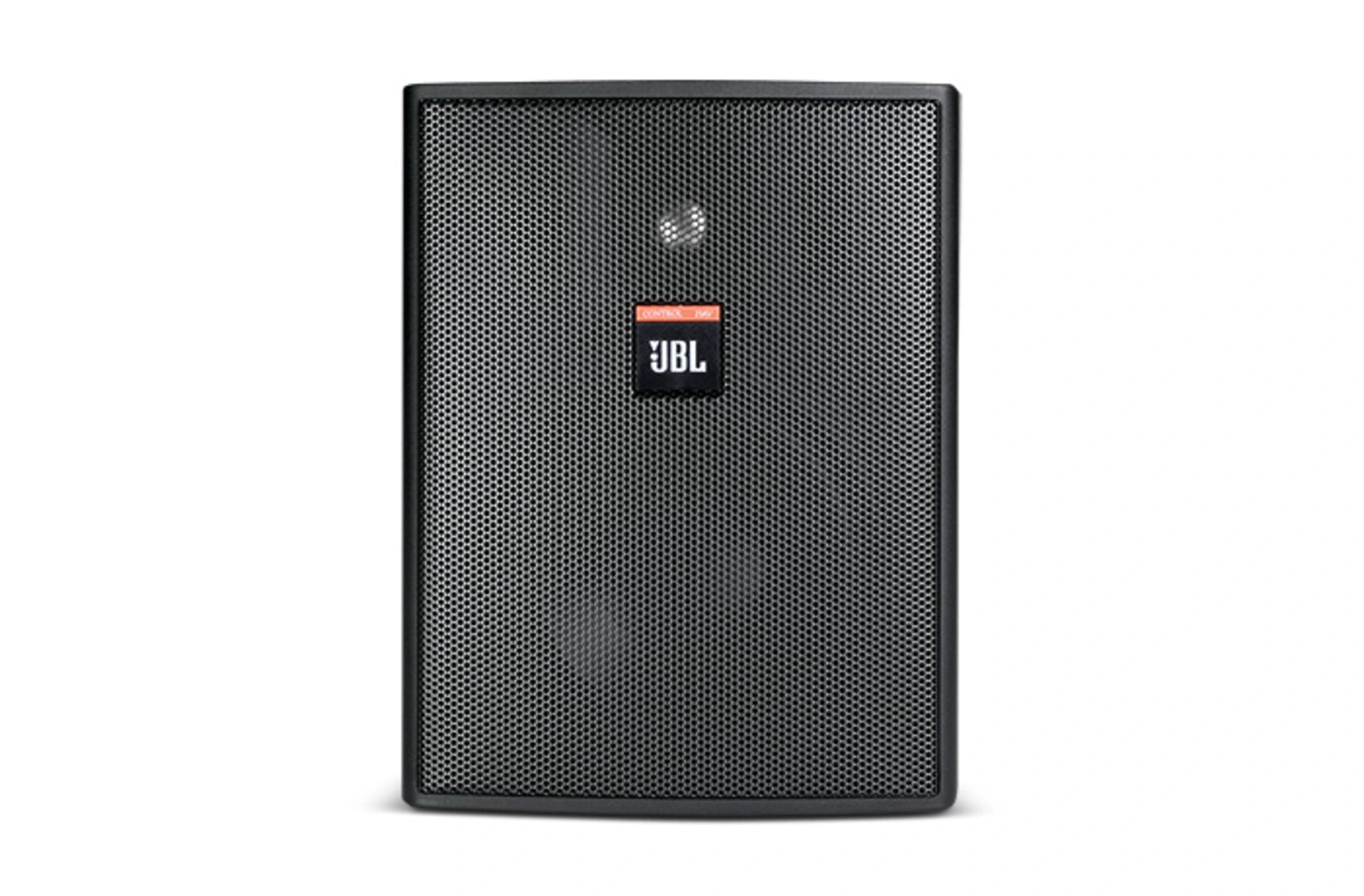

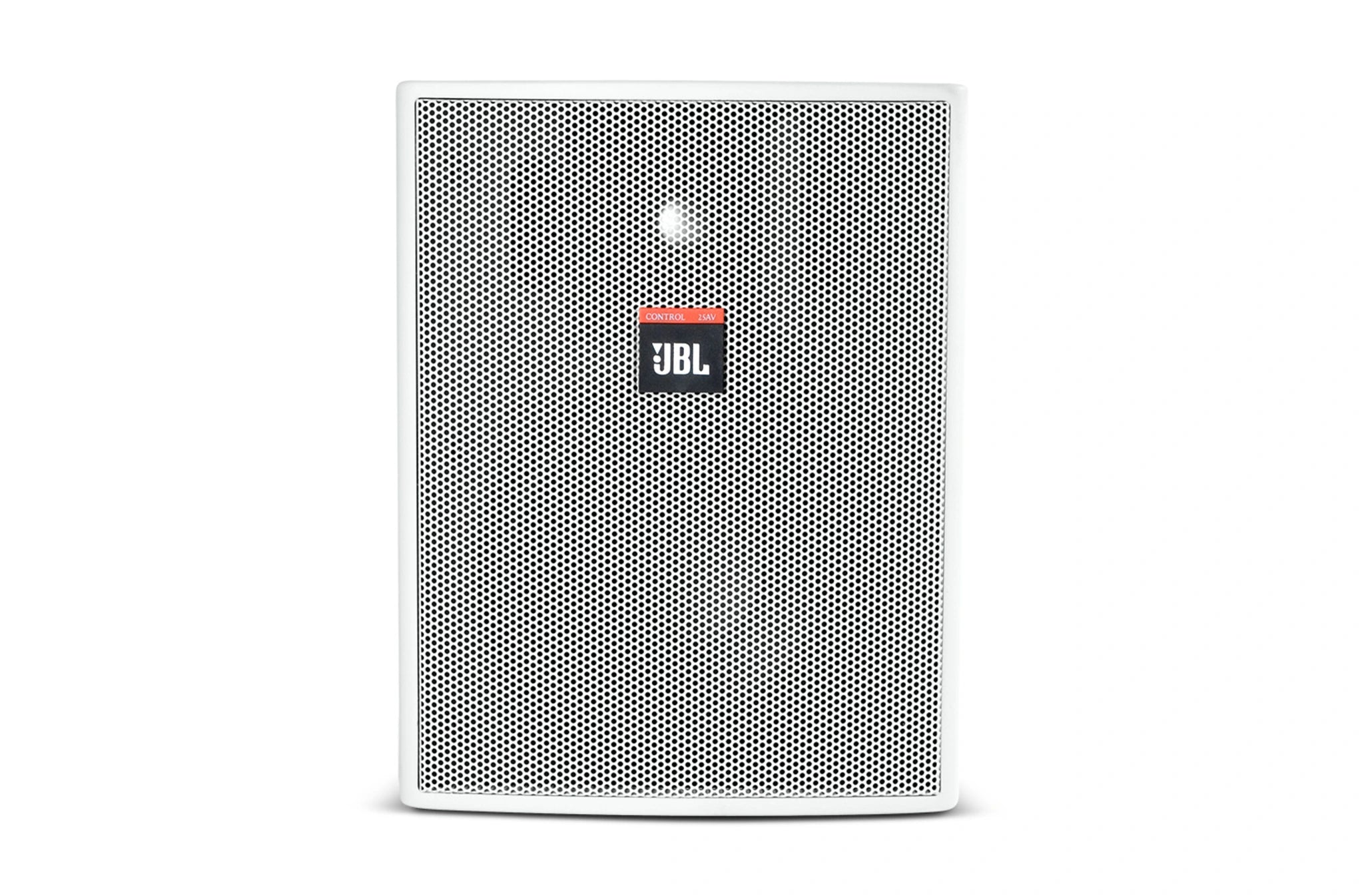

| Colors |
Black or white (-WH) |
| Rotation |
Against wall on InvisiBall base: 37° vertical, 44° horizontal
On bracket: 44° all directions |
| Dimensions (H x W x D) |
236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) |
| Net Weight (each) |
4.0 kg (9 lb) |
| Shipping Weight |
9.0 kg (20 lb) per pair |
| Included Accessories |
1 pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench |
| Optional Accessories |
MTC-25V: for vertical columnar orientation of up to 3 loudspeakers, extension of the woofer surround
MTC-25/23H: for horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array.
MTC-28/25CM: ceiling-mount adapter |
| Mounting Hardware |
InvisiBall™ aimable wall-mounting system included |
