| Frequency Range |
85 Hz – 25 kHz |
| Power Rating |
See transformer taps |
| Transformer Taps |
9 W, 4 W, 2 W, 1 W (& 0.5 W taps @ 70V) |
| Crossover Frequency |
3.5 kHz |
| Maximum SPL (1m) |
94 dB (top 70V/100V tap) |
| Sensitivity |
86 dB (100 Hz – 10 kHz) |
| Coverage Angle |
150° conical |
| Input Connectors |
Screw-down terminals |

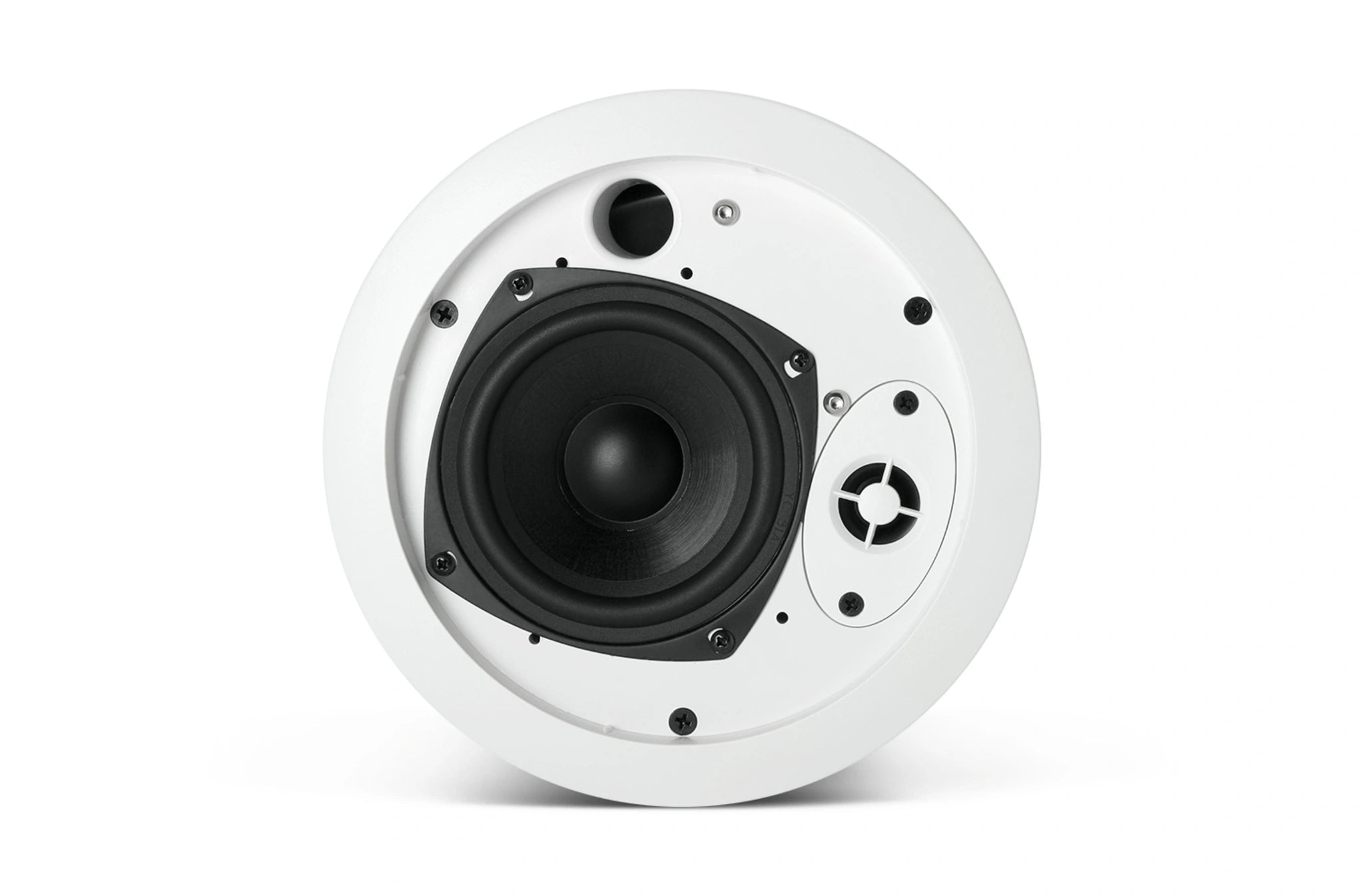

| Drivers |
LF Driver: 115 mm (4.5 in)
HF Driver: 12 mm (0.5 in) |
| Color |
White |
| Safety Agency |
Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |

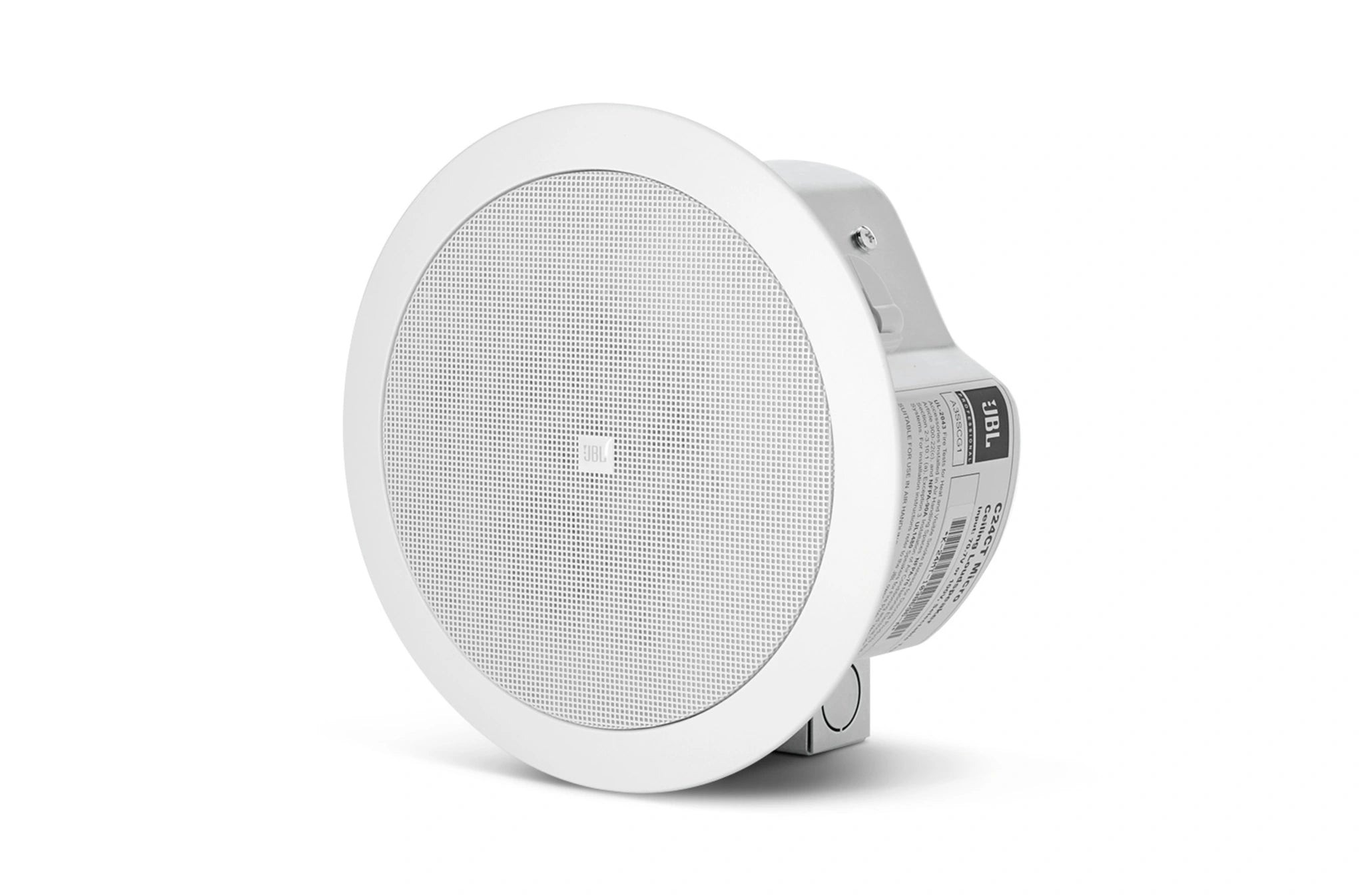

| Backcan |
Formed steel (included, "blind-mount") |
| Baffle/Rim |
Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size |
167 mm (6.6 in) diameter (cardboard cutout template included) |
| Included Accessories |
C-shaped support backing plate, 2 tile support rails (fits both 2 ft and 600 mm tiles), cutout template (cardboard) |
| Optional Accessories |
MTC-24TR trim ring for retrofit installations
MTC-24NC optional new construction bracket, flat
MTC-24MR optional mud ring construction bracket |
| Plenum Usage |
Yes, backcan included |
