| Frequency Range (-10dB) |
47 Hz – 19 kHz |
| Power Rating |
IEC long-term system power rating:
150 W continuous pink noise (600 W peak), 2 hrs
100 W continuous pink noise (400 W peak), 100 hrs |
| Transformer Taps |
68 W, 34 W, 17 W (& 8.5 W @ 70V), plus transformer bypass |
| Sensitivity |
90 dB (1 kHz – 16 kHz) |
| Coverage Angle |
120° conical, constant directivity |
| Drivers |

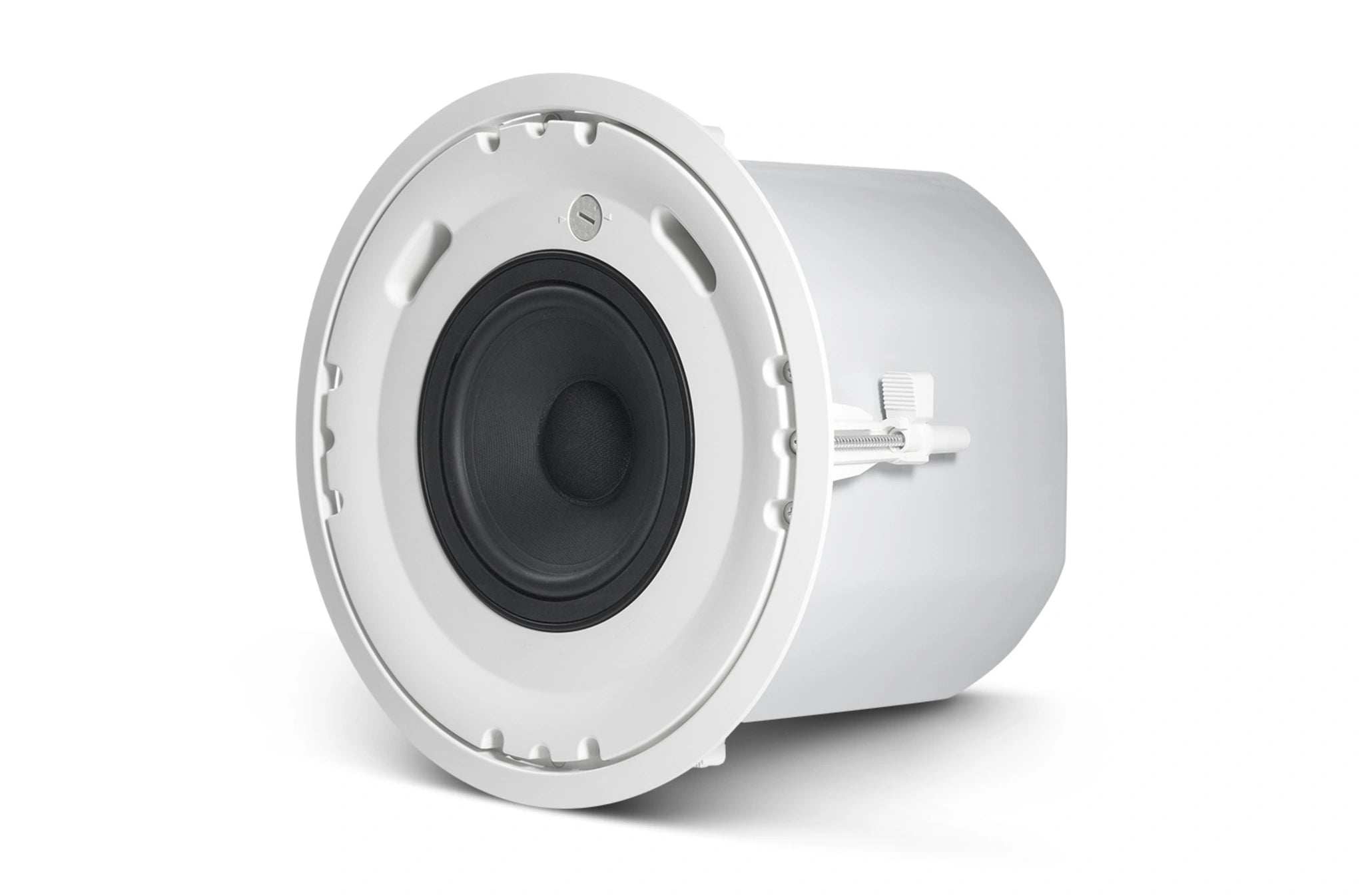

LF Driver: 165 mm (6.5 in)
HF Driver: compression driver, 25 mm (1 in) coil |
| Dimensions (H x Dia) |
Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in) |
| Net Weight (each) |
9.1 kg (20.0 lb) |
| Shipping Weight (pair) |
23.9 kg (52.5 lb) |
| Maximum SPL (1m) |
112 dB (low-impedance, 118 dB peak)
108 dB (top 70V/100V tap) |
| Impedance |
8 ohms (in direct/bypass setting) |
| Input Connectors |

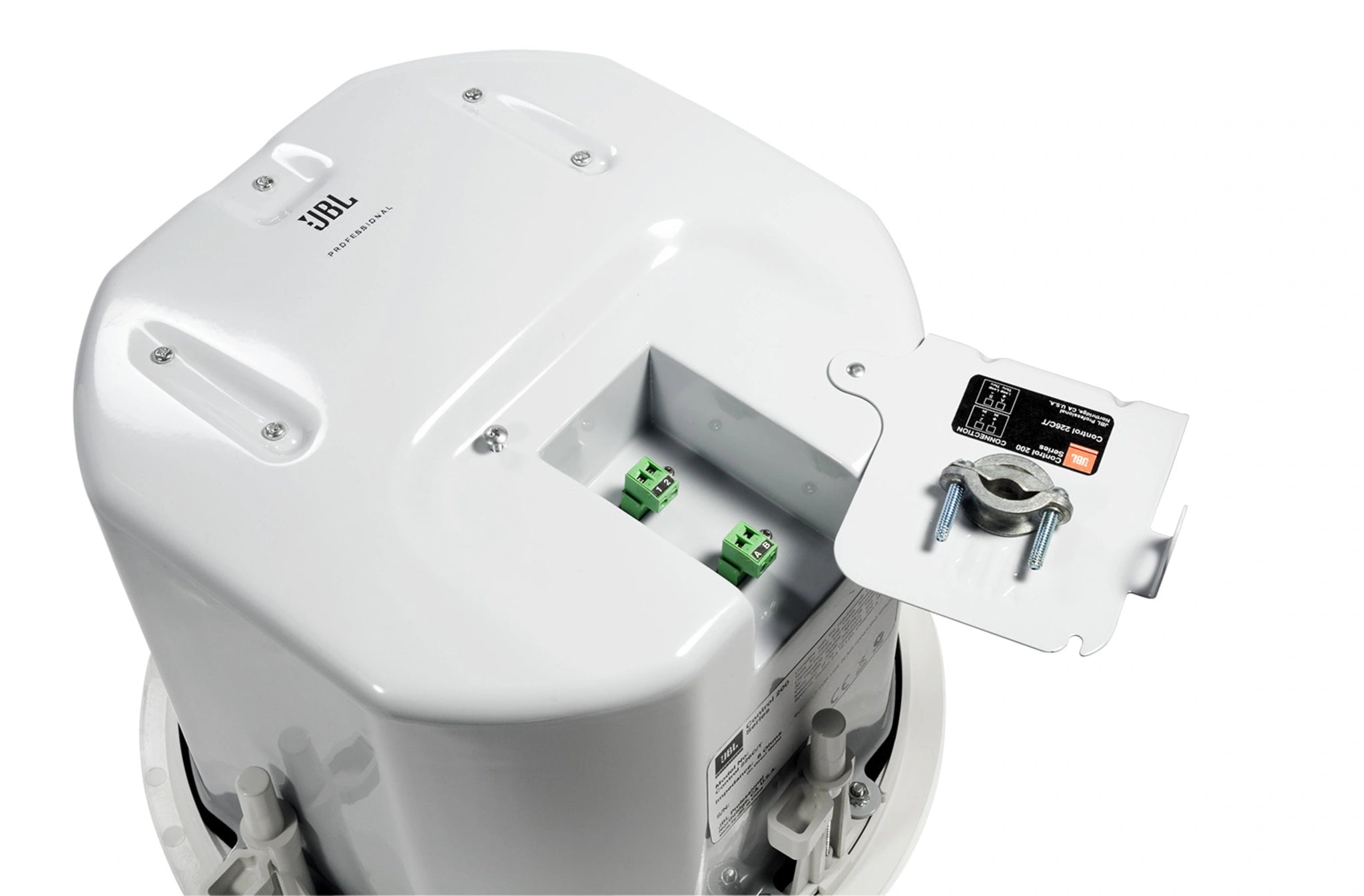

Removable locking connector with screw-down terminals |
| Color |
White |
| Safety Agency |
Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan |
Formed steel (included, "blind-mount") |
| Baffle/Rim |
ABS baffle with UL94-V0 flame class fire rating |
| Ceiling Cutout Size |
307 mm (12.1 in) diameter (cardboard cutout template included) |
| Included Accessories |

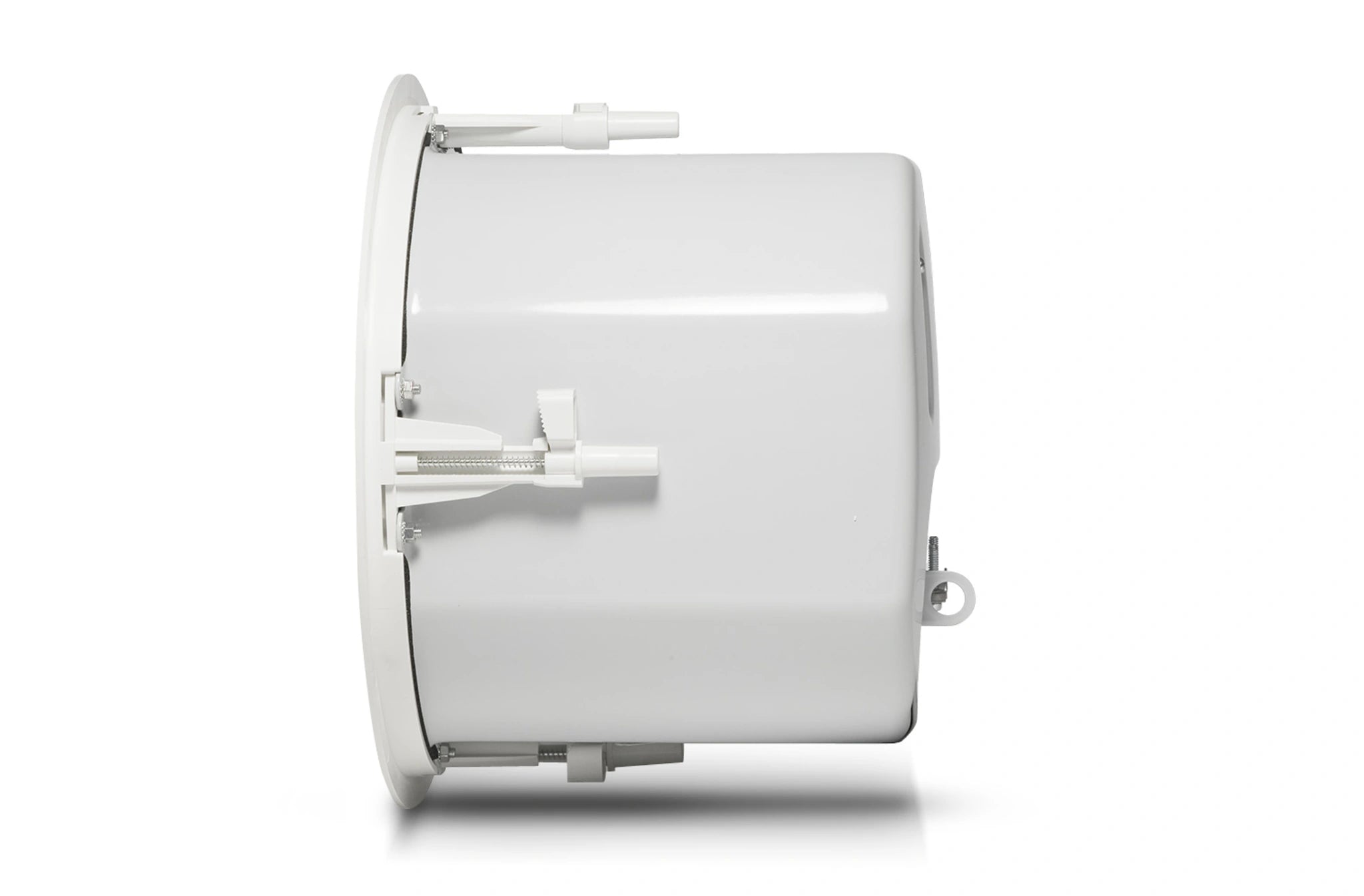

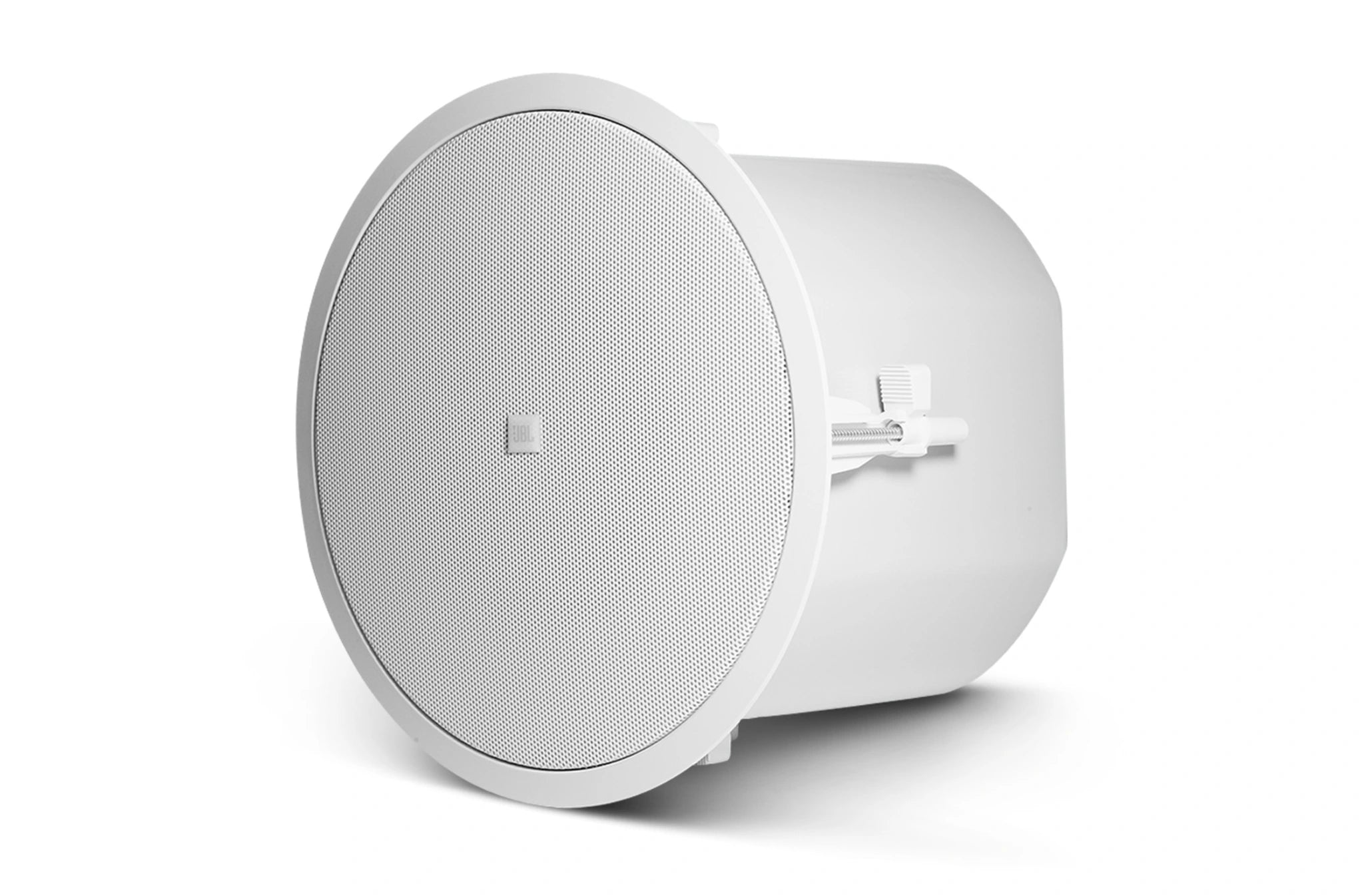

Press-in grille, C-ring, tile rails |
| Optional Accessories |
MTC-19NC new construction bracket
MTC-19MR mud ring construction bracket |
| Plenum Usage |
Yes, backcan included |
