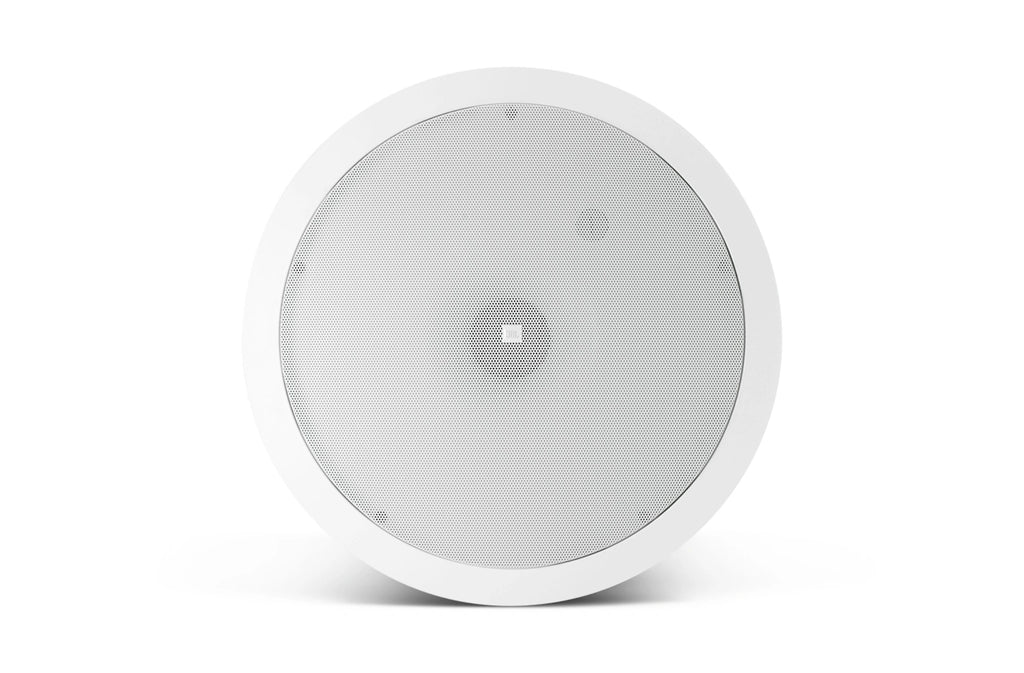

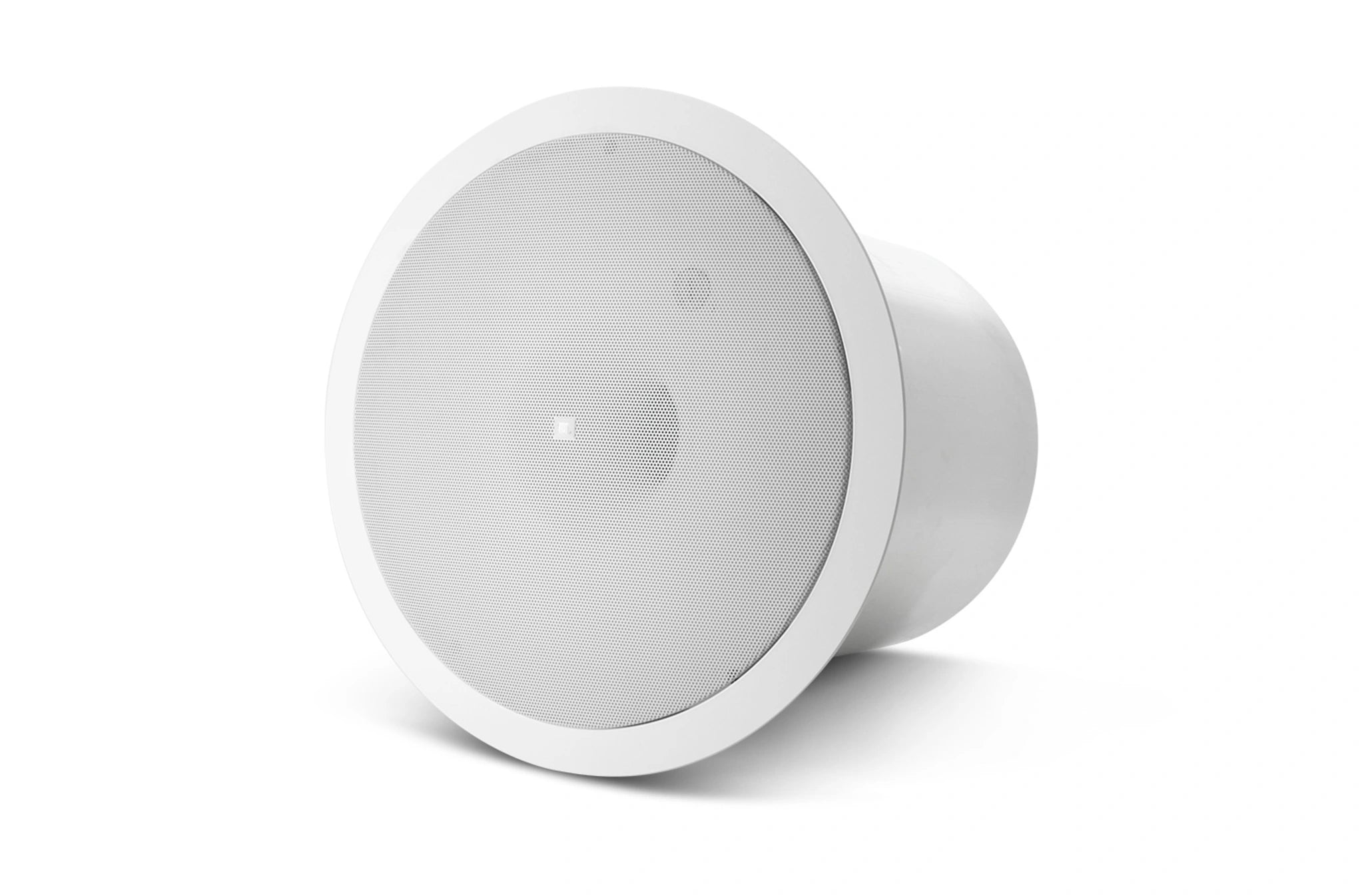

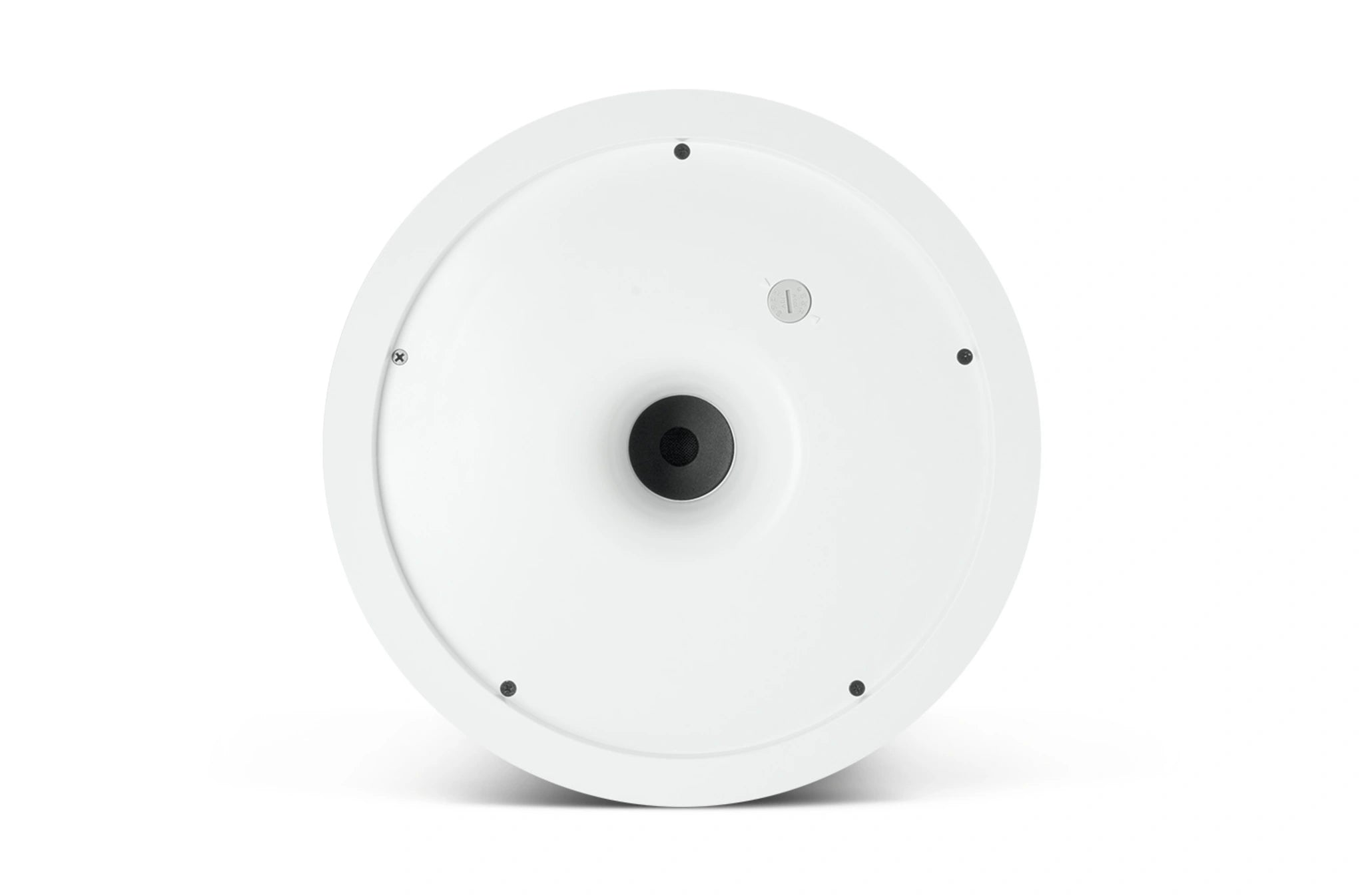

The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
- Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
- Component: Long excursion 200 mm (8 in) driver.
- Packaged with grille, backcan and tile rails for fast installation and easy stocking.
- Simple installation and wire connection method.
Specifications
| Specification |
Details |
| Frequency Range |
42 Hz – 200 Hz |
| Power Rating |
IEC system long-term ratings (low-Z direct):
200 W continuous program power
100 W continuous pink noise (400 W peak), 100 hrs |
| Sensitivity |
95 dB SPL in ceiling near corner, 89 dB in center of ceiling |
| Coverage Angle |
180° conical |
| Maximum SPL (1m) |
109 dB (low-impedance, 115 dB peak, center of ceiling)
115 dB (low-impedance, 121 dB peak, near corner) |
| Impedance |
8 ohms |
| Input Connectors |
Removable locking connector with screw-down terminals |
| Drivers |
200 mm (8.0 in) subwoofer |
| Color |
White |
| Safety Agency |
Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan |
Formed steel (included, "blind-mount") |
| Baffle/Rim |
Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size |
305 mm (12.0 in) diameter (cardboard cutout template included) |
| Included Accessories |
C-shaped support backing plate, 2 tile support rails (fits both 2x4 ft or 600x1200 mm tiles), cutout template, paint shield, removable locking wiring connector |
| Plenum Usage |
Yes, backcan included |
| Overload Protection |
Full-range power limiting to protect network and transducers (Control 19CS only — not included on Control 19CST) |
| Outside Dimensions (H x Dia) |
345 x 345 mm (13.6 x 13.6 in)
318 mm (12.5 in) front of ceiling tile to back of backcan |
| Net Weight (each) |
5.5 kg (12 lb) |
| Shipping Weight (pair) |
Control 19CS: 12.7 kg (28 lb) |
