Name: JBL AW595-LS High Power 2-Way All Weather Loudspeaker with 1 x 15" LF / EN 54-24 Compliant for Life Safety Applications
Brand: JBL
Availability: InStock

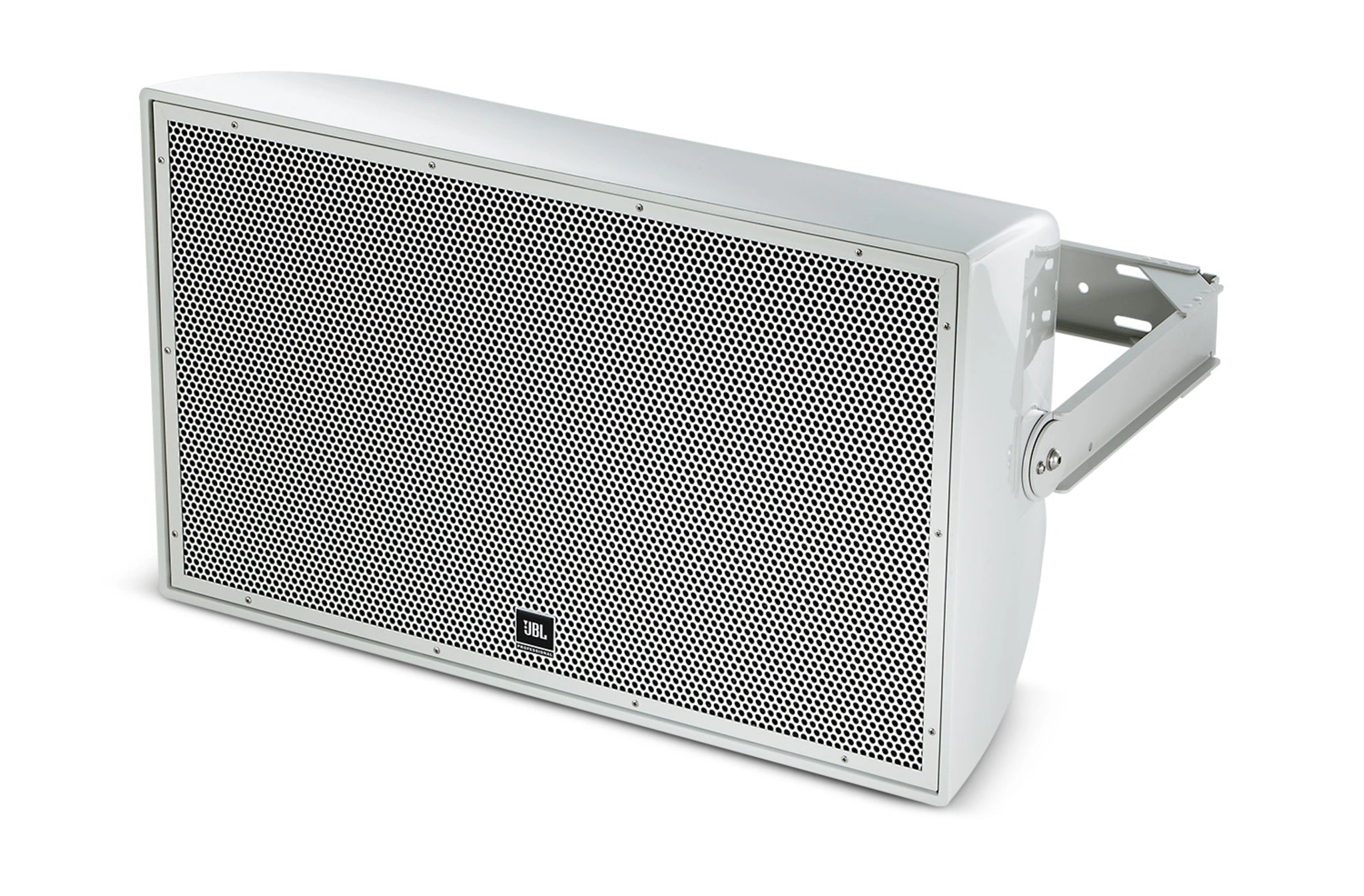

JBL AW595-LS High Power 2-Way All Weather Loudspeaker grille and rotatable waveguide detail

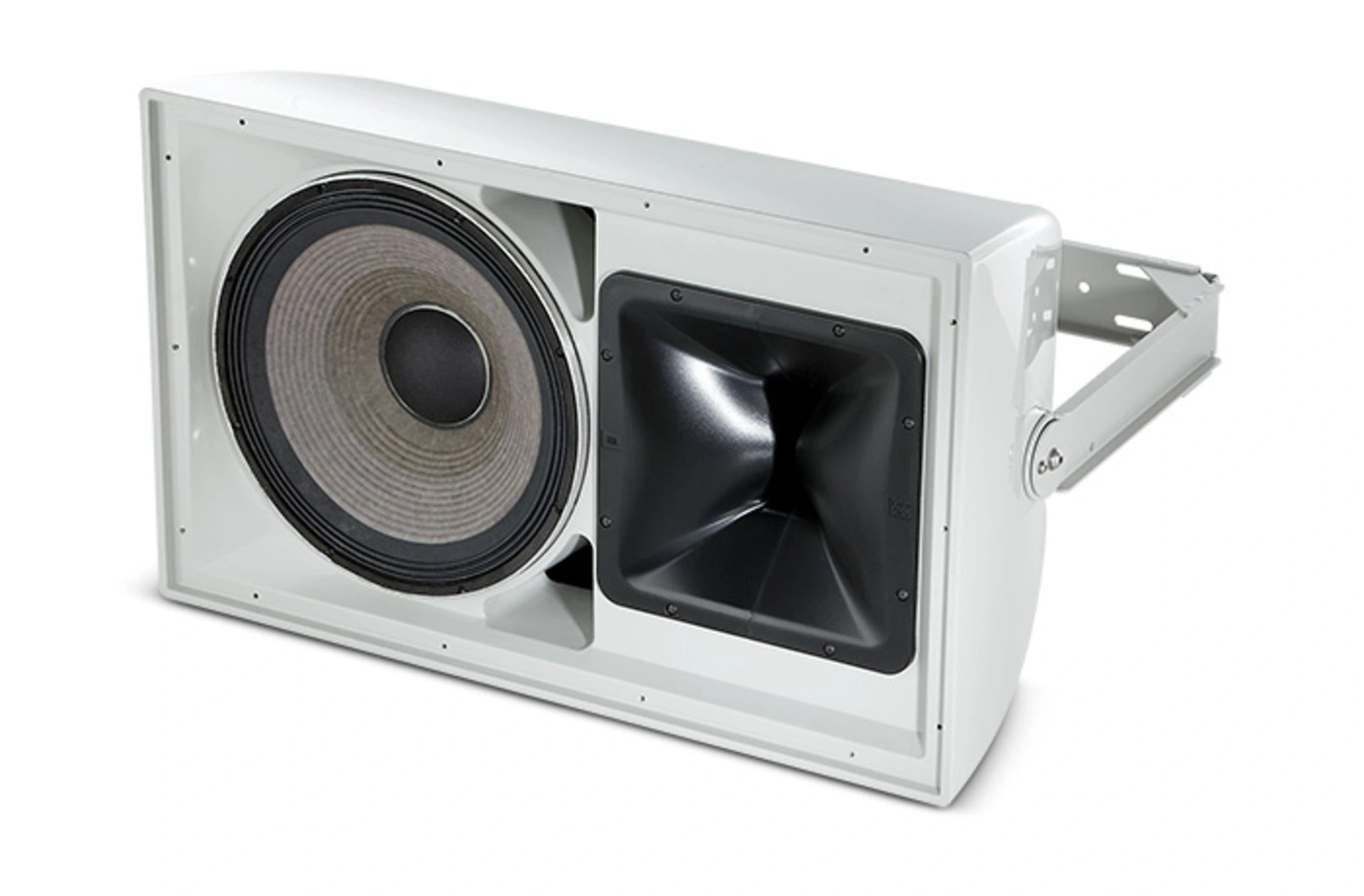

Close-up of JBL AW595-LS High Power 2-Way All Weather Loudspeaker horn rotation points for orientation flexibility

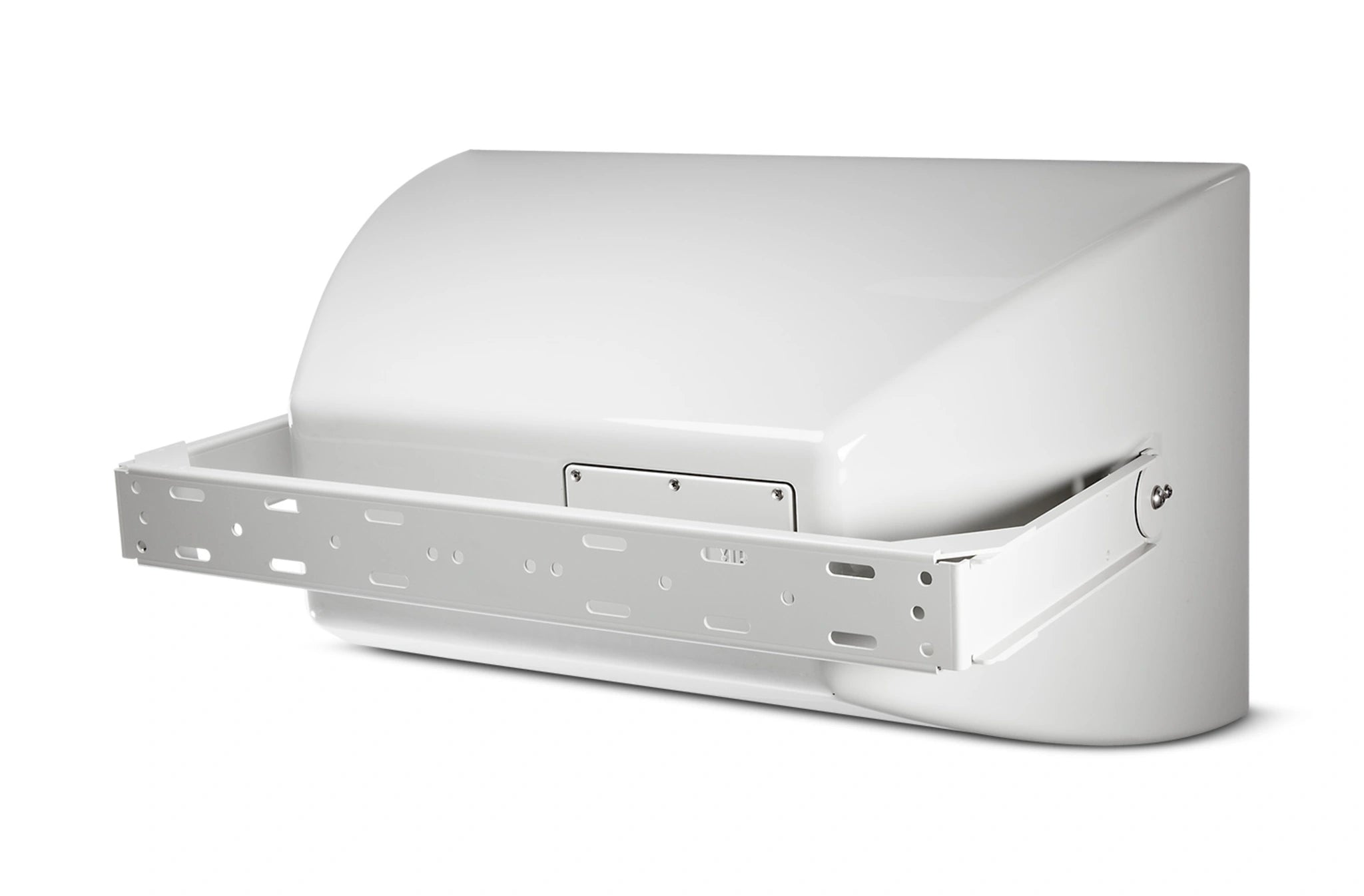

JBL AW595-LS High Power 2-Way All Weather Loudspeaker back panel showing barrier strip terminals

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn for Life Safety Applications

The AW595-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. This loudspeaker is EN 54-24 Compliant for life safety applications.

Features

Weather-Resistant, All Fiberglass Enclosure
EN 54-24 Compliant for life safety applications
90° x 50° Coverage
2265H Differential Drive® Low-Frequency Driver
2432H High Frequency Compression Drive
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable wave guide for vertical or horizontal orientation
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included

Specification	Details
Frequency Range (-10dB)	41 Hz – 20 kHz
Frequency Response (±3 dB)	88 Hz – 19 kHz
Coverage Pattern	90° x 50°, rotatable waveguide
Directivity Factor (Q)	12.6
Directivity Index (DI)	11 dB
Crossover Frequency	1.2 kHz
Crossover Modes	Passive
System Power Rating	400 W (1600 W peak), 100 hrs
Maximum SPL (1m)	127 dB-SPL cont avg (133 dB peak)
Maximum SPL (4m)	113.34 dB
System Sensitivity (1W @ 1m)	100 dB SPL
Sensitivity (1W @ 4m)	88.43 dB SPL
Transformer Taps	70V: 400 W, 200 W, 100 W 100V: 400 W, 200 W
LF Driver	1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal Impedance	8 ohms
Sensitivity (1W @ 1m, within operational band)	98 dB SPL
HF Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (HF)	113 dB SPL
Waveguide	PT-H95HF-1
Enclosure	Hand-laminated fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
Suspension Attachment	2 x M10 for included U-bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety
Grille	Three-layer grille assembly: 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh
Input Connector	CE-compliant covered barrier strip terminals. Accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental	IP55C per IEC 529
Dimensions (H x W x D, horizontal cabinet orientation)	485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in)
Net Weight (each)	28.3 kg (62.5 lb)
