Name: JBL AW266-LS High Power 2-Way All Weather Loudspeaker with 1 x 12" LF / EN 54-24 Compliant for Life Safety Applications
Brand: JBL
Price: 29585.44 SAR
Availability: InStock

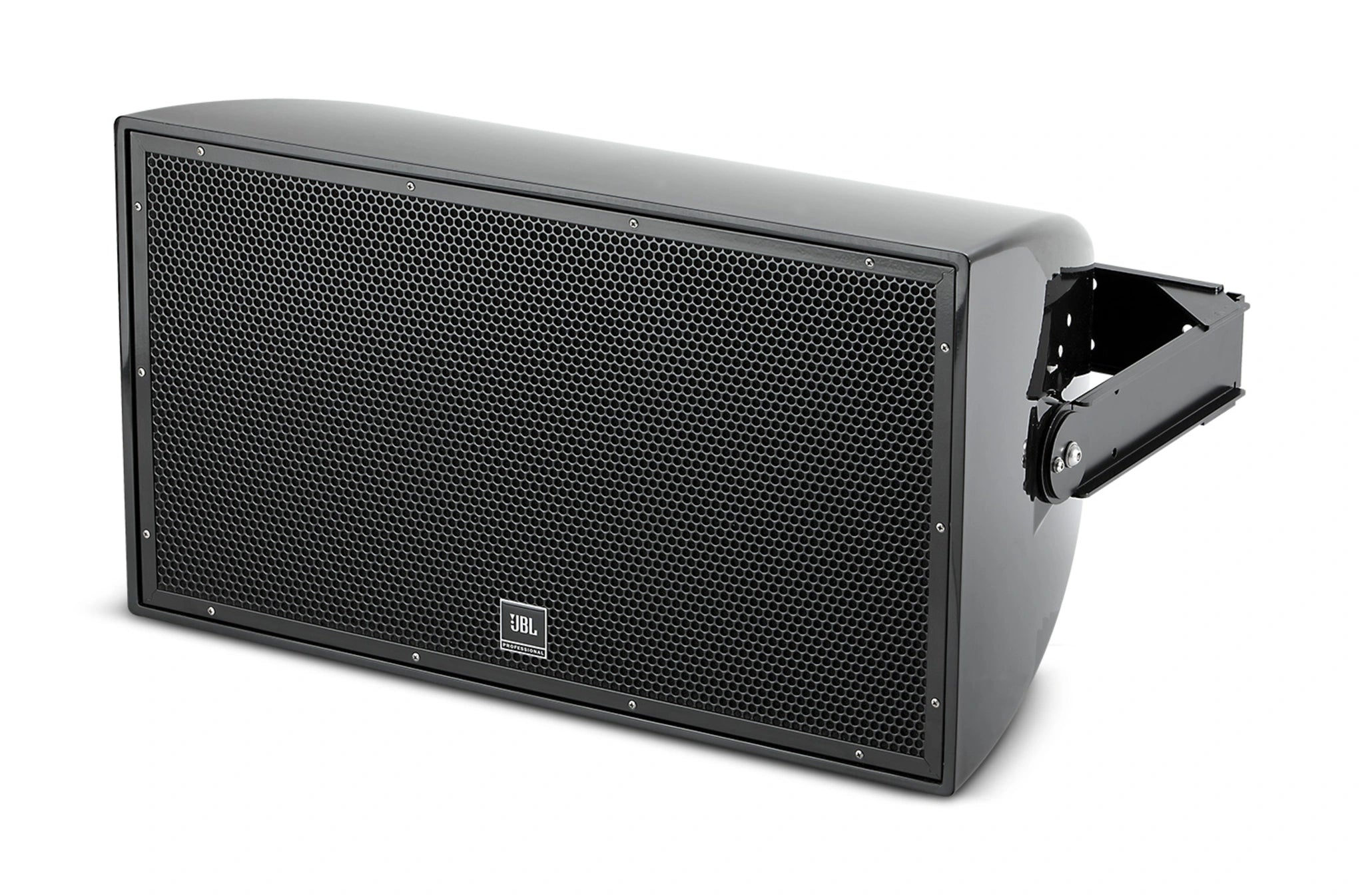

JBL AW266-LS High Power 2-Way All Weather Loudspeaker front view with 60° x 60° waveguide

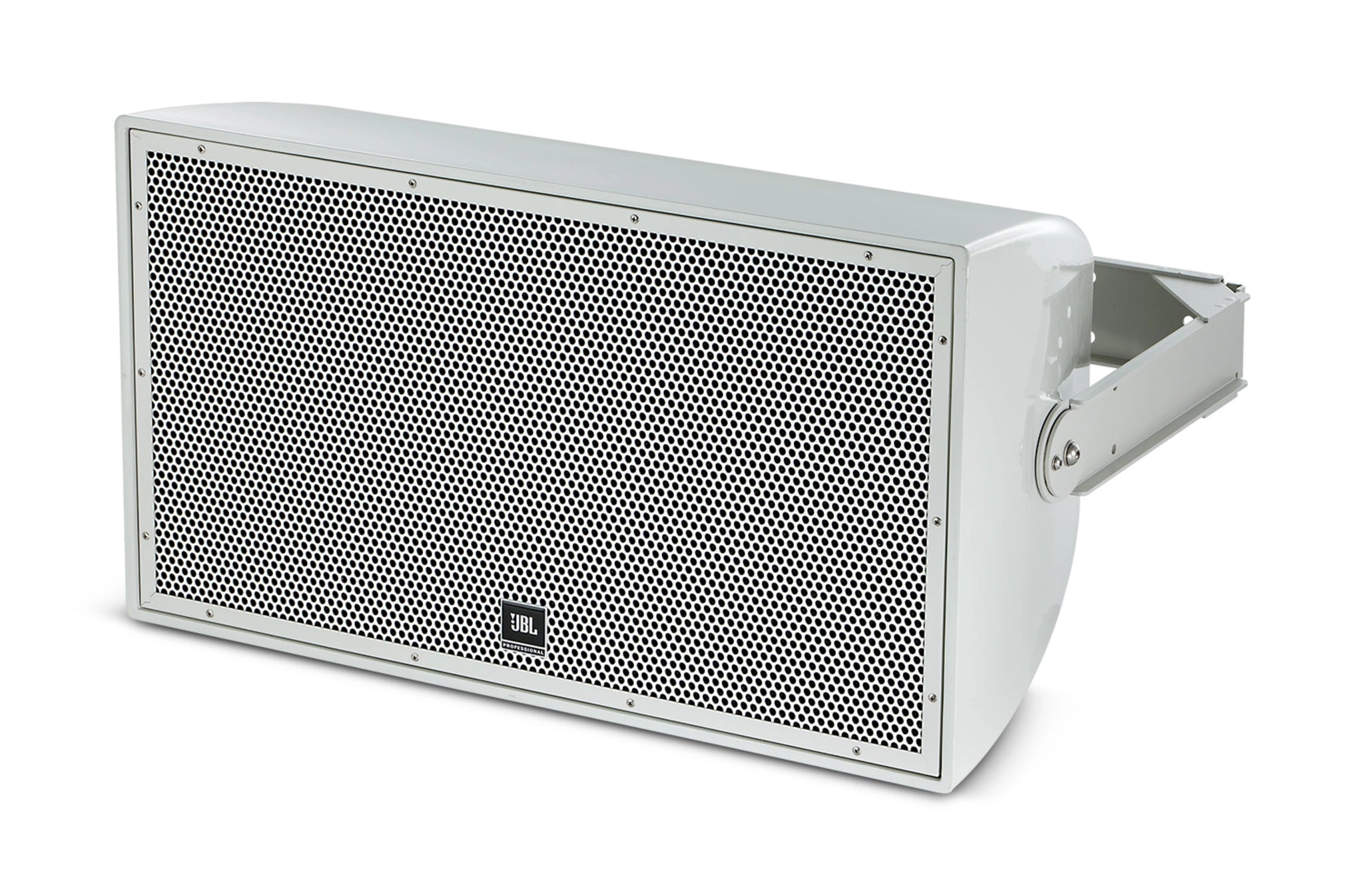

Front-facing JBL AW266-LS High Power 2-Way All Weather Loudspeaker showing 12-inch LF driver

Close-up of JBL AW266-LS High Power 2-Way All Weather Loudspeaker stainless steel mesh grille

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF for Life Safety Applications

The AW266-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.

Features

Weather-Resistant, All Fiberglass Enclosure
EN 54-24 Compliant for life safety applications
60° x 60° Coverage
2262H Differential Drive® Low- Frequency Driver
2432H High Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included

Specification	Details
Frequency Range (-10dB)	54 Hz – 20 kHz
Frequency Response (±3 dB)	102 Hz – 18 kHz
Coverage Pattern	60° x 60° waveguide
Directivity Factor (Q)	15.8
Directivity Index (DI)	12 dB
Crossover Frequency	1.1 kHz
System Power Rating	400 W (1600 W peak), 100 hrs
Maximum SPL (1m)	125 dB SPL (131 dB peak)
Maximum SPL (4m)	112.45 dB
System Sensitivity (1W @ 1m)	98 dB SPL
Sensitivity (1W @ 4m)	87.16 dB SPL
Transformer Taps	70V: 400 W, 200 W, 100 W 100V: 400 W, 200 W
LF Driver	1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal Impedance	8 ohms
Sensitivity (1W @ 1m, within operational band)	96 dB SPL
HF Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (HF)	113 dB SPL
Waveguide	PT-H66HF-1
Enclosure	Hand-laminated fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
Suspension Attachment	2 x M10 for included U-bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety
Grille	Three-layer grille assembly: 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh
Input Connector	CE-compliant covered barrier strip terminals. Accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental	IP55C per IEC 529
Dimensions (H x W x D, horizontal cabinet orientation)	409 x 732 x 452 mm (16.1 x 28.8 x 17.8 in)
Net Weight (each)	25.2 kg (55.5 lb)
