| Frequency Range (-10dB) |
38 Hz – 20 kHz |
| Frequency Response (±3 dB) |
45 Hz – 18 kHz |
| Coverage Pattern |
60° x 40°, rotatable waveguide |
| Directivity Index (DI) |
13 dB |
| Crossover Modes |
Tri-amp/Bi-amp switchable |
| Crossover Frequencies |
300 Hz and 2.3 kHz |
| Transducer Power Rating (AES) |
LF: 1000 W (4000 W peak), 2 hrs / 750 W (3000 W peak), 100 hrs
MF: 350 W (1400 W peak), 2 hrs
HF: 100 W (400 W peak), 2 hrs |
| System Power Rating |
LF: 600 W (2400 W peak), 100 hrs
MF/HF: 200 W (800 W peak), 100 hrs |
| Maximum SPL (1m) |
LF: 127 dB-SPL cont avg (133 dB peak)
Tri-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) / HF: 135 dB-SPL cont avg (141 dB peak)
Bi-amp mode: MF/HF: 133 dB-SPL cont avg (139 dB peak) |
| System Sensitivity of Passive Sections (1W @ 1m) |
MF/HF Section in Bi-amp mode: 108 dB SPL |
| Nominal Impedance |
8 ohms |
| LF Driver |
1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) voice coil |
| Sensitivity (1W @ 1m) — Low Frequency |
97 dB SPL |
| MF Driver |
JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice coil internal driver |
| Sensitivity (1W @ 1m) — Midrange |
108 dB SPL |
| HF Driver |
JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Sensitivity (1W @ 1m) — High Frequency |
115 dB SPL |
| Enclosure |

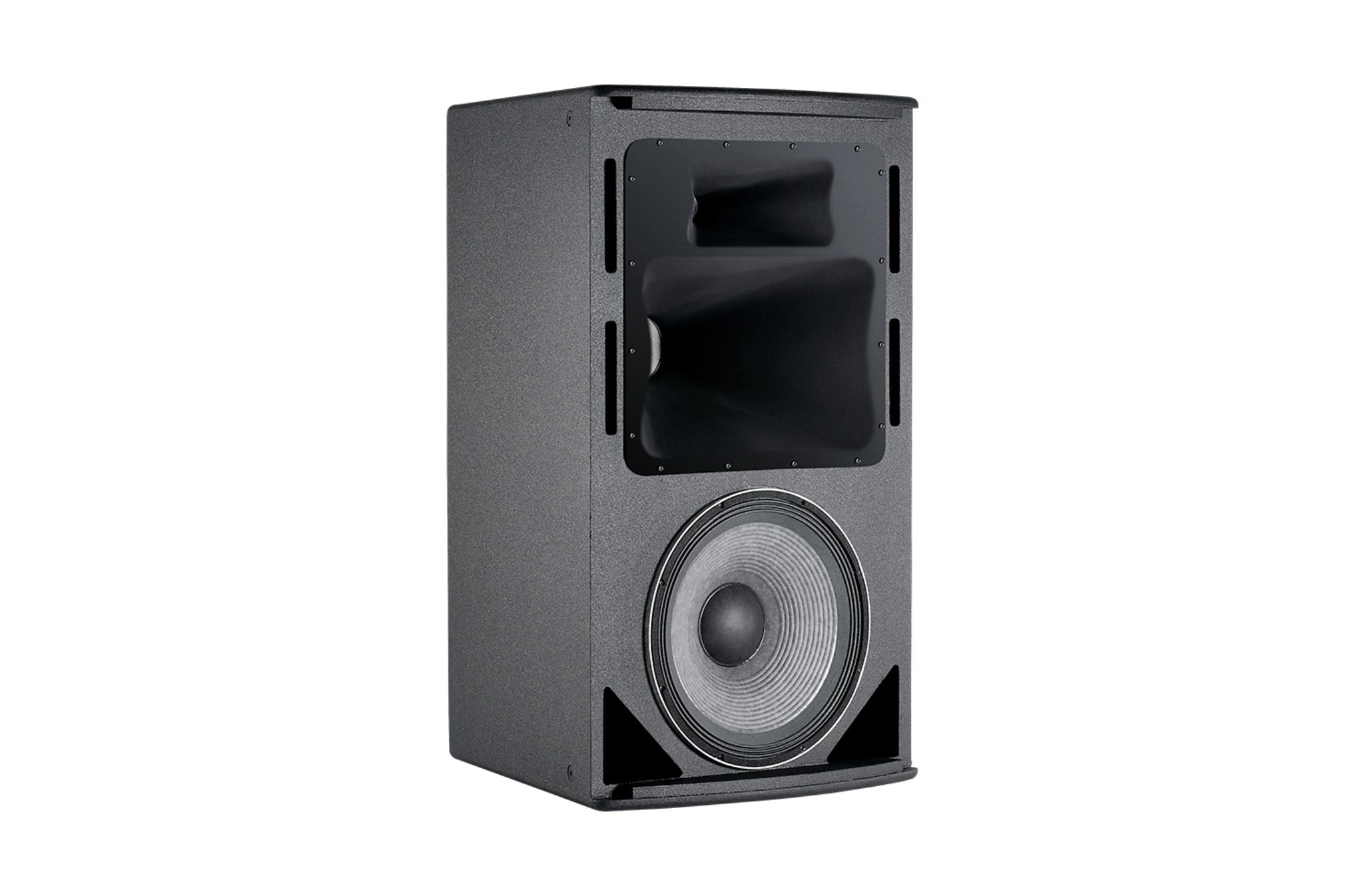

Trapezoidal with 15° side angles, 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood |
| Suspension Attachment |
13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Finish |
Black DuraFlex™ finish. White available upon request. |

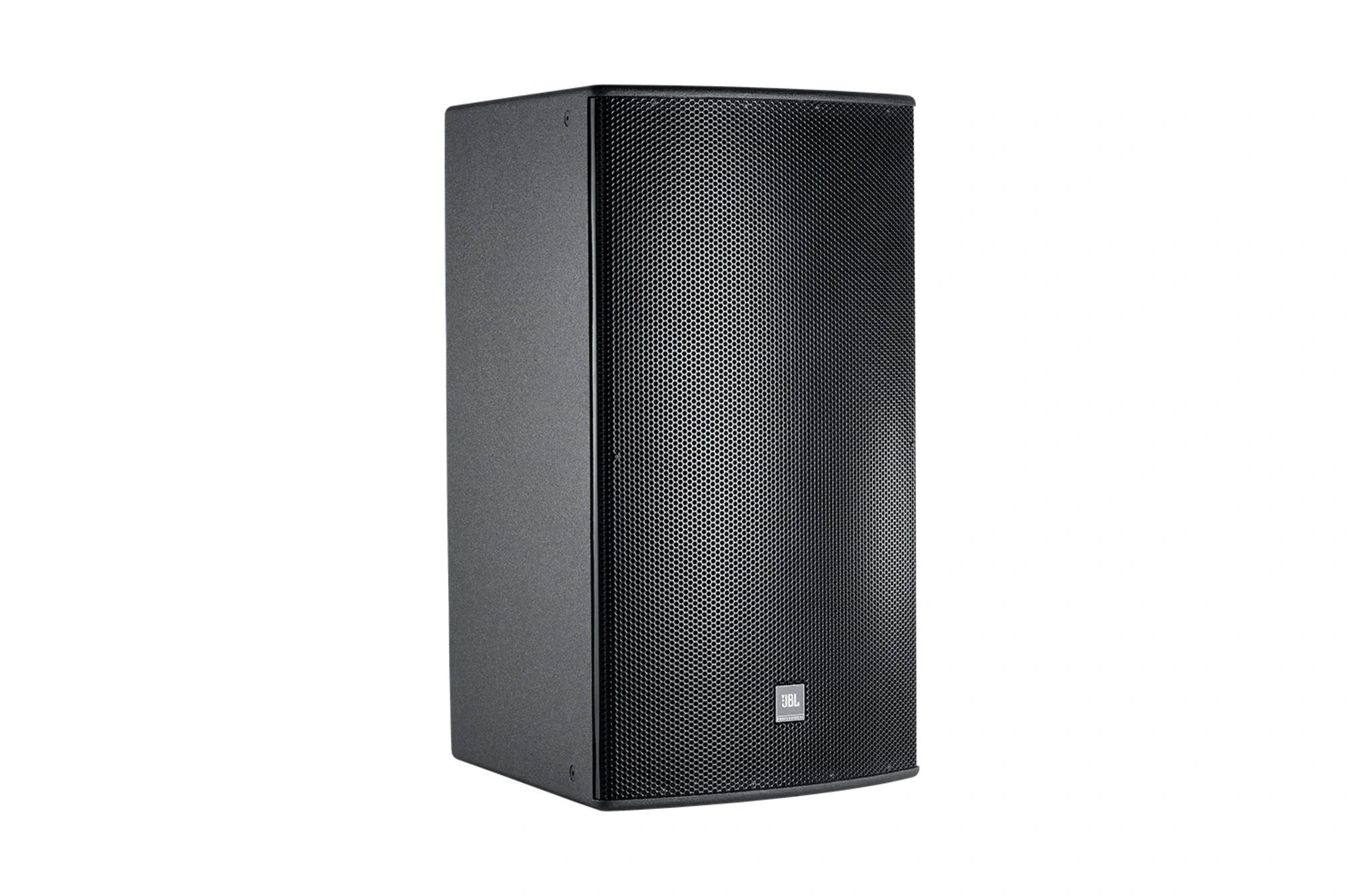

| Grille |
Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing |

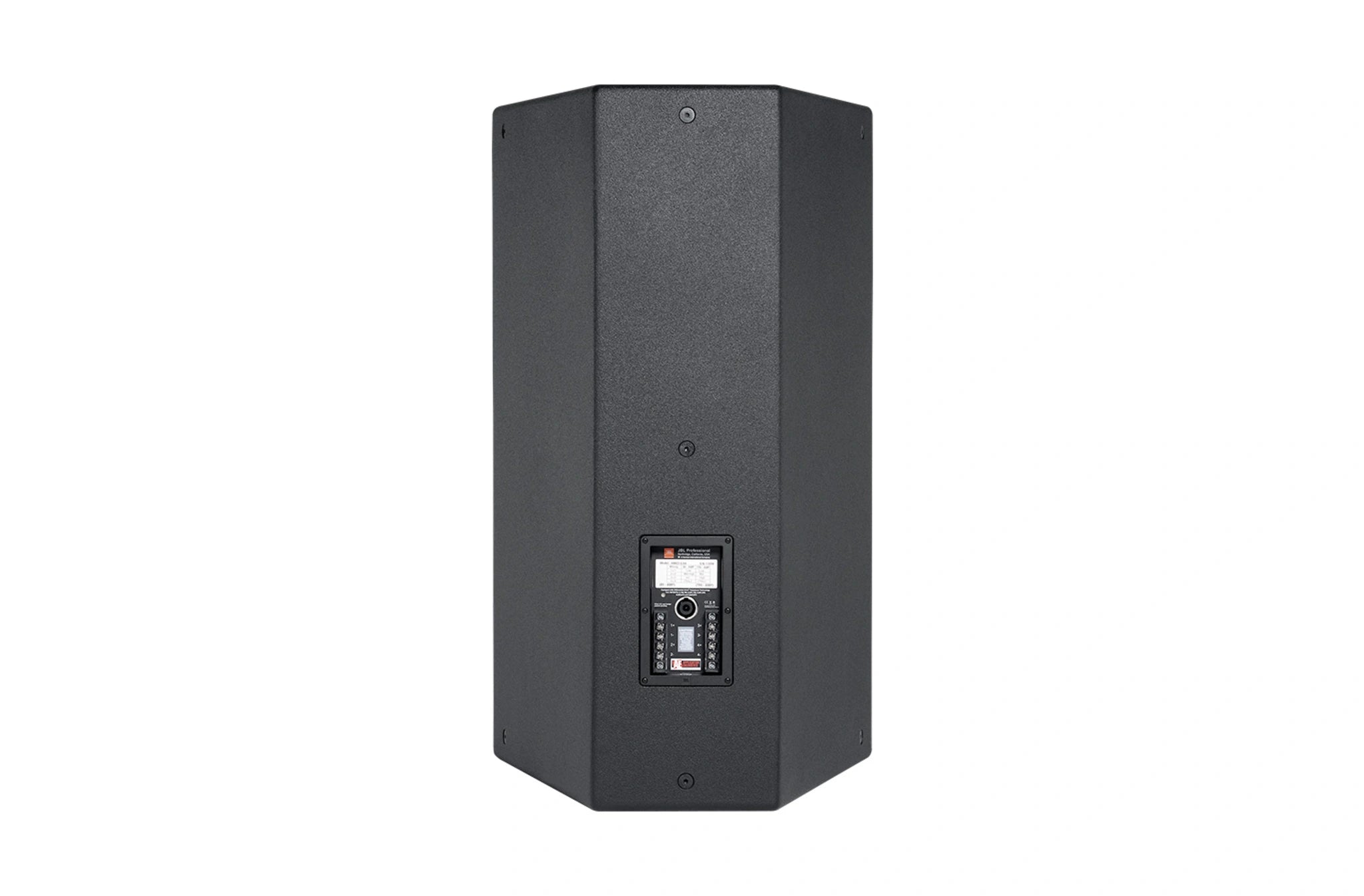

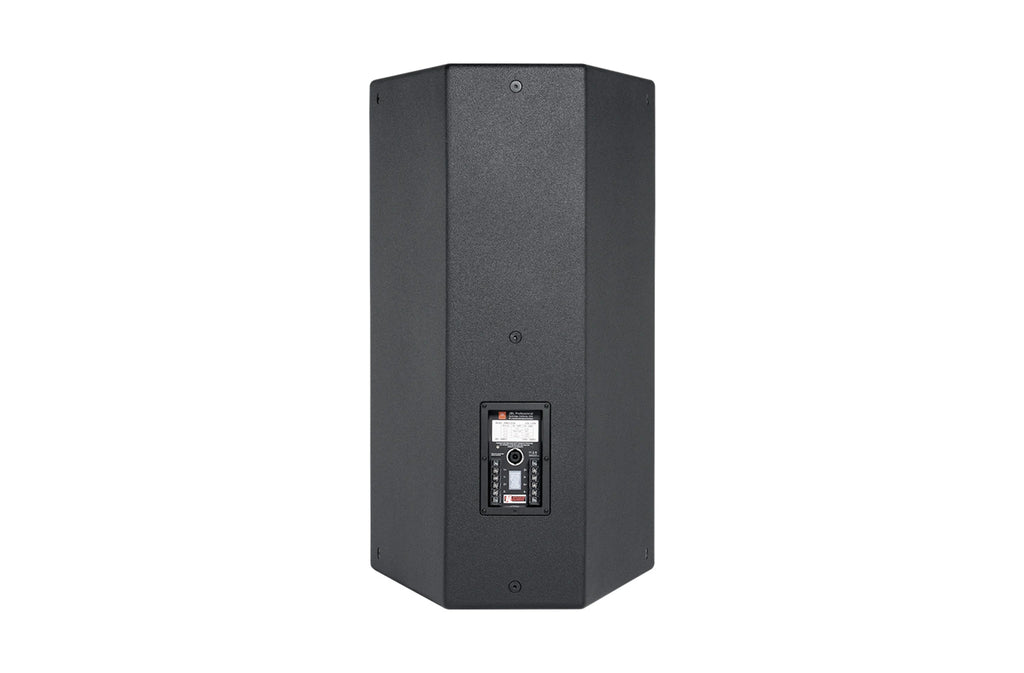

| Input Connector |
NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through. |
| Environmental |
Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D, vertical orientation) |
967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in) |
| Net Weight (each) |
45.8 kg (101 lb) |
| Optional Accessories |
M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide. |
| Nominal LF Driver Impedance |
8 ohms |
| Nominal MF Driver Impedance |
8 ohms |
| Nominal HF Driver Impedance |
8 ohms |
