Description
- Stream To 4 Zones - Independently, Or in Sync: Add network streaming, AirPlay, and Spotify Connect capability to your existing active wired speakers, amplifiers, preamps and receivers. Stream and control 4 different audio outputs at once, control all music wirelessly via our 4STREAM App.
- Multiroom Audio System: Mix and match any combination of Arylic Streamers to create a custom multiroom system and play the same music throughout your home, send different sources to each room at the same time, or create your own custom-defined multiroom zones... All controlled via our 4STREAM App.
- Brilliant Sound Streamed Directly From Your Favorite Providers: Spotify, Amazon Music, Tidal, Qobuz, Napster, TuneIn, Internet Radio, iHeart Radio, QQ Music, QQ FM. The H400 connects directly to your online streaming providers to play high quality audio, avoiding Bluetooth bottlenecks and compression.

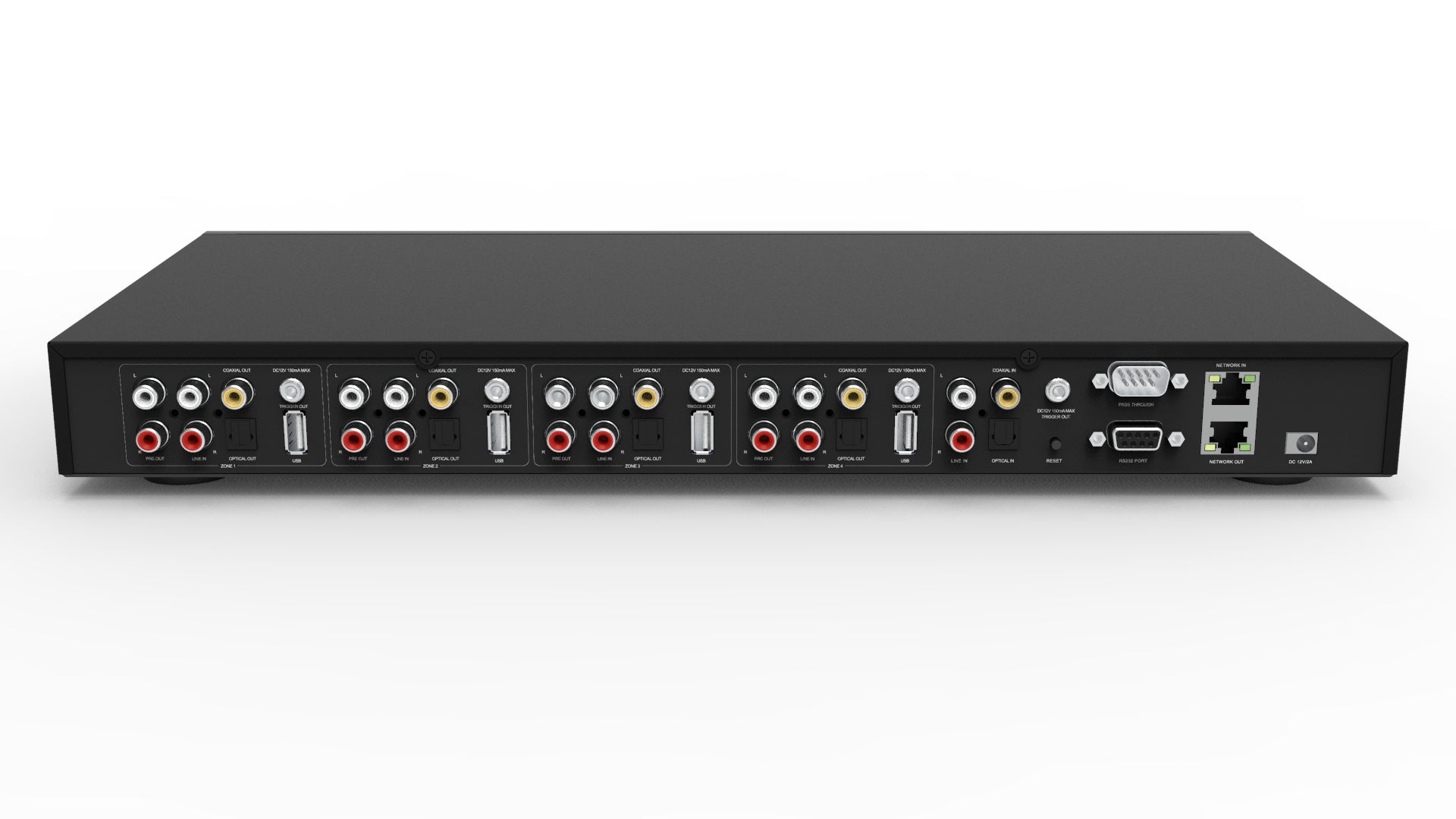

- Stream Any Kind of Audio On One Device: In addition to Direct Streaming from Online Streaming Services, AirPlay, and Spotify Connect, there are multiple digital and analog input and output ports allowing you to connect most of the audio devices in your home.
- Plug and Play: Power up the device and connect to your WiFi router with the Lan cable and it is ready to use.
Smart 4 Zone Streaming Preamplifier
The H400 is a networked 4-zone streaming preamplifier that allows you to directly stream up to 4 audio devices at the same time, per H400 unit.
The H400 supports the most popular smart home systems, Fibaro and Elan, and will be integrated with more smart home brands in the future.
Stream To 4 Zones - Independently, Or In Sync
Add Direct Streaming, AirPlay 2, and Spotify Connect capability to your existing active wired speakers, amplifiers, preamps and receivers.
Stream and control 4 different audio outputs at once, controlled wirelessly via our 4STREAM App.
Stream Any Kind of Audio On One Device
In addition to direct streaming from online streaming services, AirPlay 2, and Spotify Connect, there are multiple digital and analog input and output ports allowing you to connect most of the audio devices in your home.
Brilliant Sound Streamed Directly From Your Favorite Providers
Spotify, Amazon Music, Tidal, Qobuz, Napster, TuneIn, Internet Radio, iHeart Radio, QQ Music, QQ FM.
The H400 connects directly to your online streaming providers to play high quality audio, avoiding Bluetooth bottlenecks and compression.

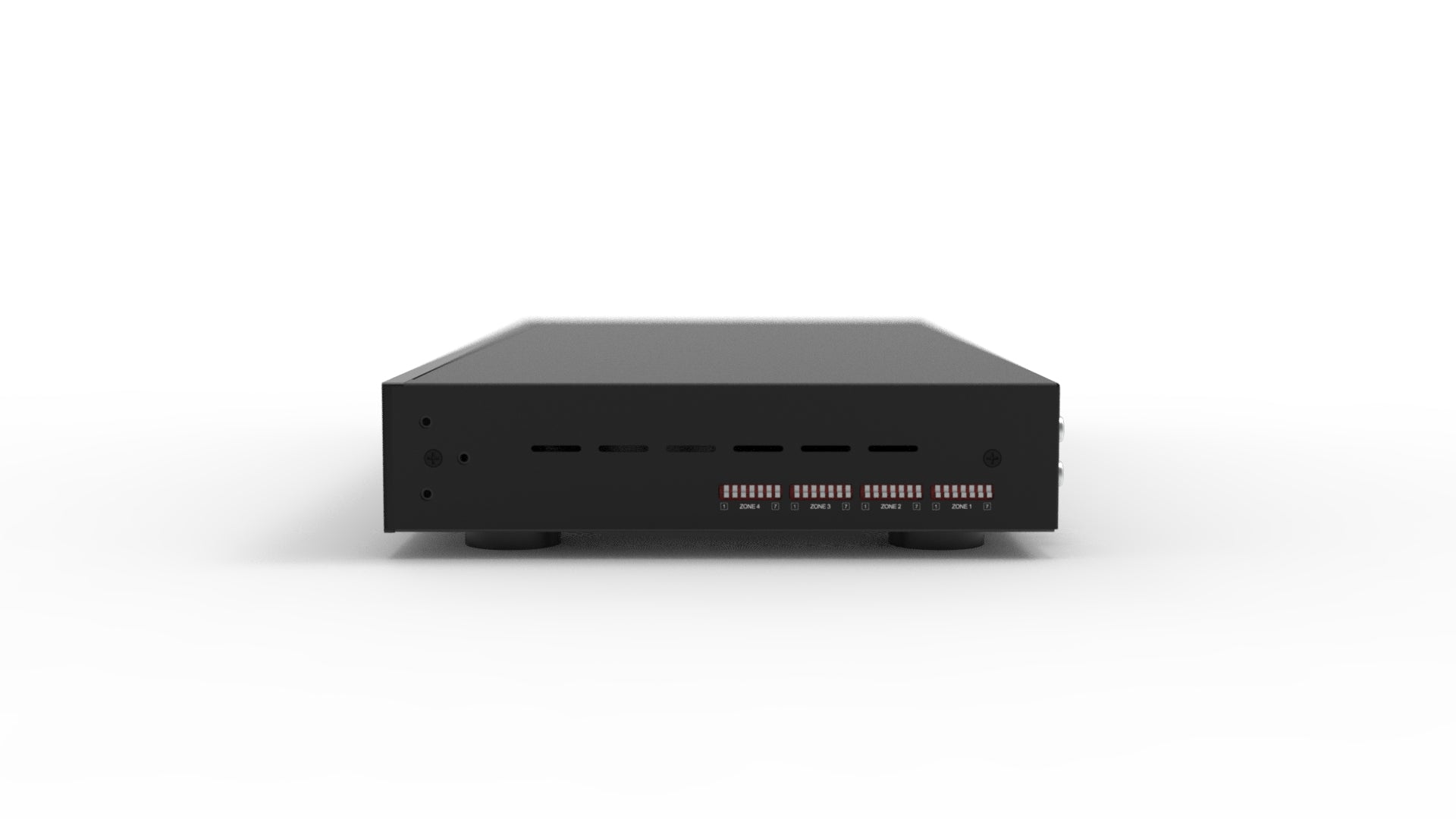

Slim Design - Shelf or Rack Mount
The H400 comes with optional mounting brackets for installation in standard 19" racks (1U height).
LAN And Smart Home Integration
H400 comes ready to integrate with Fibaro and ELAN Smart Home installations, with an RS-232 port to connect to your smart home control unit.
Integrate and control your H400 with your smart home programs.
LAN And Smart Home Integration
H400 comes ready to integrate with Fibaro and ELAN Smart Home installations, with an RS-232 port to connect to your smart home control unit.
Integrate and control your H400 with your smart home programs.
Package Includes
H400, User Manual, Ethernet Cable, 12V 2A DC Power Adapter, Rack Mount Brackets x2.

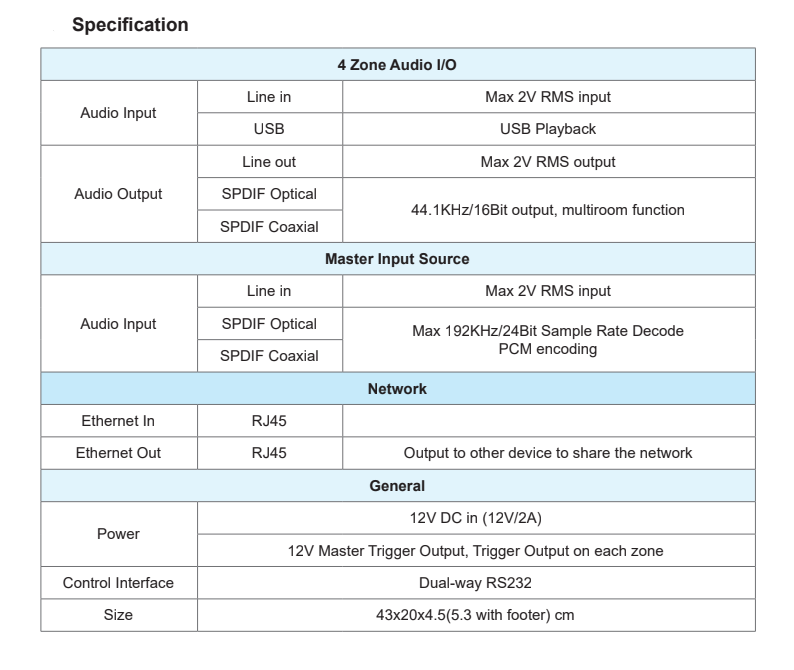

| Multi-Zone Audio System Specifications | |
|---|---|
| Firmware | |
| Newest Firmware Version | 4.6.415145.35 |
| Connectivity | |
| WiFi | IEEE802.11 b/g/n 2.4G |
| Bluetooth | 5.0 SBC/AAC, 15M, BT Receiver |
| Wired Network - Input | Ethernet Single 10/100M RJ45 |
| Wired Network - Output | Ethernet RJ46 Out (Share network with other devices) |
| Streaming Protocols | |
| Supported Protocols | AirPlay 2, DLNA, UPnP, Spotify Connect, Qplay |
| Audio Format Support | |
| Music Format | FLAC/MP3/AAC/AAC+/ALAC/APE/WAV |
| Audio Format - Decoding | Up to 192kHz/24bits |
| Audio Format - Output | Up to 44.1kHz/16bits (CD Quality) |
| Audio Specifications | |
| Frequency Response | 20Hz - 20kHz |
| 4-Zone Interfaces | |
| Zone Audio Input | Analog RCA In (Max 2V RMS input) |
| Zone Audio Output | Analog RCA Out (Max 2V RMS Output) |
| Zone Trigger Output | 12V Trigger Output (Per Zone) |
| Master Interfaces | |
| Master Audio Input | Analog RCA In (Max 2V RMS input) |
| Master Digital Input - Optical | Optical Input (TOSLINK) |
| Master Digital Input - Coaxial | Coaxial Input (S/PDIF) |
| Master Digital Output - Optical | Optical Output (TOSLINK) |
| Master Digital Output - Coaxial | Coaxial Output (S/PDIF) |
| Master Trigger Output | 12V Trigger Output x1 |
| Master Control | Dual-way RS232 |
| Storage & USB | |
| Local Storage | Mobile device memory, NAS, USB pen drive/Stick |
| USB Host | USB pen drive/stick (1000 songs limited) |
| Power Specifications | |
| Power Input | 12V / 2A |
| LED Status Indicators | |
| ⚪ White |
WiFi & Network Mode: • Flashing fast = Device is booting • Flashing slow = Waiting for WiFi connection • Solid = WiFi is connected |
| 🟢 Green | Line In 1 (Zone Line In) |
| 🔴 Red | USB Mode |
| 🟡 Yellow | Line In 2 (Master Line In) |
| 🟣 Magenta | Master Optical Input |
| 🔵 Cyan | Master Coaxial Input |
| Physical Specifications | |
| Dimensions | 43 x 20 x 4.5cm (5.3cm with footer) (16.93 x 7.87 x 1.77in / 2.09in with footer) |
| Weight | 3kg (6.6 lbs) |
| Working Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
