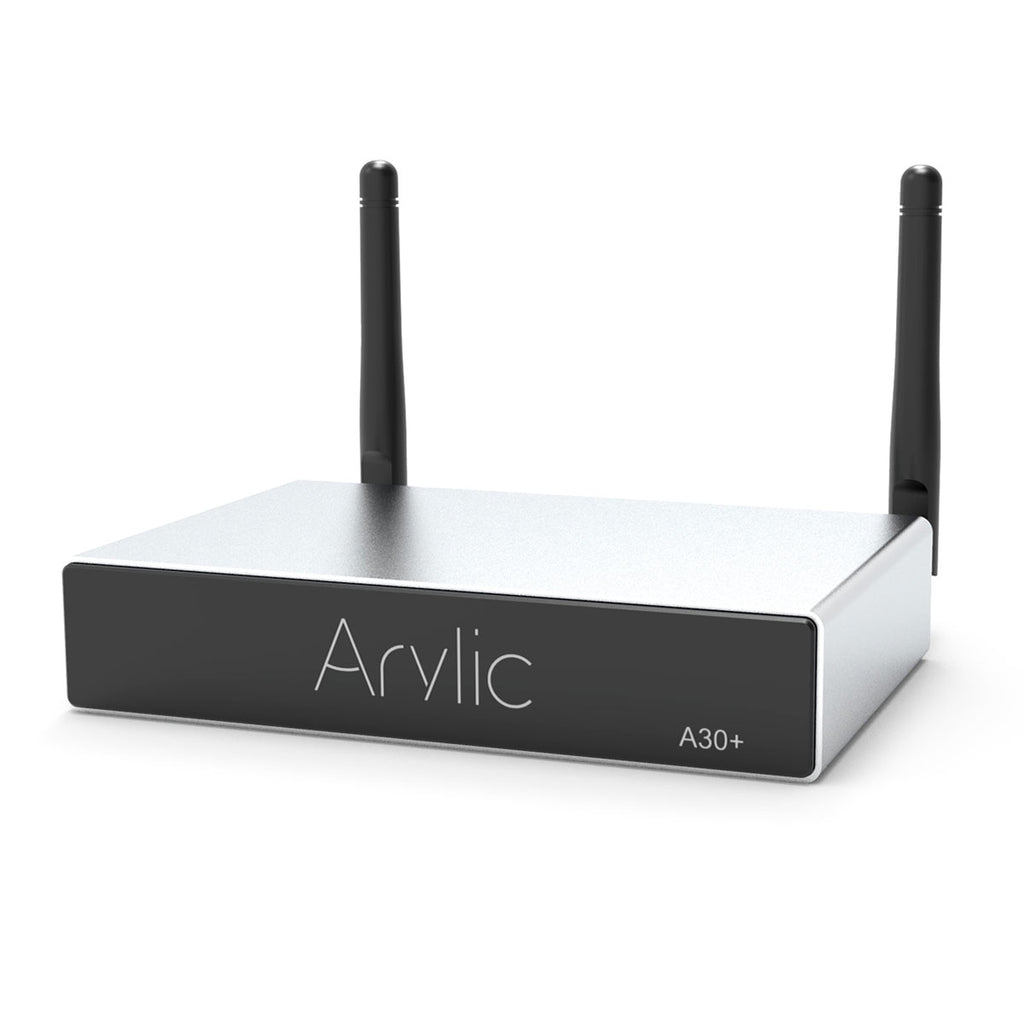

Mini Stereo Amplifier
Small But Complete In Every Detail
A30+ mini stereo amplifier packs 30 watts per channel which is perfect to your desktop stereo system.
Enjoy the full functionality with wireless streaming: WiFi, AirPlay, Spotify Connect, Qplay, DLNA, UPnP, Bluetooth 5.0 and full features of our 4STREAM App: Online music, Online Radio, EQ Settings, alarm clock and more.
So does includes the ACPWokbench tuning tool features. The compact stereo amplifier and sliver surface makes your desktop looks more clear and premium.

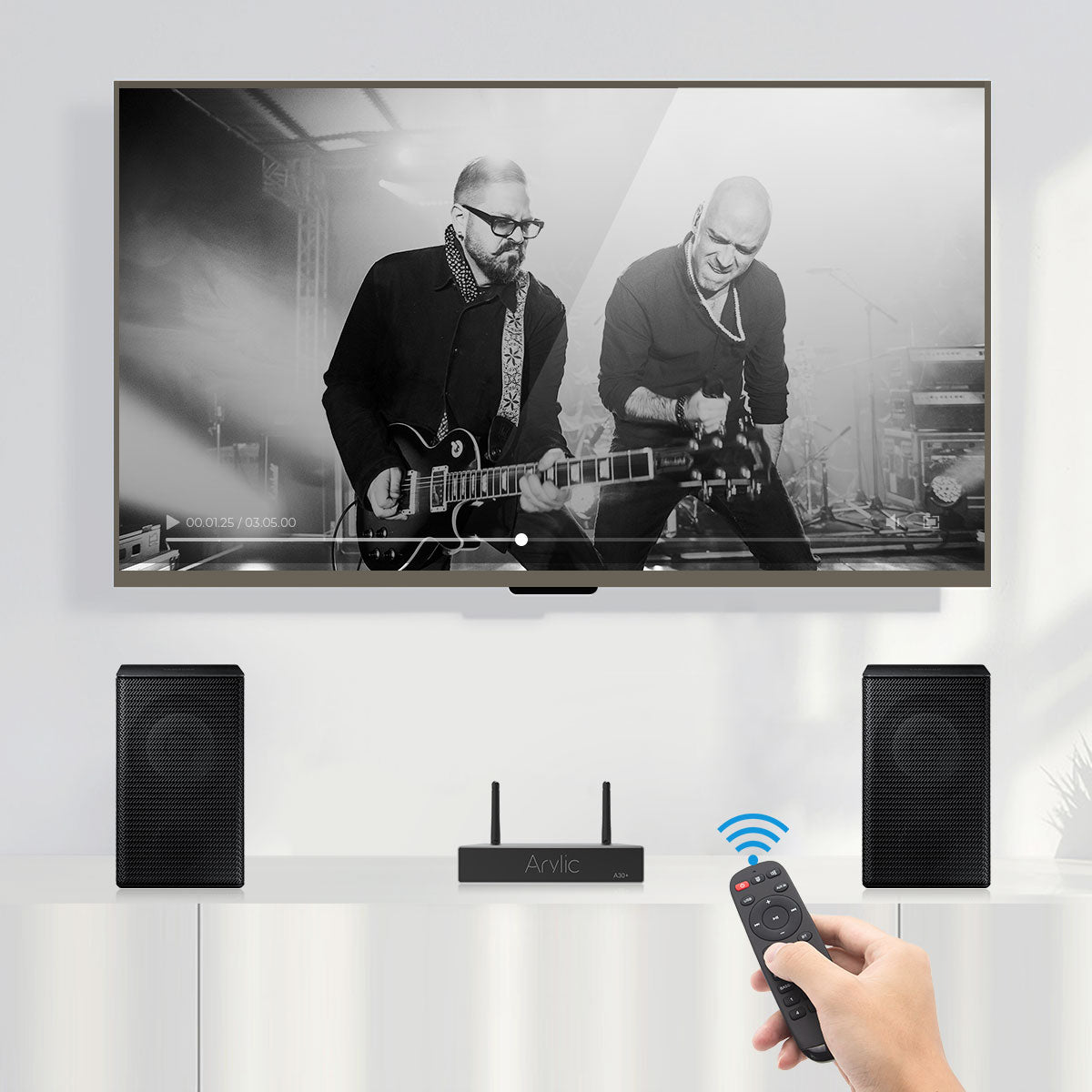

Amplifier For Desktop
Best For Your First WiFi Stereo Amplifier
Our wireless streaming system is designed to be very simple, even for people who are not familiar with the electronics can quickly get started. There is clear step by step instructions in the app.
After the first setup of A30+ small stereo amplifier, you can stream directly from iPhone, iPad or Mac by Airplay or stream directly from Spotify both without app. The whole family can easily get started.
A30+ is a WiFi and Bluetooth amplifier for wired speakers.
Play High Quality Audio Without The Hassle
Streaming by WiFi has stronger range signal and high quality audio transmission.
With A30+ mini speaker amp, you can stream anytime, anywhere with far distance from the device. Upgrade your listening experience far from Bluetooth streaming before.
Hook Up Whole House Audio
A30+ mini audio amplifier can play a different song in different rooms, or the same track in every room, or play some rocky music for whole house party!
Bring Hi-end music to every rooms and controlled by one single device.
Versatile Playing
Play from Amazon Music, Spotify, TIDAL, Qobuz, iHeartRadio, TuneIn, Napster, phone storage, NAS, USB stick,line in source, bluetooth source and more.
Stream any audio you want all in one A30+ small audio amplifier.
Personalize Your Sounds

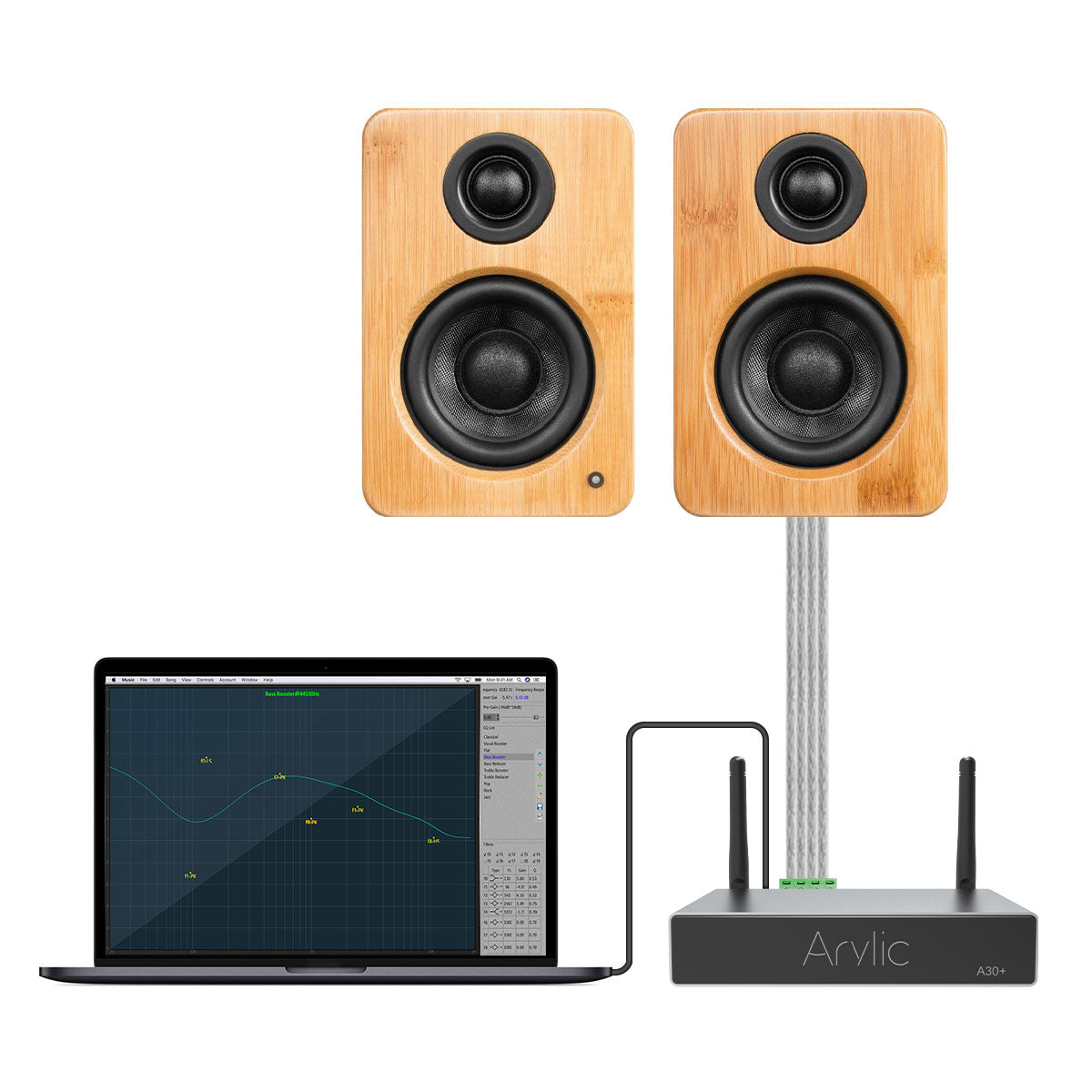

A30+ mini stereo amplifier supports ACPWorkbench tuning tool which allows you do specific EQ adjustment, L/R balance, dynamic range and more.
Set your favorite tune with different type of music.
Personalize Your Sounds
A30+ mini stereo amplifier supports ACPWorkbench tuning tool which allows you do specific EQ adjustment, L/R balance, dynamic range and more.
Set your favorite tune with different type of music.

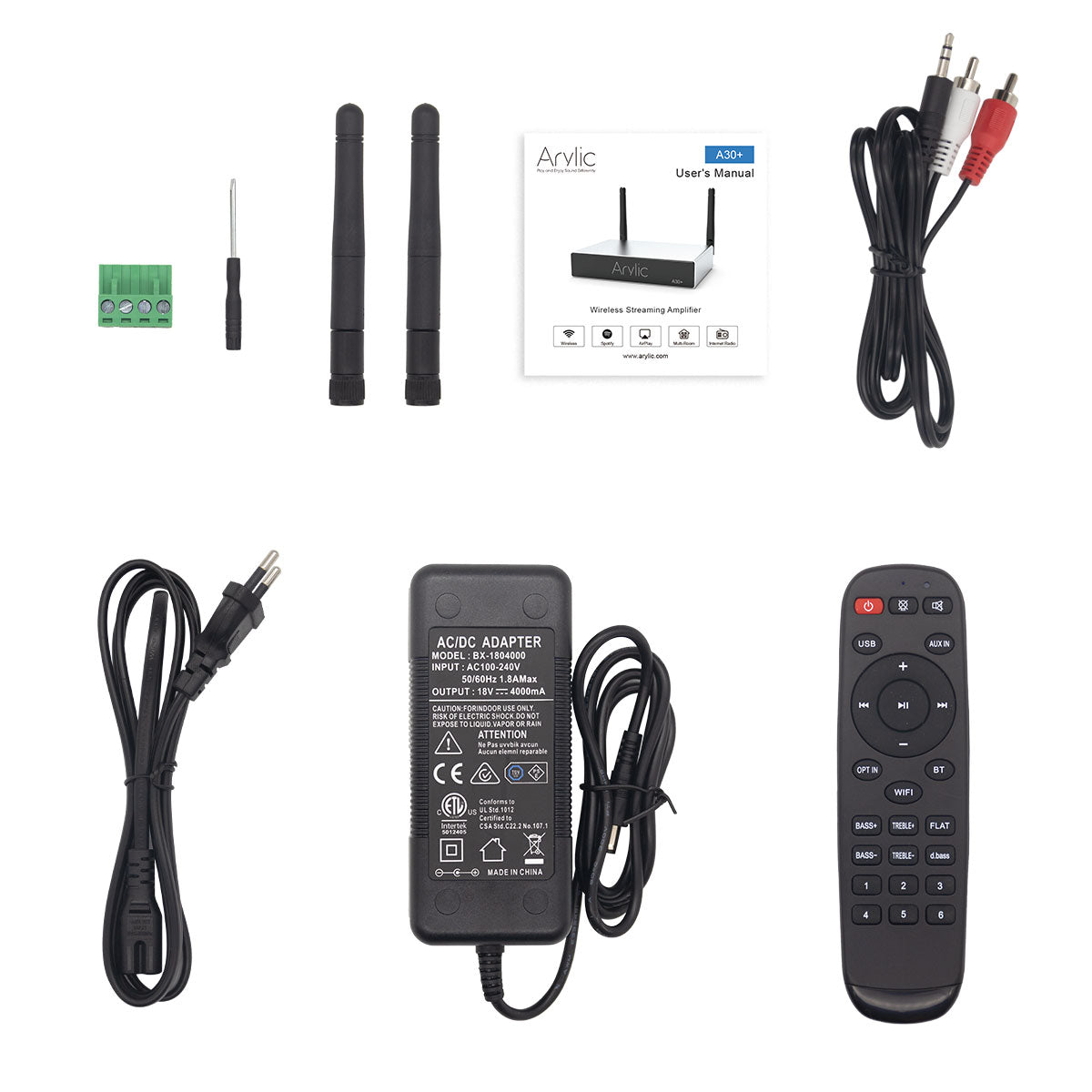

Package Includes

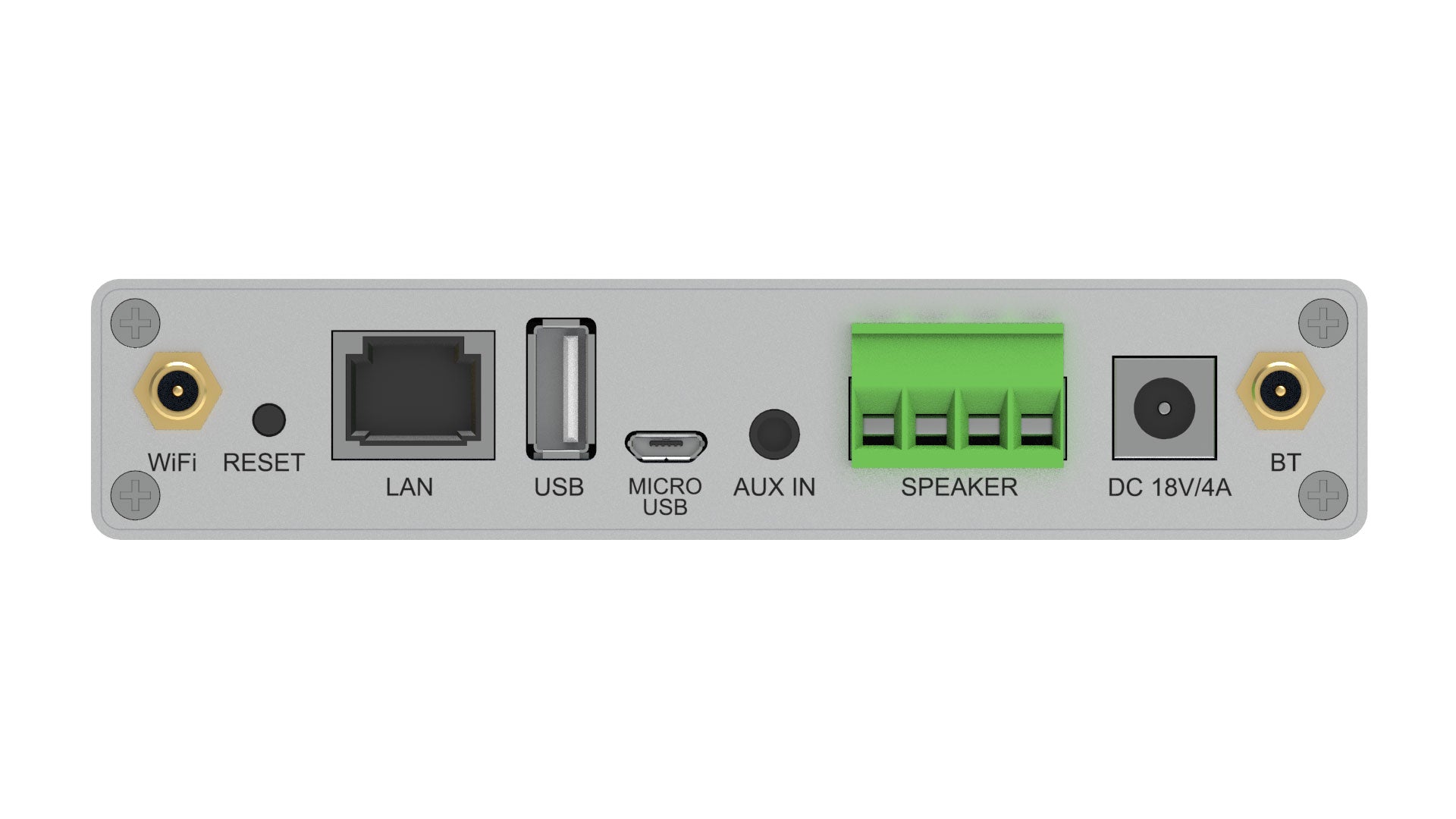

A30+ WiFi Audio Amplifier, User Manual, Remote, 18V 4A DC Power Adapter, External Antennas (Bluetooth & WiFi), 2-1 RCA Cable, Screw Driver, 4 Pin Phoenix Connector (for speakers).

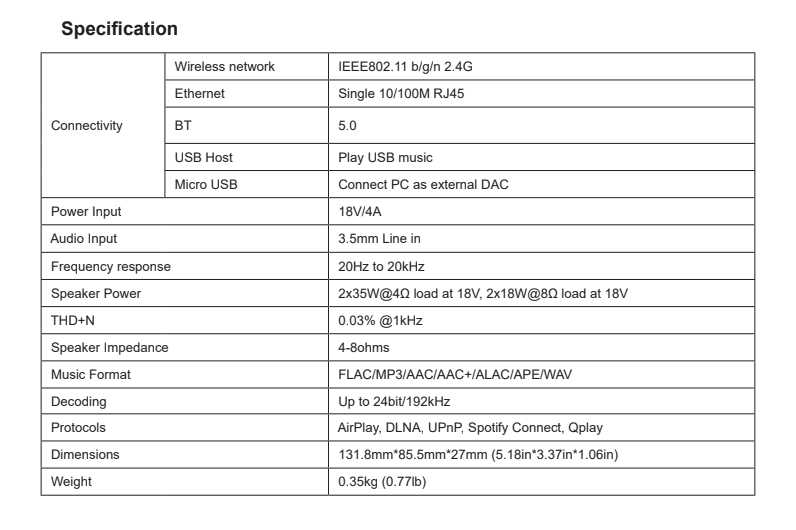

| Product Specifications | |
|---|---|
| Firmware | |
| Newest Firmware Version | 4.6.415145.35 |
| Connectivity | |
| WiFi | IEEE802.11 b/g/n 2.4G |
| Bluetooth | 5.0 SBC/AAC, 15M, BT Receiver |

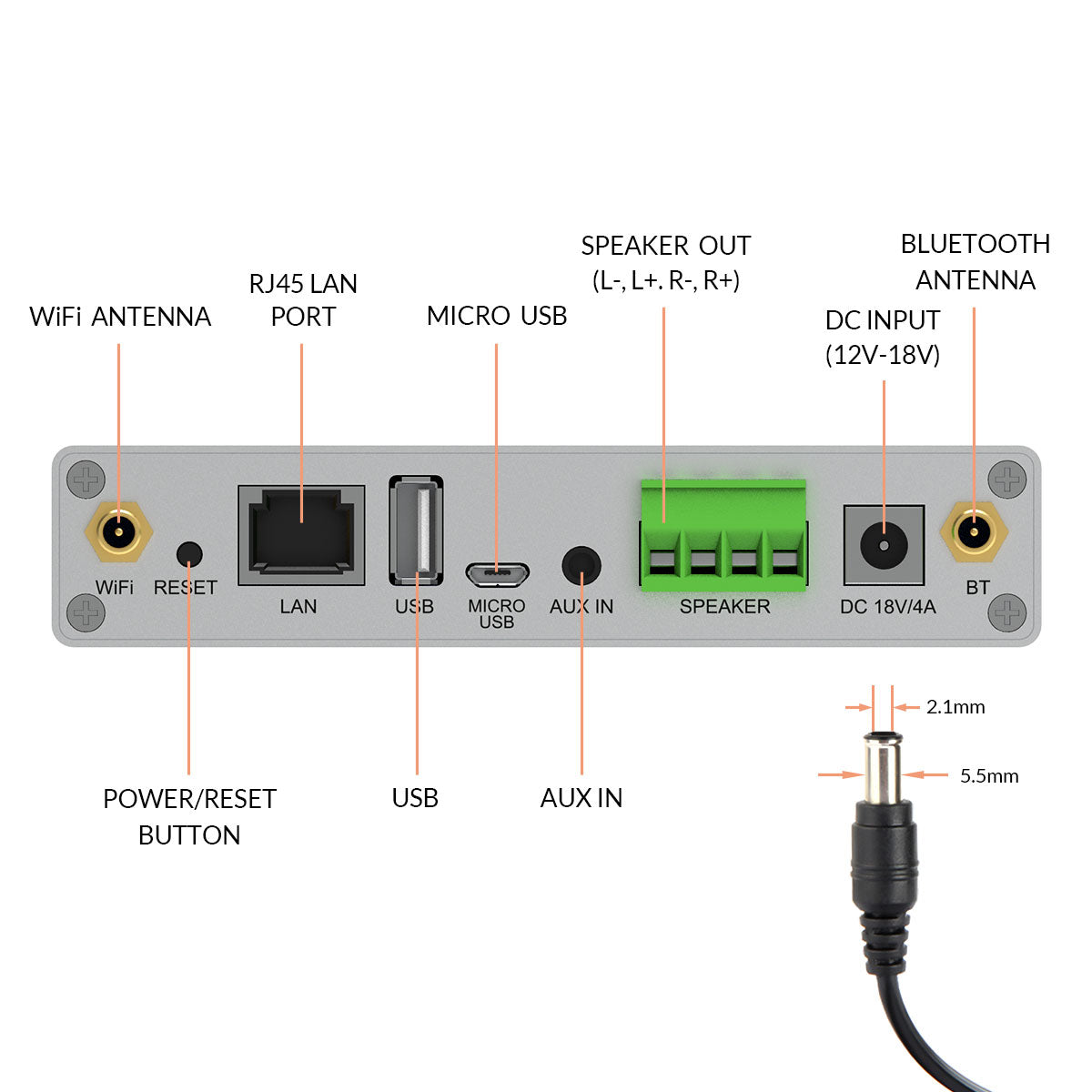

| Wired Network | Ethernet Single 10/100M RJ45 |
| Power | |
| Power Input | 12V-18V/DC |
| Audio Input/Output | |
| Audio Input - Analog | AUX (1Vrms) |
| Audio Input - Digital | Micro USB Input |
| Audio Output | Analog: Speaker Out |
| Amplifier & Speaker | |
| Amplifier Chip | TPA3116 |
| Speaker Power | 2 x 35W @ 4Ω load at 18V 2 x 18W @ 8Ω load at 18V |
| Speaker Impedance | 4-8Ω |
| Audio Specifications | |
| Frequency Response | 20Hz to 20kHz |
| THD + N | <0.03% @ 1kHz/1W/4Ω |
| Music Format | FLAC/MP3/AAC/AAC+/ALAC/APE/WAV |
| Audio Format Decoding | Up to 192kHz/24bits |
| Audio Format Output | Up to 44.1kHz/16bits (CD quality) |
| Connectivity Protocols | |
| Supported Protocols | AirPlay, DLNA, UPnP, Spotify Connect, Qplay |
| NAS Support | DLNA compatible NAS |
| USB & Storage | |
| USB Host | USB pen drive/stick (1000 songs limited) |
| Physical Specifications | |
| Dimensions | 131.8mm × 85.5mm × 27mm (5.18in × 3.37in × 1.06in) |
| Weight | 500g |
| Working Temperature | 0°C ~ 40°C |
| Controls & Indicators | |
| Power Button |
Device On: • Short press once: Switch input mode • Long press once: Switch off • Short press twice: Disconnect WiFi/Bluetooth & enter pairing mode • Short press three times: Restore factory settings Device Off: • Short press: Switch on |

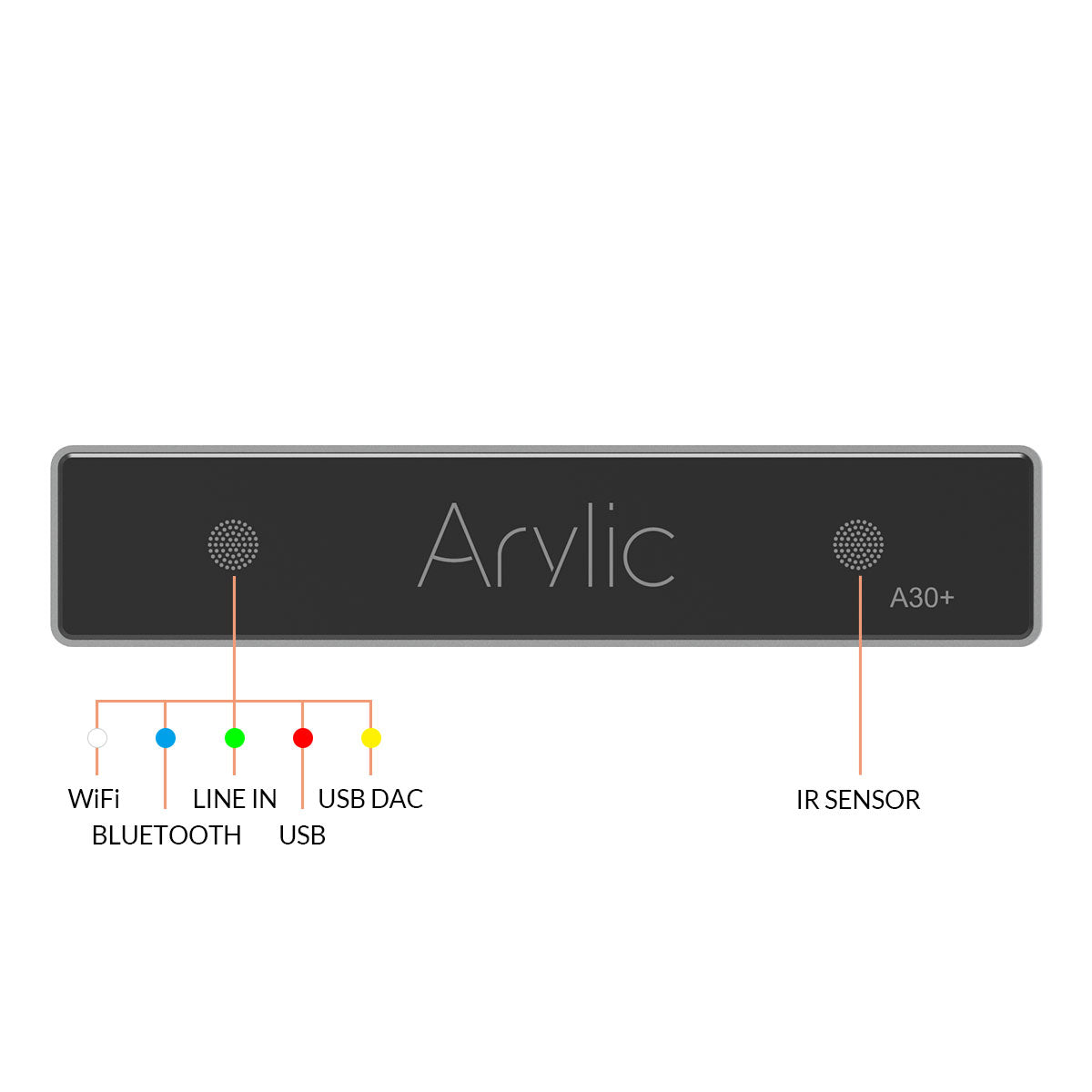

| LED Indicators | 🔵 Blue (Bluetooth Mode): Flashing slow = Waiting for connection; Solid = Connected ⚪ White (WiFi Mode): Flashing fast = Booting; Flashing slow = Waiting for connection; Solid = Connected 🟢 Green: Line in mode 🔴 Red: USB mode 🟡 Yellow: PC connected |
| Included Accessories | |
| In The Box | • Power Supply • Screw Driver • RCA Cable • Remote Control • 4Pin Phoenix Connector • External Antenna (x2) • User Manual |
