| Frequency Range (-10dB) |
95 Hz – 19 kHz |
| Power Capacity |
110 W (440 W peak) continuous pink noise (2 hrs)
75 W (300 W peak) continuous pink noise power (100 hrs) |
| Sensitivity (1m/1W) |
89 dB |
| Coverage Angle |
110° conical |
| Maximum SPL (1m) |
109 dB continuous pink noise (115 dB peak) |
| Nominal Impedance |
12 ohms |

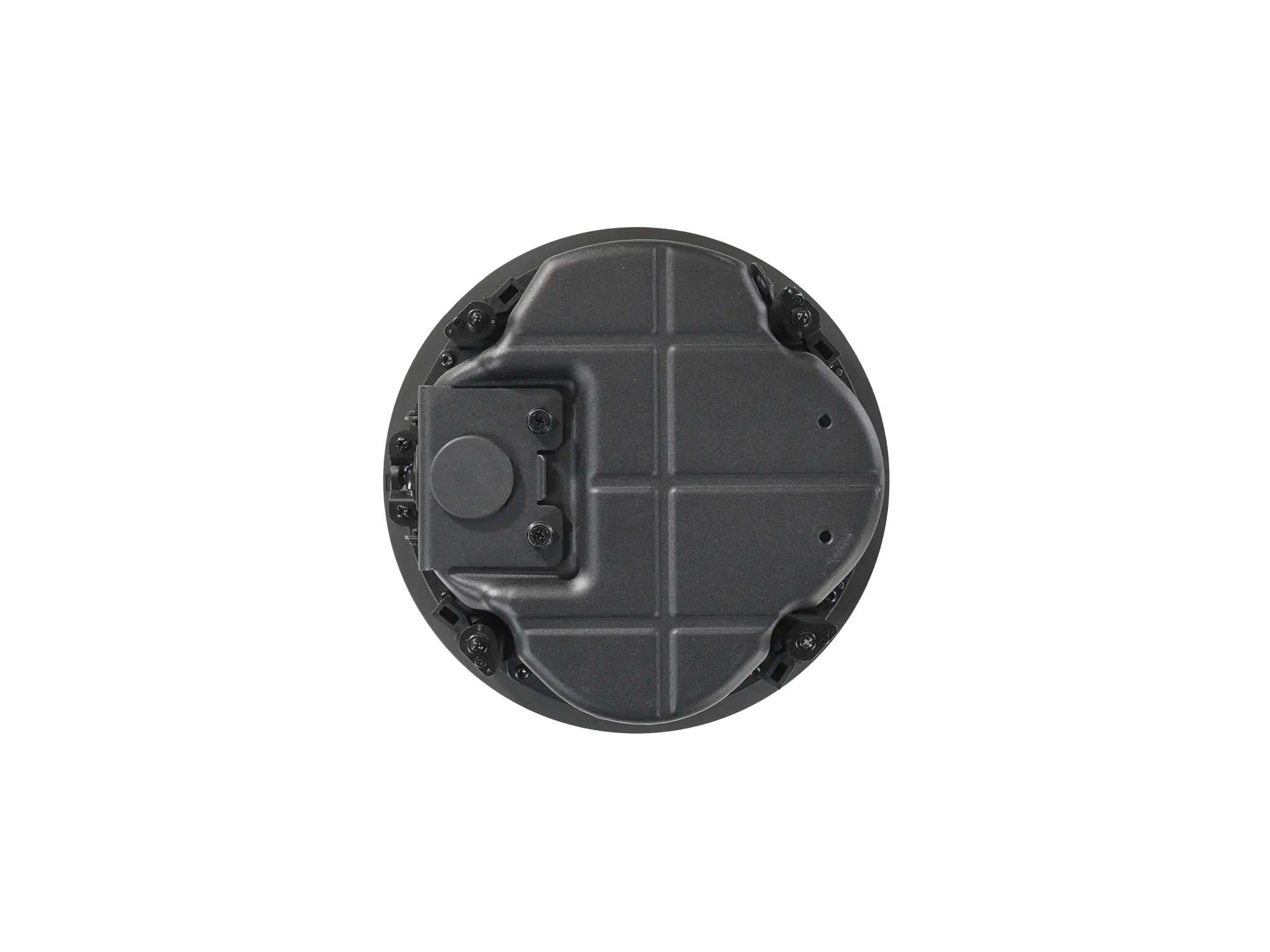

| Transformer Taps |
70V: 60 W, 30 W, 15 W, 7.5 W
100V: 60 W, 30 W, 15 W |
| Drivers |

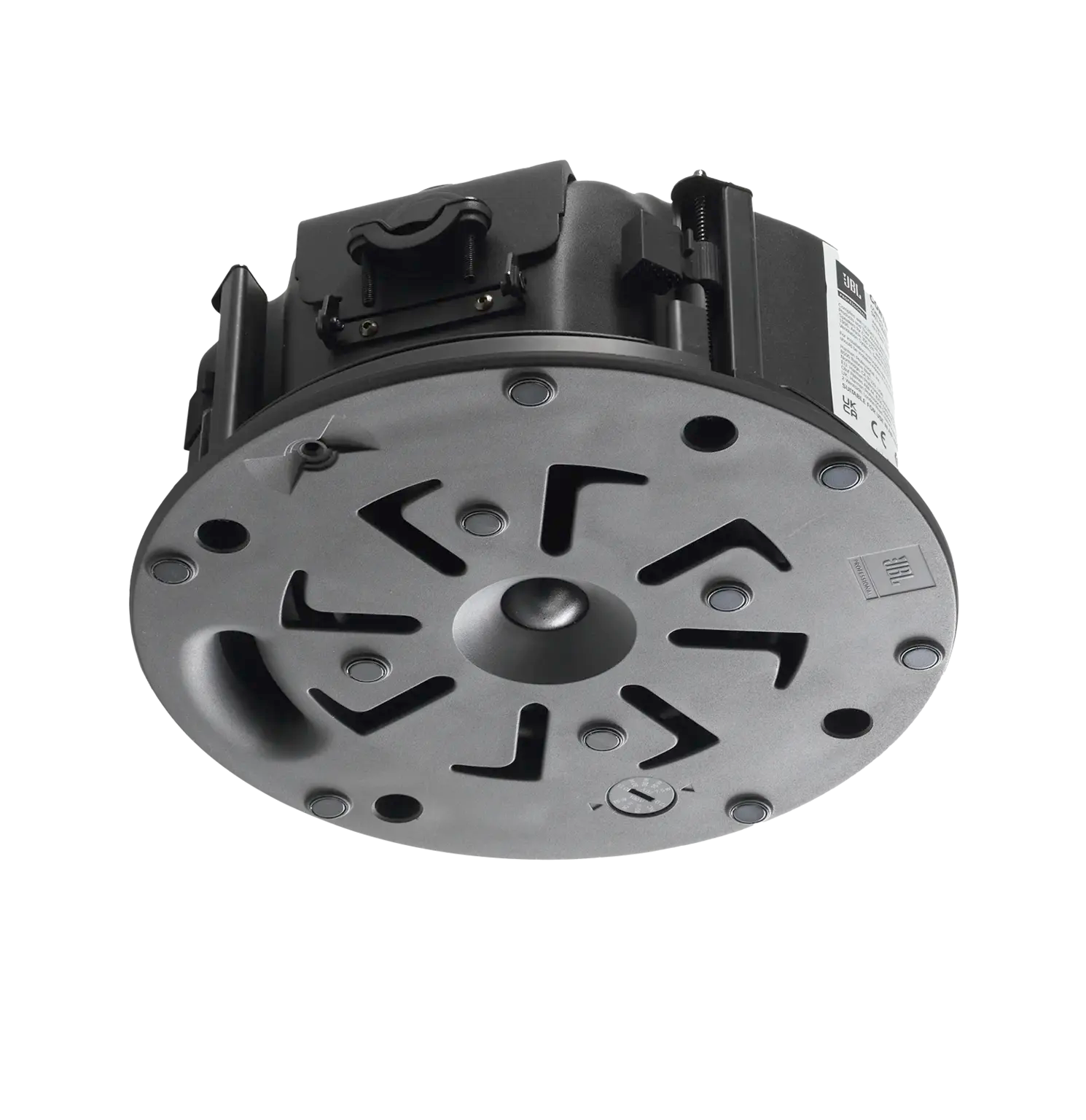

LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet
HF: 25 mm (1.0 in) textile soft-dome with neodymium magnet assembly |
| Ceiling Cutout Size |
223 mm (8.8 in) |
| Dimensions |

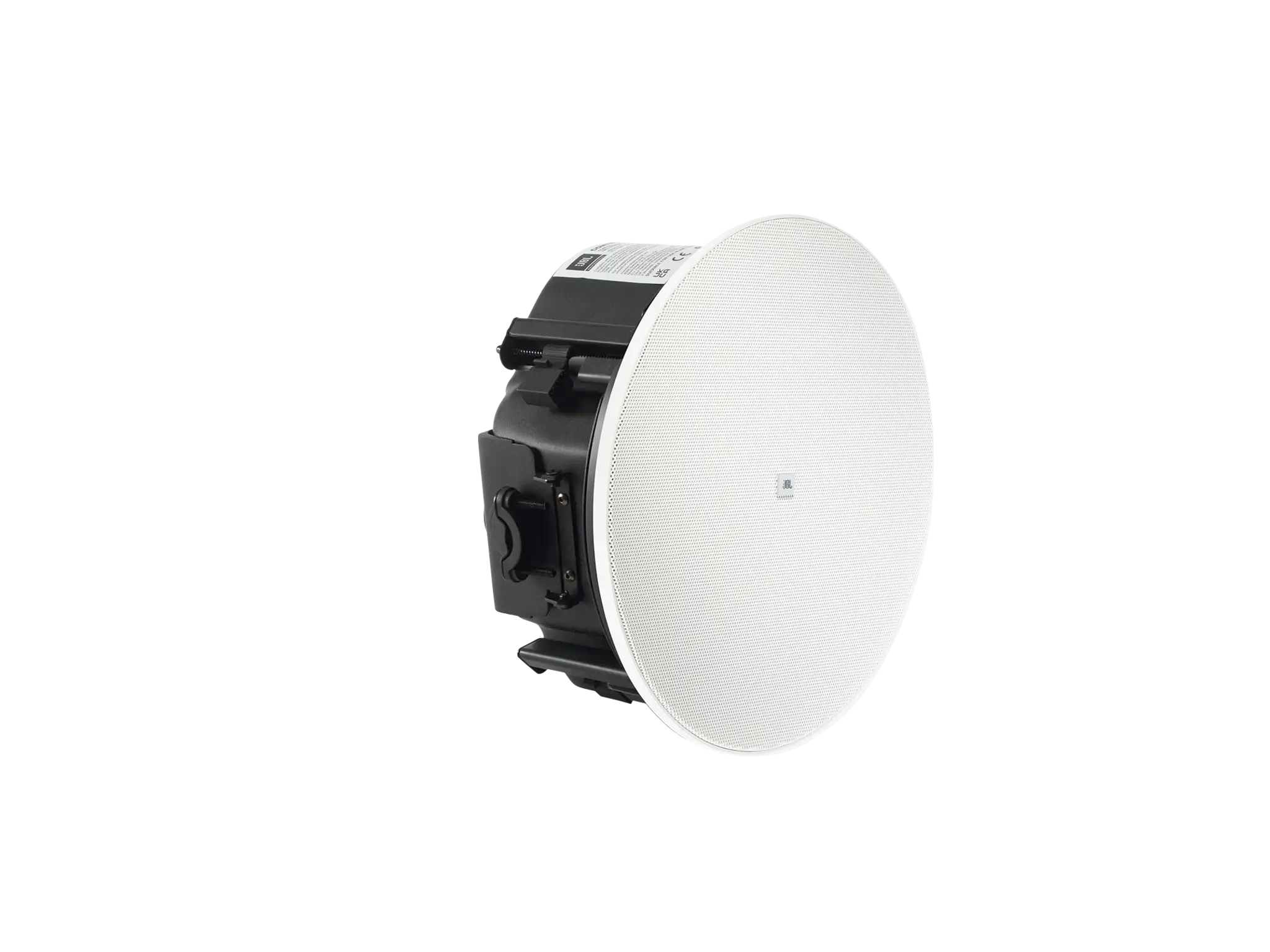

107 mm (4.2 in) H x 253 mm (9.9 in) dia.
98 mm (3.9 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating |
Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A listed |
| Environmental |
IP33 rating per EN/IEC 60529
Operating temperature: 0°C to 45°C |

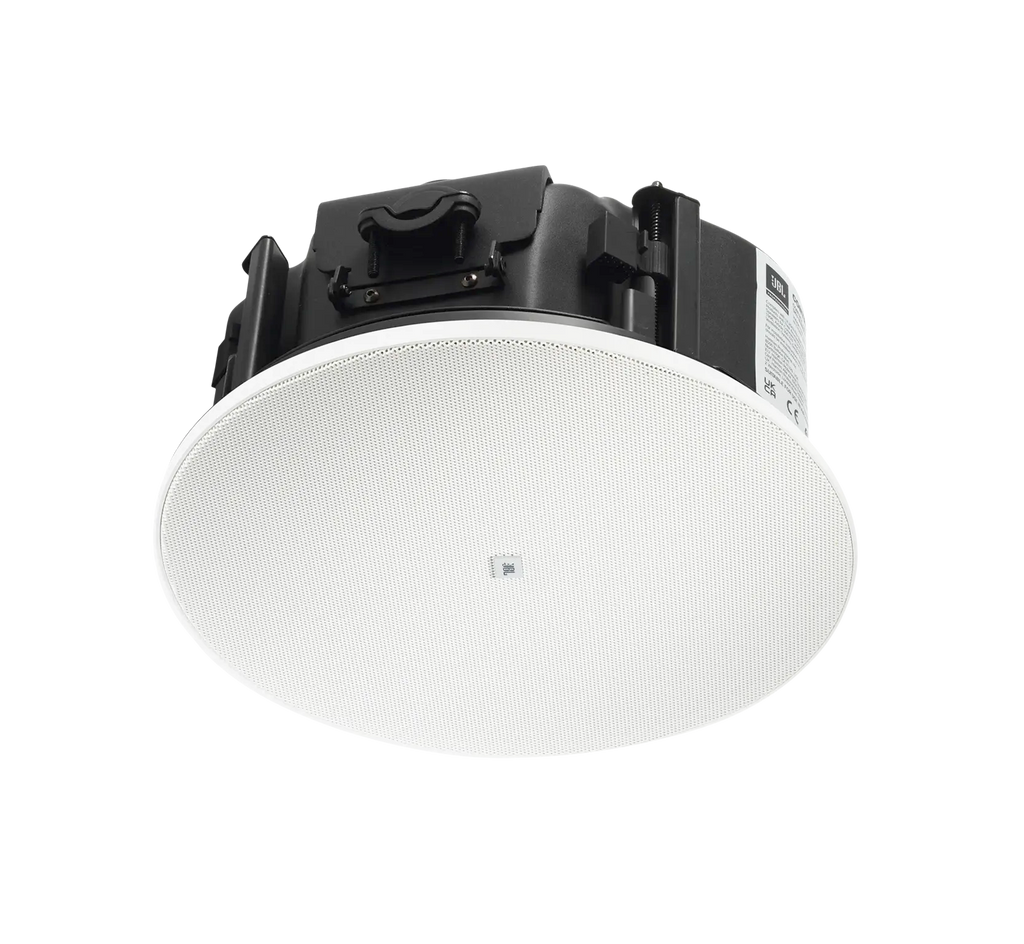

| Color |
Stock grille is white (RAL9003), paintable |
| Net Weight (each) |
3.9 kg (8.6 lb) |
| Shipping Weight (pair) |
12.58 kg (27.73 lb) |
| Optional Accessories |
JBL-MTC-426BG black (RAL9004) round grille
JBL-MTC-426SG white (RAL9003) square grille
JBL-MTC-426NC new construction bracket
JBL-MTC-426MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| SKU Number |
JBL-C426LP |
