Name: JBL CBT 70J-1 Constant Beamwidth Technology™ Two-Way Line Array Column with Asymmetrical Vertical Cove
Brand: JBL
Price: 10197.49 SAR
Availability: InStock

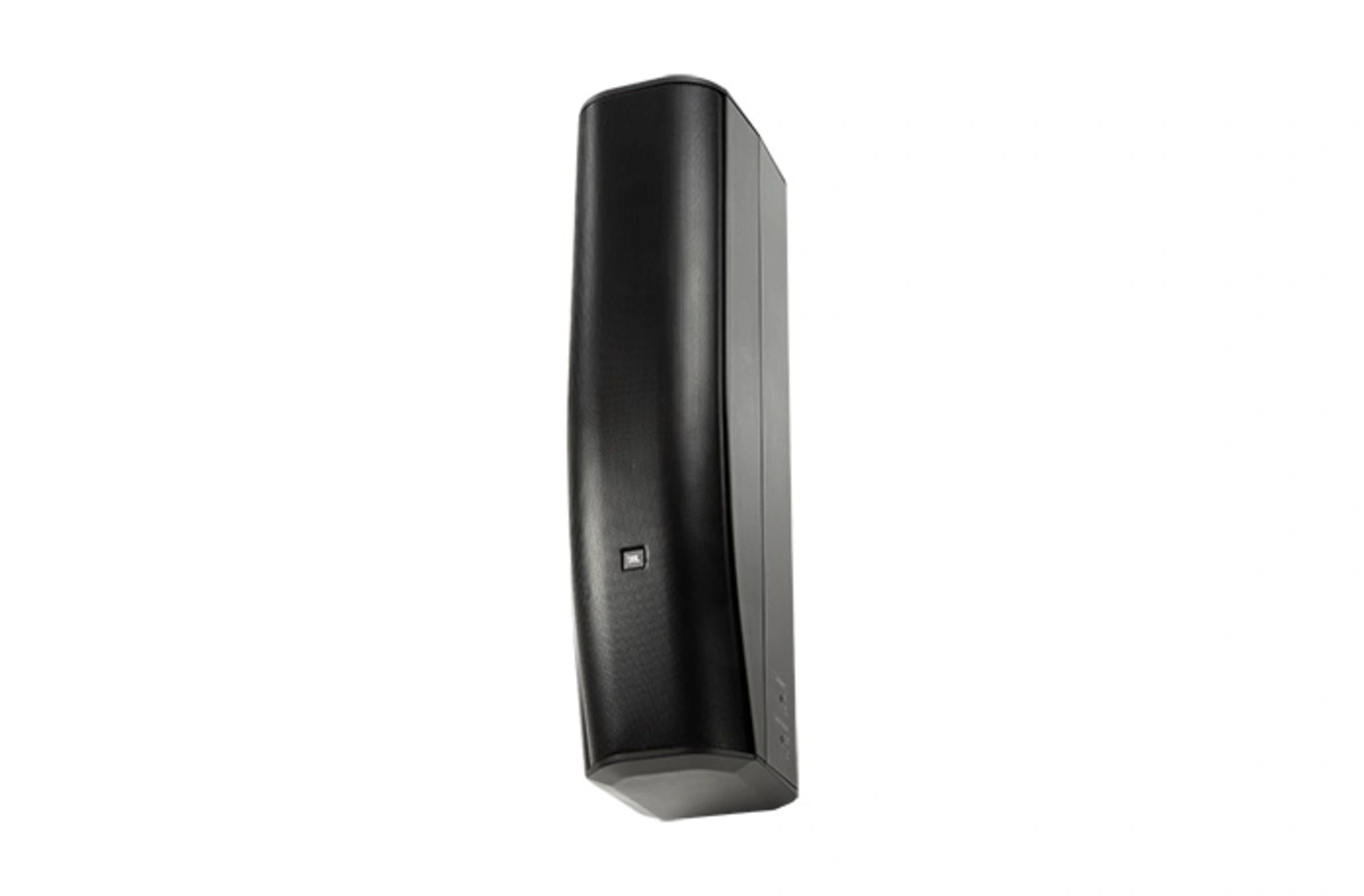

JBL CBT 70J-1 Constant Beamwidth Technology Two-Way Line Array Column front view showing LF and HF driver array

JBL CBT 70J-1 Constant Beamwidth Technology Two-Way Line Array Column back panel showing OmniMount-compatible mounting pattern

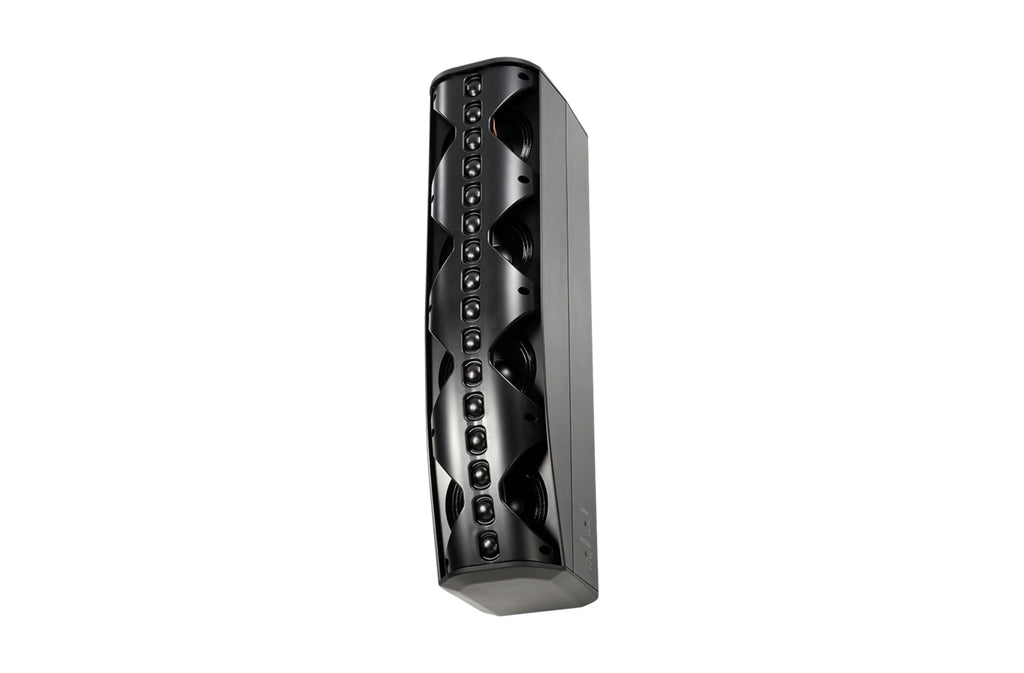

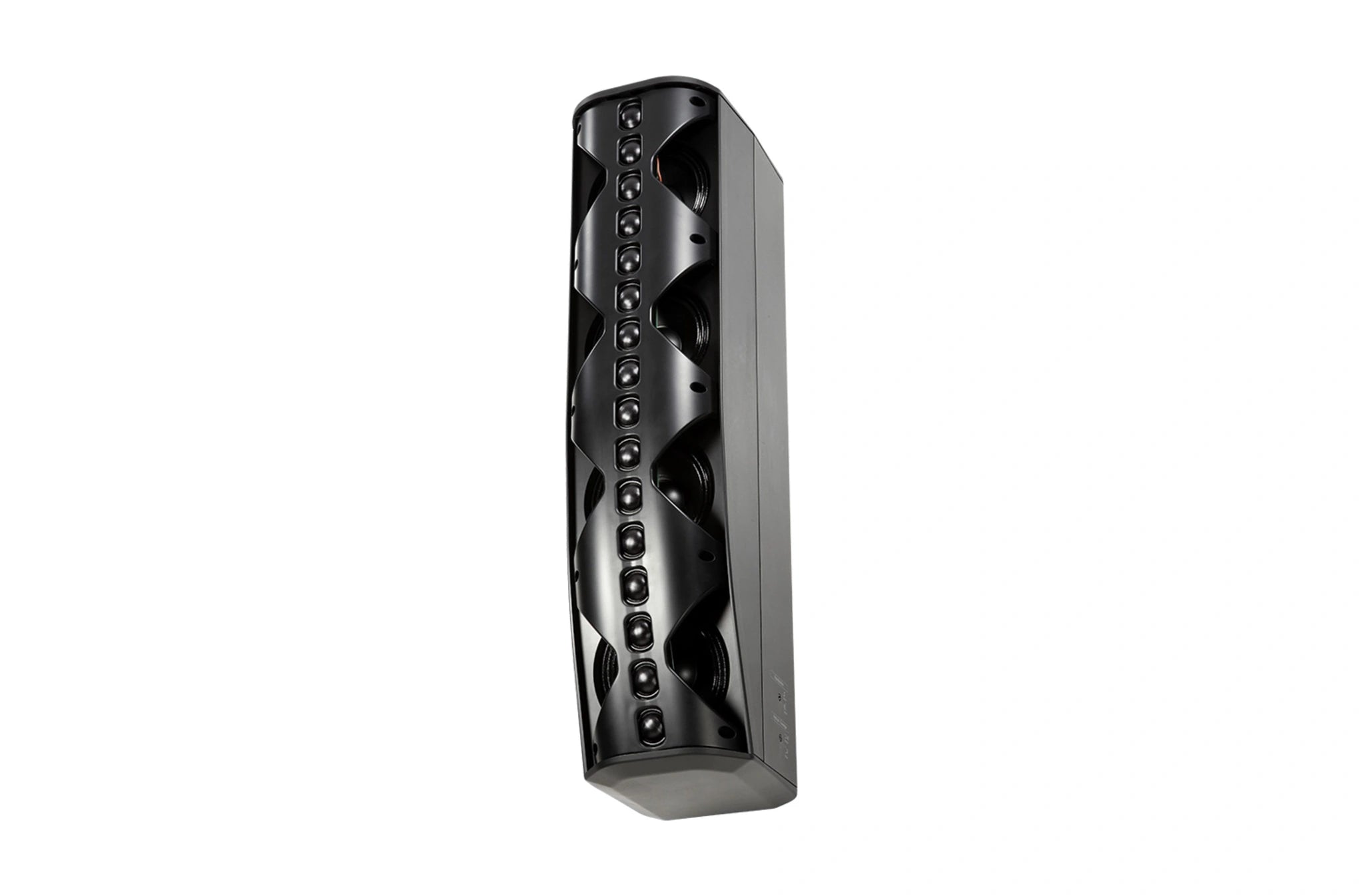

Front-facing JBL CBT 70J-1 Constant Beamwidth Technology Two-Way Line Array Column showing four 5-inch LF drivers and sixteen 1-inch HF drivers

JBL CBT 70J-1 Constant Beamwidth Technology Two-Way Line Array Column rear view showing M6 insert points

Close-up of JBL CBT 70J-1 Constant Beamwidth Technology Two-Way Line Array Column fiberglass reinforced ABS cabinet

Features

Asymmetrical vertical coverage sends more sound toward far area of room to make front-toback sound levels more consistent.
Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers,
arranged coaxially.
Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.

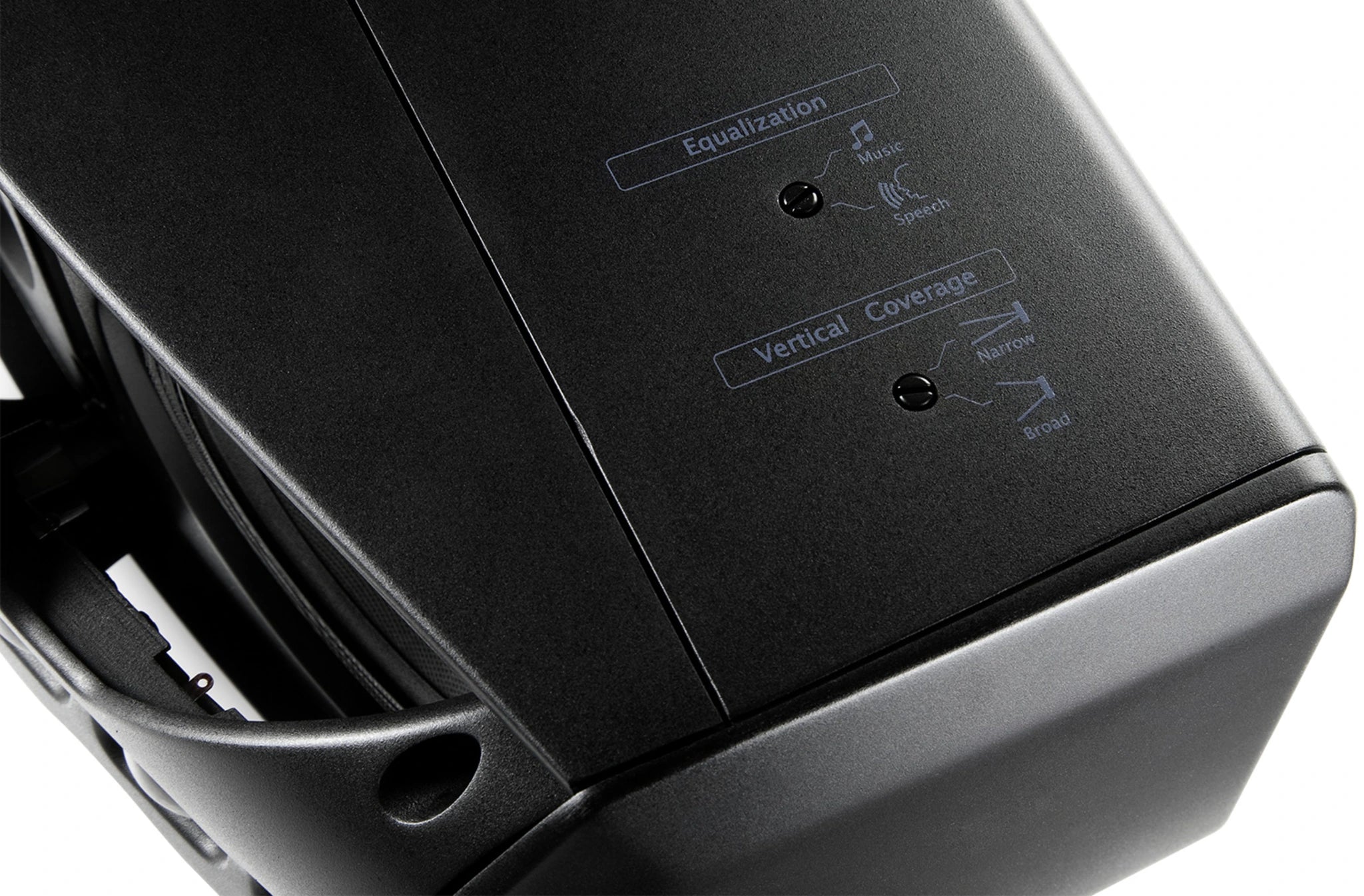

Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection of HF devices
Swivel (pan) / tilt wall bracket included.

Specifications

Specification	Details
Drivers	Four 130 mm (5 in) LF drivers Sixteen 25 mm (1 in) HF drivers
Frequency Range (-10dB)	60 Hz – 20 kHz
Coverage Angle	Vertical: Switchable — Narrow Mode: 25° (±10°), Broad Mode: 45° (±10°) Horizontal: 150° (±20°)
Sensitivity	Narrow: (speech mode) 98 dB (1 kHz – 8 kHz) / (music mode) 93 dB (300 Hz – 18 kHz) Broad: (speech mode) 96 dB (1 kHz – 8 kHz) / (music mode) 92 dB (300 Hz – 18 kHz)
Impedance	8 ohms; min impedance 4.0 ohms @ 1 kHz, 5.4 ohms @ 225 Hz
Power Capacity	500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs
Maximum SPL (1m)	Narrow: (speech mode) 125 dB cont avg (131 dB peak) / (music mode) 120 dB cont avg (126 dB peak) Broad: (speech mode) 123 dB cont avg (129 dB peak) / (music mode) 119 dB cont avg (125 dB peak)
Low Frequency Drivers	4 pcs, 130 mm (5 in), dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture/UV/salt resistance, shielded
High Frequency Drivers	16 pcs, 25 mm (1 in), dual magnet neodymium, encased magnet and coated diaphragm for moisture/UV/salt resistance, shielded
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture, and 200-hr ASTM G85 acid-air/salt-spray resistant.

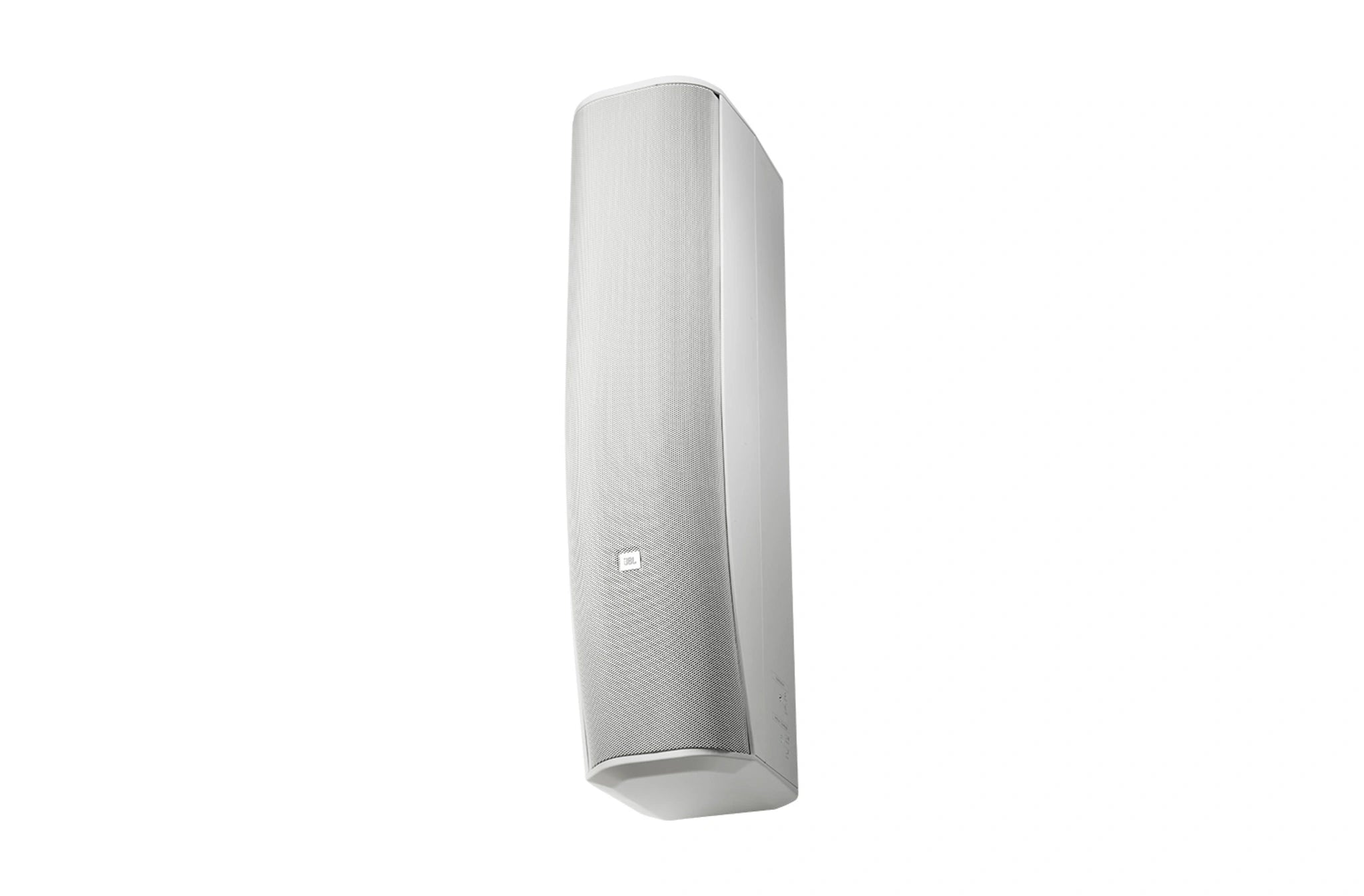

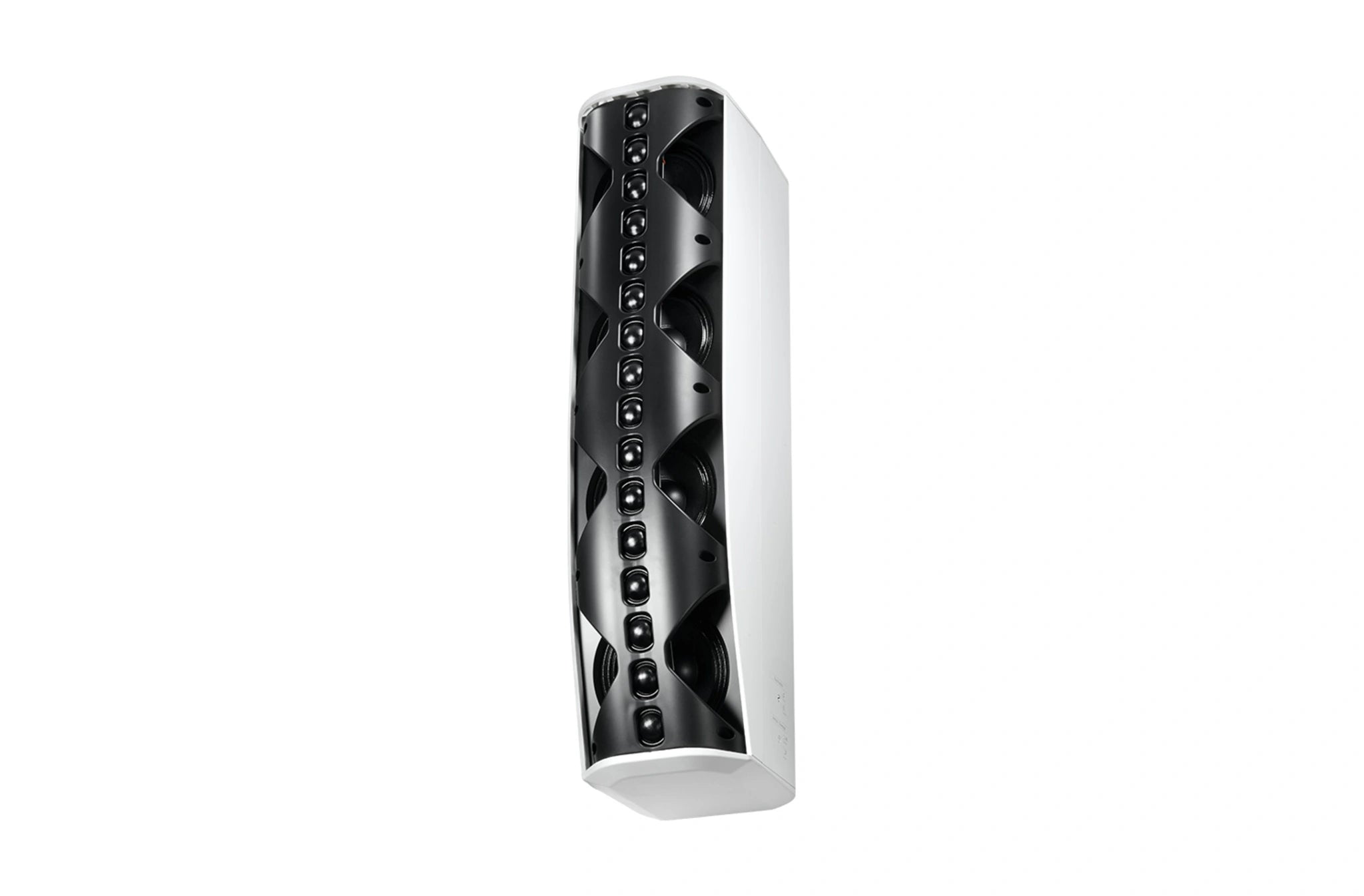

Color	Black or white (-WH)
Insert Points	10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel
Mounting	Included swivel (pan)/tilt wall bracket provides continuously variable ±80° left-right swivel aiming (at no up/down tilt), continuously variable ±15° tilt, plus 5° fixed increment points. Ten threaded mounting points on back panel conform to industry-standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount® 60.0 and other compatible third-party brackets. Threaded mounting points can also be used for suspension.
Dimensions (H x W x D)	694 x 170 x 237 mm (27.4 x 6.7 x 9.3 in)
Net Weight	9.5 kg (21 lb)
Included Accessories	Swivel (pan)/tilt wall bracket
Optional Accessories	MTC-PC2 terminal panel cover MTC-CBT-SMB1 stand-mount bracket for use with 35 mm heavy duty speaker stand MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
