| Frequency Range (-10dB) |
55 Hz – 20 kHz |
| Power Capacity |
112 W (448 W peak) cont. pink noise (2 hrs)
75 W (300 W peak) cont. pink noise power (100 hrs) |
| Sensitivity (1m/1W) |
88 dB |
| Coverage Angle |
120° conical |
| Maximum SPL (1m) |
108.5 dB cont. pink noise (114.5 dB peak) |
| Nominal Impedance |
8 ohms |

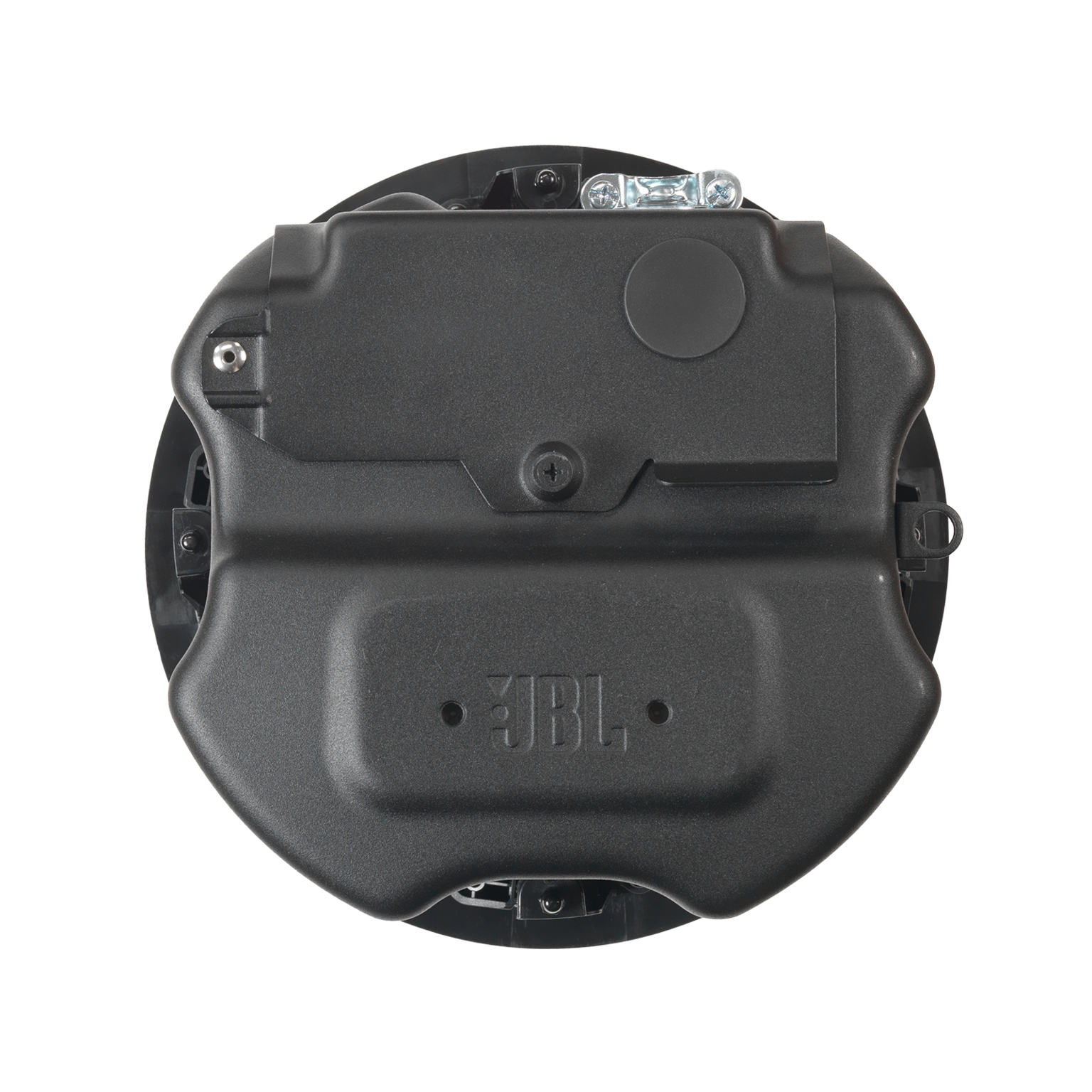

| Transformer Taps |
70V: 60 W, 30 W, 15 W, 7.5 W
100V: 60 W, 30 W, 15 W |
| Drivers |
LF: 130 mm (5.25 in) with treated paper cone and high-performance magnet
HF: 20 mm (0.75 in) soft-dome with neodymium magnet |
| Ceiling Cutout Size |
223 mm (8.8 in) |
| Dimensions |
255 mm (10.4 in) H x 260 mm (10.2 in) dia.
240 mm (9.6 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating |
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered transformer. |
| Environmental |
IP rating: IP33 per EN/IEC 60529
Operating temperature: 0°C to 45°C |
| Color |
Stock grille is white (RAL9003), paintable |
| Net Weight (each) |
4.3 kg (9.48 lb) |
| Shipping Weight (pair) |
13.83 kg (30.49 lb) |
| Optional Accessories |
JBL-MTC-445BG black (RAL9004) round grille
JBL-MTC-445SG white (RAL9003) square grille
JBL-MTC-426NC new construction bracket
JBL-MTC-426MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| SKU Number |
JBL-C445C/T |
