- Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent.

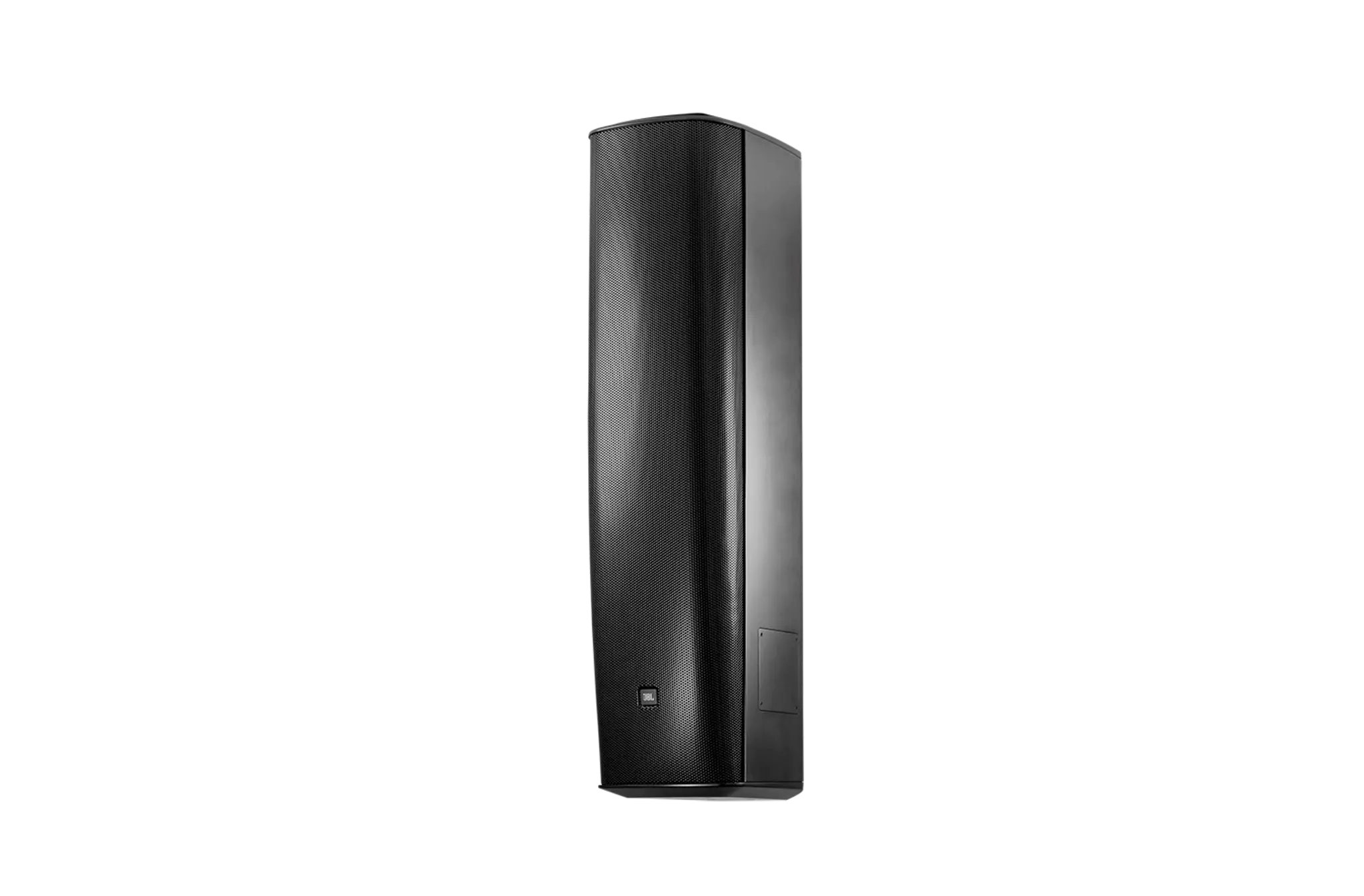

- Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and six (6) 165 mm (6-1/2”) high-excursion LF drivers arranged coaxially.
- Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out of coverage lobing.
- Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing.
- Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room.
- Single-speaker room coverage at high SPL, with little over-splash and strong bass response down to below 40 Hz.
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
- Swivel (pan)/tilt wall bracket included.
Description
Features
| Specification | Details |
|---|---|
| Drivers | Six (6) 165 mm (6.5 in) LF drivers Twenty-four (24) 25 mm (1 in) HF drivers |
| Frequency Range (-10dB) | 45 Hz – 20 kHz |
| Sensitivity | 102 dB (at highest sensitivity setting: "Point" pattern up, "Point" pattern down, "Speech" voicing, in free space) 95 dB (at lowest sensitivity setting: "Medium" pattern up, "Downfill" pattern down, "Music" voicing, in free space) |
| Impedance | 4 ohms (4 ohms above 1 kHz; 8 ohms below 800 Hz) |
| Power Capacity | 1500 W (6000 W peak), 2 hrs 900 W (3600 W peak), 100 hrs |
| Maximum Input Voltage | 65.0 V RMS (2 hrs), 130.0 V peak |
| Maximum SPL (1m) | Highest directivity setting ("Point" pattern up, "Point" pattern down) with "Speech" voicing: 131 dB continuous average pink noise, 134 dB continuous program, 137 dB peak |
| Coverage Angle | Vertical: separate four top and four bottom selections. Horizontal: tapered 100° to 160°. Consult spec sheet for details. |
| Recommended High-Pass | 35 Hz, 24 dB/oct or greater |
| Low Frequency Drivers | 6 pcs, 165 mm (6.5 in), lightweight neodymium motors, 50 mm (2.0 in) diameter voice coils, copper-capped pole tips to minimize flux modulation and linearize inductance, 16 mm (0.63 in) long coil for high linear drive and power handling, damped blended textile surround, coated cones for moisture/UV/salt resistance. Magnetically shielded. |
| High Frequency Drivers | 24 pcs, 25 mm (1 in), neodymium, encased magnet and coated diaphragm for moisture/UV/salt resistance |
| Enclosure | Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille |
| Outdoor Capability | IP-55 rated, per IEC529, when installed with optional MTC-PC2 cover. ASTM G85 for acid-air/salt-spray (200 hrs). |
| Color | Black (RAL9004) or white (-WH) (RAL9016) |

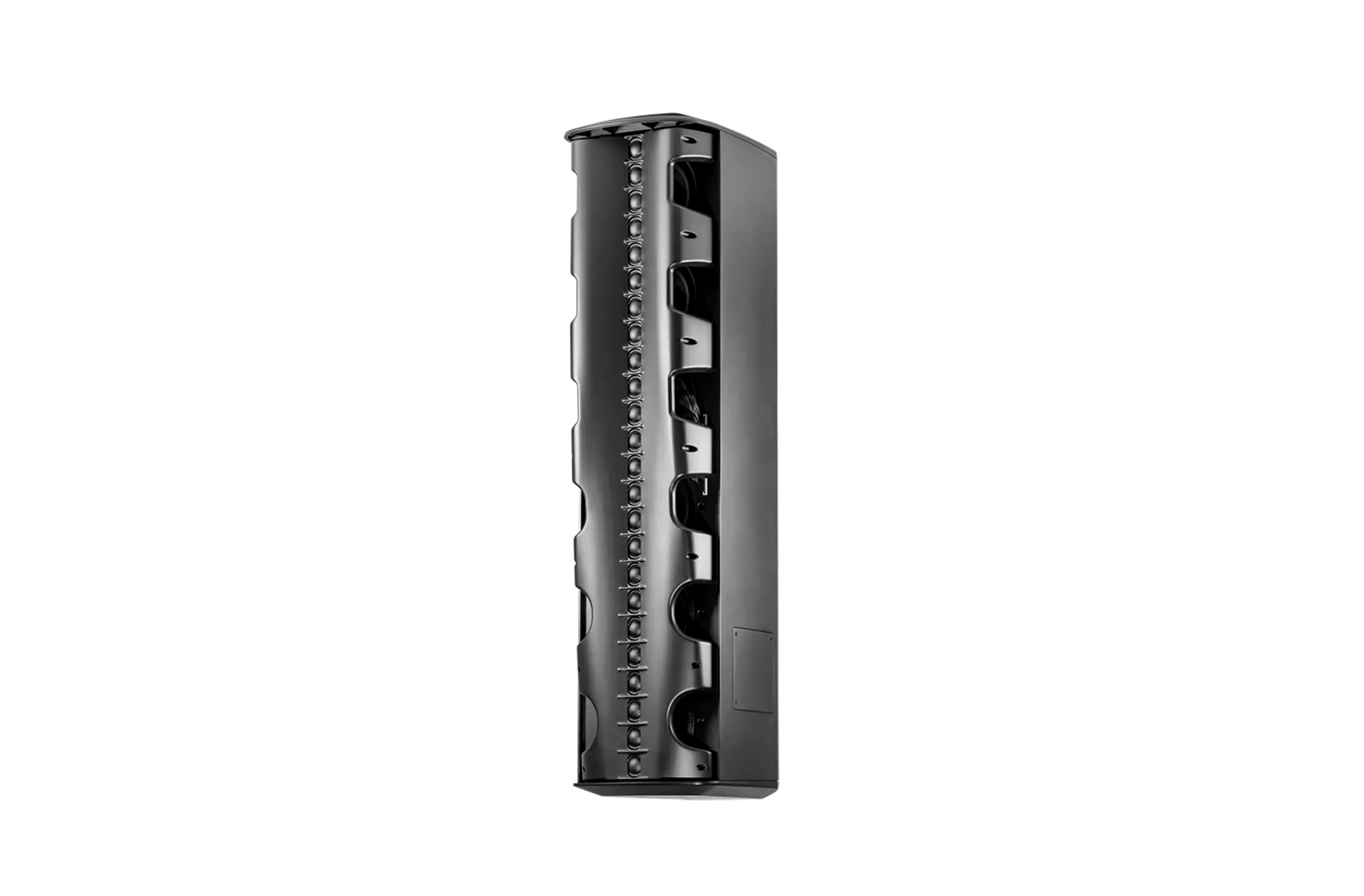

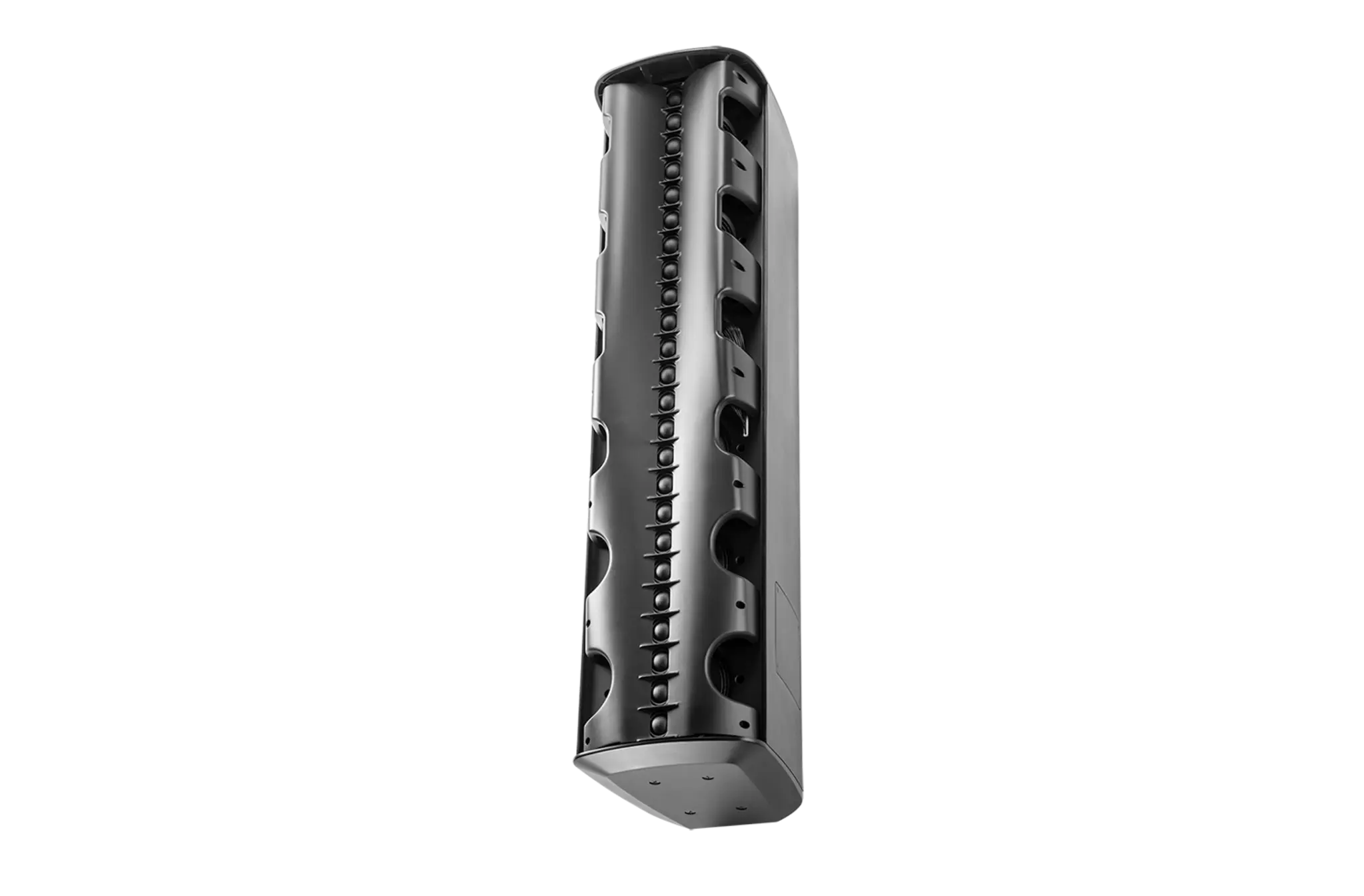

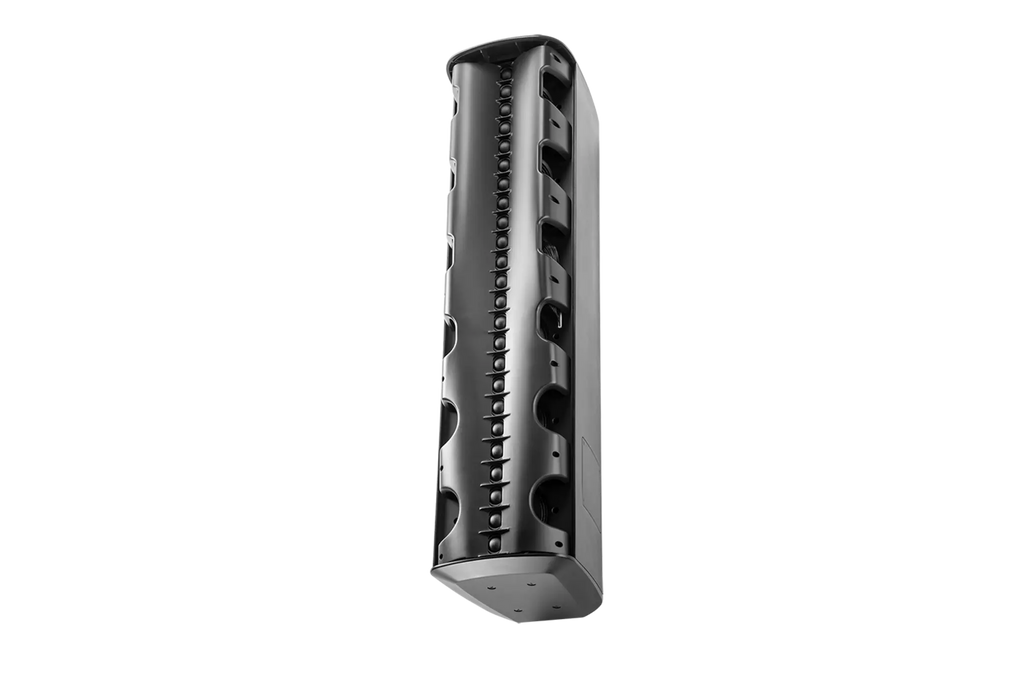

| Insert Points | 14 individual M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket(s), forged-shoulder steel eyebolts, swivel rings, and after-market third-party brackets, plus 4 individual M8 inserts on top and 4 on bottom of cabinet end-caps |
| Mounting | Included two-part swivel (pan)/tilt wall bracket provides continuously variable ±45° left-right swivel aiming (at no up/down tilt), ±15° tilt in 1° fixed increment points. Fourteen threaded mounting points on back panel conform to industry-standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for legacy OmniMount® and other compatible third-party brackets. Four threaded mount points on top end-cap and four on bottom end-cap. Threaded mounting points can also be used for suspension (always use multiple mounting points). |
| Dimensions (H x W x D) | 1020 x 250 x 345 mm (40.2 x 9.9 x 13.6 in) |
| Net Weight (cabinet) | 24.5 kg (54 lb) |
| Shipping Weight | 38.6 kg (85 lb) |
| Included Accessories | Two-piece swivel (pan)/tilt wall bracket |

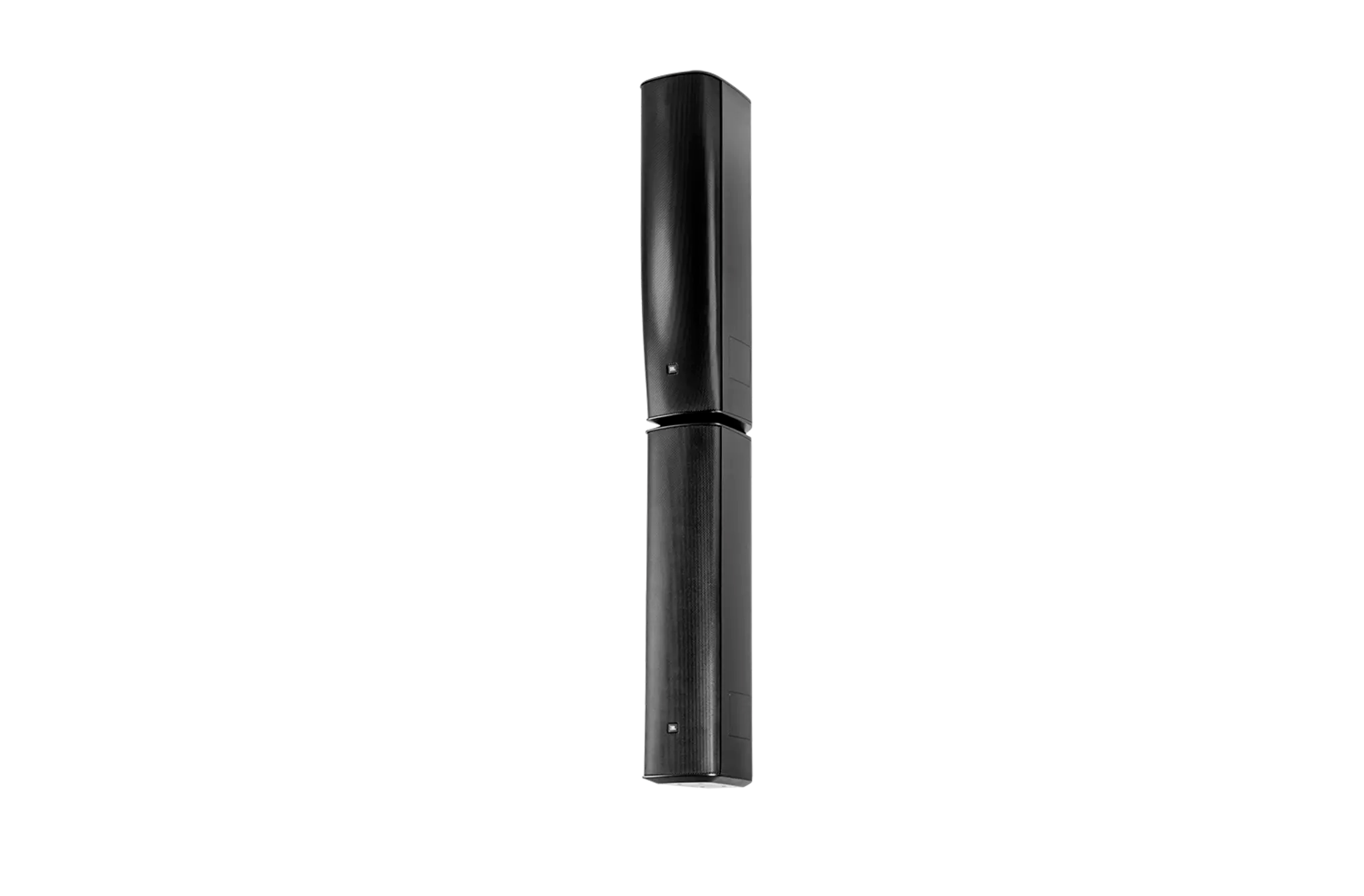

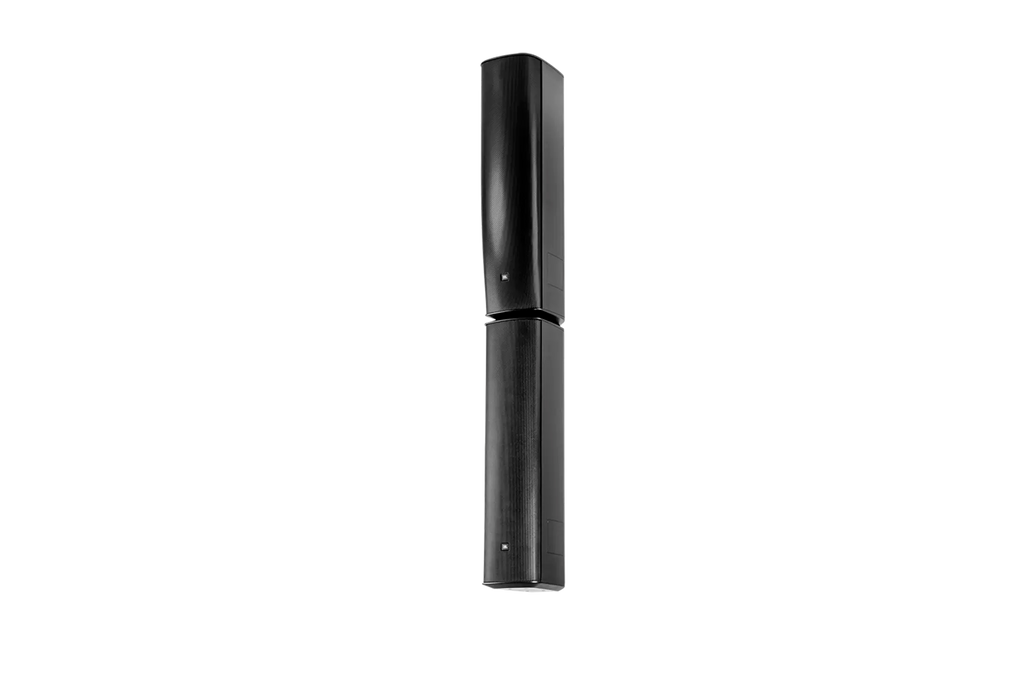

| Optional Accessories | MTC-PC2 terminal panel cover CBT1K-ACC1 accessory kit, includes: 2 pcs MTC-CBT-FM3 flush-mount brackets; 1 pc MTC-CBT-OS3 offset bracket (for CBT 1000+1000E array — works with CBT 1000E's included coupler plate to locate the extension cabinet above CBT 1000 instead of below it); MTC-CBT-SUS3 CBT series suspension bracket kit (2 pcs, providing top and bottom attachment points) |
